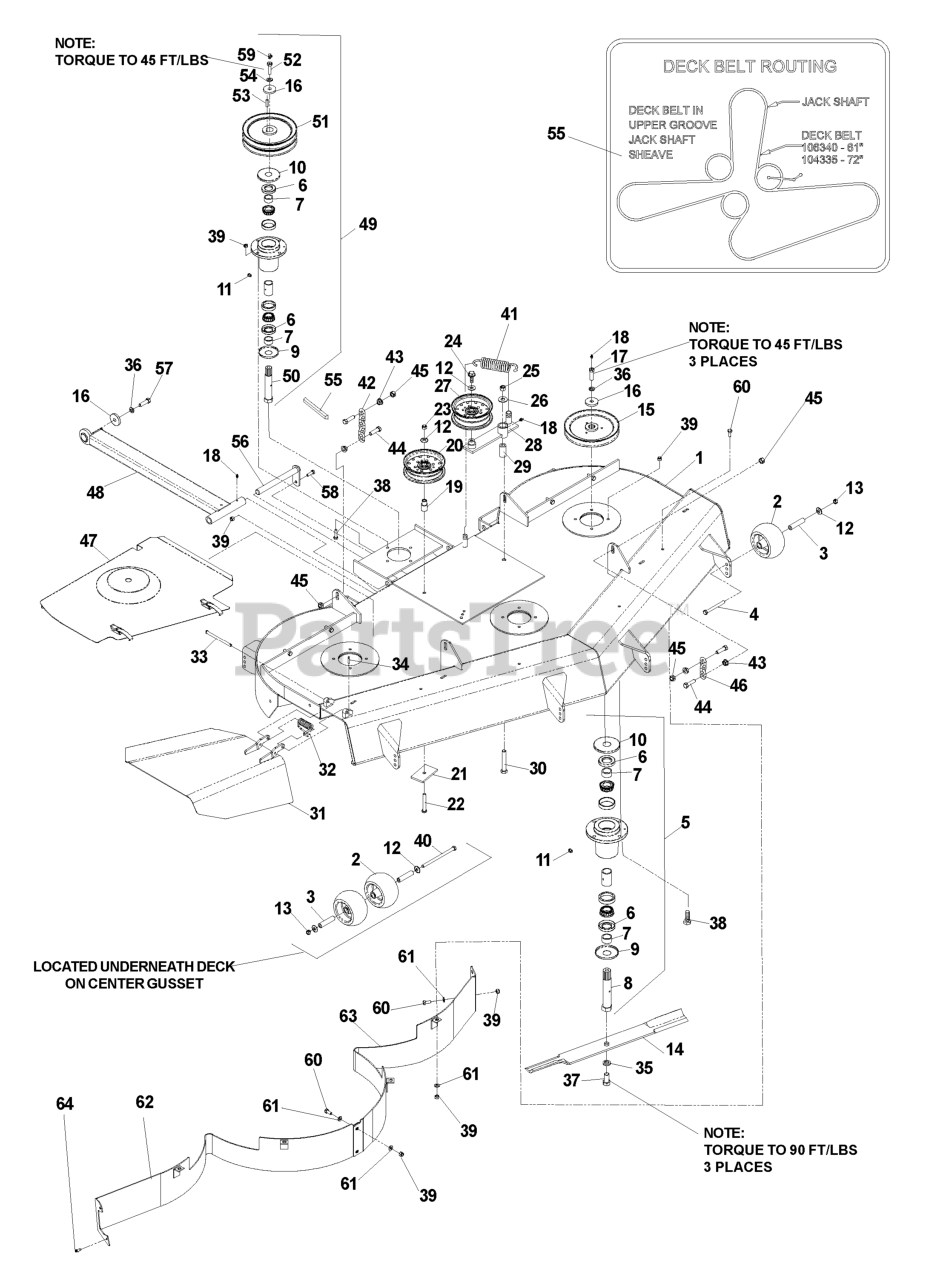

BZ 7234 (968999264) - Husqvarna 72" Zero-Turn Mower (2005-01) Deck Assembly Parts Diagram

72" Zero-Turn Mower

Deck Assembly Parts Diagram

  • Title

1

Husqvarna 539111429

DECK W/DECALS

$

$

Not available

2

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

3

Husqvarna 539102698

BUSHING

$

$

Not available

4

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

5

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

6

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

7

Husqvarna 539108758

SPACER

$

$

Not available

8

Husqvarna 539108761

SPLINED SHAFT - 72"
(Superseded to 539112123)

$

$

Not available

9

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

14

Husqvarna 539105476

BLADE OEM - 25"

$39.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107279

RP PULLEY - 72"
(Superseded to 539112126)

$

$

Not available

16

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

17

Husqvarna 539108766

DRILLED BOLT 7/16-20 X 1 1/2"
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

18

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

20

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

21

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

22

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

25

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

28

Husqvarna 539103230

IDLER ARM

$

$

Not available

29

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

30

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

31

Husqvarna 539109428

72 CHUTE - PAINTED

$182.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539110737

SPRING - TORSION

$15.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539110739

PIN - CLEVIS 5/16 DIA X4.69 ZD

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

35

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

36

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

37

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

38

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539105422

BOLT 3/8 X 6" GRD 8

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539105192

DECK SPRING

$

$

Not available

42

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

44

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

46

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539110743

72 BELT SHIELD ASM - RH

$242.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539110744

72 BELT SHIELD ASM LH

Note: (Not shown)

$218.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539110725

STRUT WELDMENT

$84.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539108768

JACKSHAFT ASSY LOWER
(Superseded to 539112263)

$789.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539108767

JACKSHAFT SPINDLE

$103.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539106346

SHEAVE WSL

$

$

Not available

52

Husqvarna 539108766

DRILLED BOLT 7/16-20 X 1 1/2"
(Superseded to 539112120)

$30.99

$

In Stock, only 1 left!

0

53

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

54

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

55

Husqvarna 539104335

BELT, DECK
(Superseded to 522795901)

$109.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539105480

PIN WELDMENT

$36.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

58

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539912758

ZERK

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 539111627

72 FRONT BAFFLE RH WLDT

$339.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539111629

72 FRONT BAFFLE LH WLDT

$339.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539105532

HEX CAP SCREW 1/4

$3.99

$

Usually ships in 3-10 days

0
