BZ 6134 D (968999214) - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-11) Deck Lift (Manual) Parts Diagram

61" Zero-Turn Mower

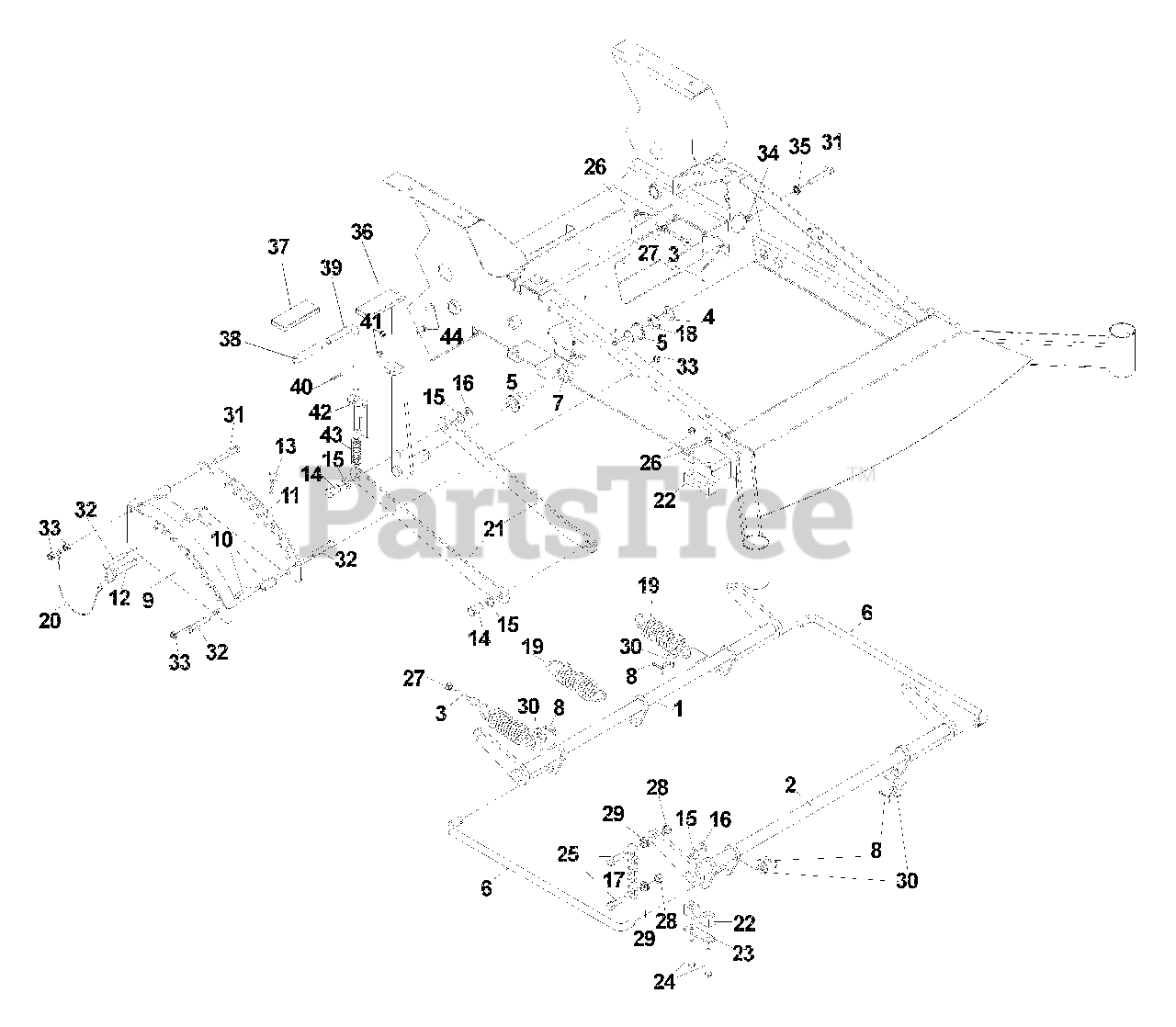

Deck Lift (Manual) Parts Diagram

  • Title

1

Husqvarna 539108354

Shaft, lift, rear

$103.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108355

Shaft, lift, front

$

$

Not available

3

Husqvarna 539101982

Eyebolt, right

$43.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101802

E-ring, 7/8

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101232

Bushing, flanged-PM

$13.99

$

In Stock, Qty 7

0

6

Husqvarna 539104310

Link, connecting

$21.99

$

In Stock, only 1 left!

0

7

Husqvarna 539104761

Zerk, long

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990654

Pin, cotter, 5/32 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104321

Adjustment plate

$61.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104530

Spacer

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539104323

Adjustment plate

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102526

Lift pin

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976989

Hairpin, #4

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105060

Pin, clevis

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539991043

Bushing, machine, 5/8

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105069

E-ring, 5/8

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102641

Lift chain

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539923787

Bushing, machine, 7/8

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 539104760

Spring, extension

$

$

Not available

20

Husqvarna 539105059

Lanyard

$10.99

$

In Stock, only 1 left!

0

21

Husqvarna 539105050

Lift linkage

$23.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104808

Pillow block

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539104807

Bar, reinforcement
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

24

Husqvarna 539991046

Bolt, 5/16-18 x 2 1/2

$4.99

$

In Stock, Qty 8

0

25

Husqvarna 539101175

Bolt, 7/16-14 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990184

Nut, 5/16-18, centerlock

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990585

Nut, 5/16-18, serrated washer

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990839

Nut, 7/16-14, centerlock

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 539102582

Nut, 7/16-14, whiz

$

$

Not available

30

Husqvarna 539976982

Washer, 5/8

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990637

Bolt, 3/8-16 x 2 1/2

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990629

Bolt, 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990546

Nut, 3/8-16, centerlock

$

$

Not available

34

Husqvarna 539976979

Nut, 3/8-16, nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990613

Nut, 3/8-16, serrated washer

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539108322

Lever

$103.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539102515

Grip

$

$

Not available

38

Husqvarna 539101050

Grip

$3.99

$

In Stock, only 4 left!

0

39

Husqvarna 539104523

Pin

$

$

Not available

40

Husqvarna 539106532

Pin, 3/16 x 1 1/4, grooved

$3.99

$

In Stock, Qty 5

0

41

Husqvarna 539990761

Nut, 1/4-20, centerlock

$4.99

$

In Stock, only 4 left!

0

42

Husqvarna 539103534

Pin mt, upper

$27.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539101058

Spring

$4.99

$

In Stock, only 2 left!

0

44

Husqvarna 539990580

Bolt, 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539106345

Plug

Note: (Not shown)(Top of Right Console)

$3.99

$

Usually ships in 3-10 days

0
