BZ 6134 D (968999214) - Husqvarna 61" Zero-Turn Mower (2003-03) Radiator 34 H.P. Parts Diagram

61" Zero-Turn Mower

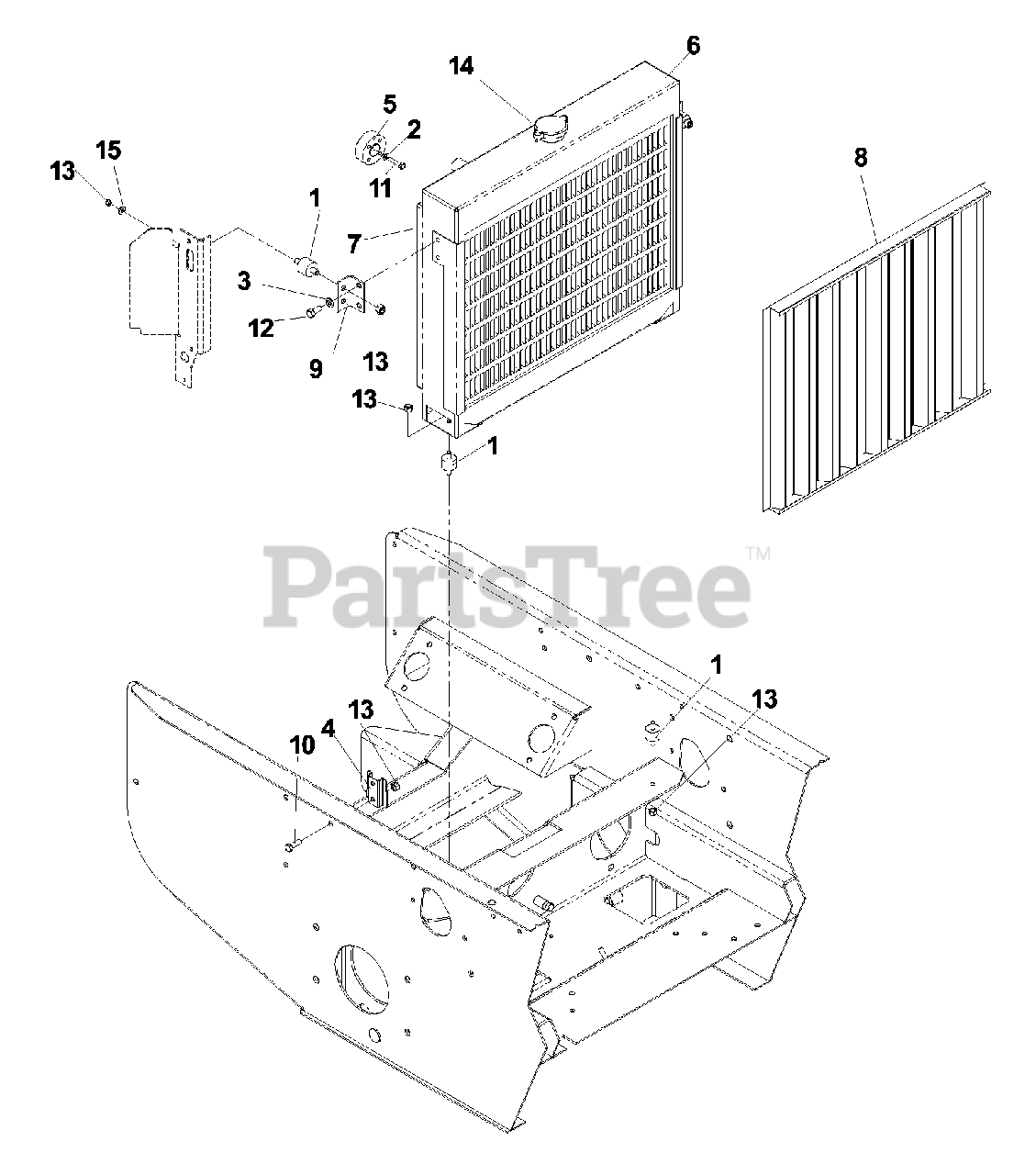

Radiator 34 H.P. Parts Diagram

  • Title

1

Husqvarna 539106310

Isolator

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990052

Lockwasher, 1/4

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539990187

Lockwasher, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

4

Husqvarna 539107855

Bracket, mounting

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539107995

Spacer, fan

$

$

Not available

6

Husqvarna 539106316

Radiator

$

$

Not available

7

Husqvarna 539106317

Shroud

$

$

Not available

8

Husqvarna 539106318

Debris guard

$182.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106297

Bracket, isolator

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990209

Bolt, 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539300599

Bolt, M6-1 x 40

$

$

Not available

12

Husqvarna 539976934

Bolt, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990717

Nut, 5/16-18
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539106320

Cap, radiator

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990188

Washer, 5/16,SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 539106321

Clamp, hose

Note: (not shown)

$

$

Not available

Husqvarna 539106326

Hose, lower

Note: (not shown)

$66.99

$

Usually ships in 3-10 days

0

Husqvarna 539106325

Hose, upper

Note: (not shown)

$54.99

$

Usually ships in 3-10 days

0

Husqvarna 539106402

Overflow reservoir

Note: (not shown)

$

$

Not available

Husqvarna 539106322

Drain, radiator

Note: (not shown)

$

$

Not available
