BZ 6134 D (968999214) - Husqvarna 61" Zero-Turn Mower (2003-03) Engine Assembly 34 H.P. Parts Diagram

61" Zero-Turn Mower

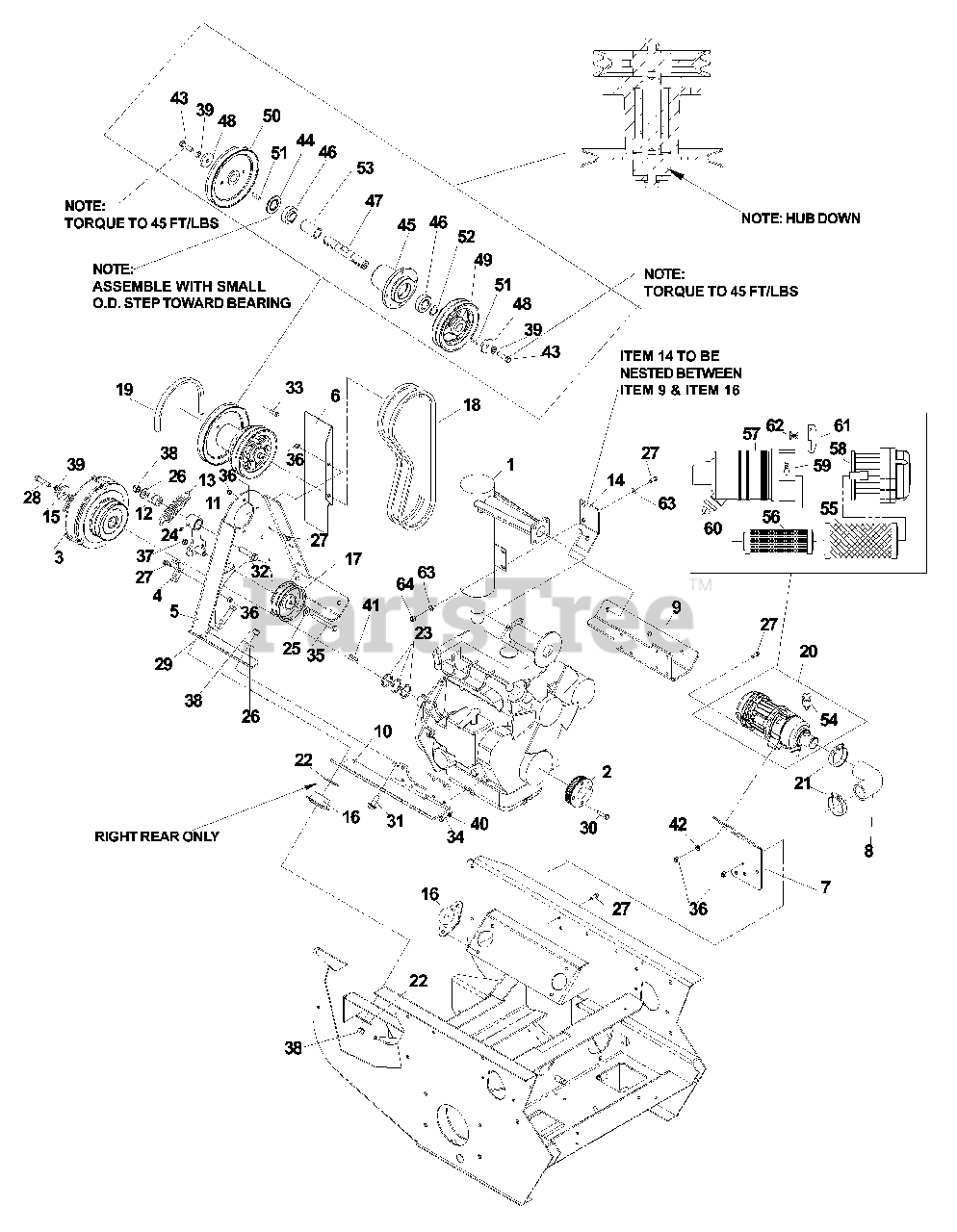

Engine Assembly 34 H.P. Parts Diagram

  • Title

1

Husqvarna 539107747

Muffler
(Superseded to 539111901)

$485.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539106335

Sheave, engine

$

$

Not available

3

Husqvarna 539106329

Clutch
(Superseded to 539110668)

$2185.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539108054

Restraint
(Superseded to 539111433)

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106306

Jack mount

$236.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539107864

Shield, heat

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107841

Bracket, air filter

$48.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106381

Hose

$35.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107861

Engine mount, left

$47.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107862

Engine mount, right

$51.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539106422

Arm

$

$

Not available

12

Husqvarna 539106417

Bushing

$

$

Not available

13

Husqvarna 539103256

Spring

$12.99

$

In Stock, Qty 6

0

14

Husqvarna 539108200

Muffler mount

$8.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539106504

Washer, heavy

$

$

Not available

16

Husqvarna 539106291

Isolator mount, engine

$46.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107994

Idler
(Superseded to 539111567)

$

$

Not available

18

Husqvarna 539106338

Belt, primary (matched set only)
(Superseded to 539111569)

$

$

Not available

19

Husqvarna 539106339

Belt, mule

$

$

Not available

20

Husqvarna 539106315

Air filter assembly

$311.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106383

Clamp

$

$

Not available

22

Husqvarna 539104959

Isolator washer

$15.99

$

In Stock, only 1 left!

0

23

Husqvarna 539108052

Bushing, machine, 1 1/8 x 10 ga.

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990122

Washer, 3/8,SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990550

Washer, 1/2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976934

Bolt, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539991120

Bolt, 7/16- 20 x 2 1/2

$6.99

$

In Stock, Qty 8

0

29

Husqvarna 539101332

Bolt, 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

30

Husqvarna 539977692

Bolt, M8-1.25 x 35

$0.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990622

Bolt, 1/2-13 x 1 1/4, serrated head

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539108346

Bolt, 1/2-13 x 2 1/2

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

Bolt, 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539300600

Bolt, M8 x 1.25 x 20

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539108271

Bolt, 3/8-16 x 3 1/2

$5.99

$

In Stock, Qty 8

0

36

Husqvarna 539990717

Nut, 5/16-18, nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539976979

Nut, 3/8-16, nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539101331

Nut, 1/2-13, nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990247

Lockwasher, 7/16

$

$

Not available

40

Husqvarna 539990187

Lockwasher, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 539100152

Key, 1/4 sq. x 1 7/8

$3.99

$

In Stock, Qty 5

0

42

Husqvarna 539990692

Washer, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539100141

Bolt, 7/16-20 x 1 1/2

$

$

Not available

44

Husqvarna 539107272

Combo spacer

$3.99

$

In Stock, only 3 left!

0

45

Husqvarna 539104852

Housing

$

$

Not available

46

Husqvarna 539102677

Bearing
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

47

Husqvarna 539106344

Spindle

$68.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539106504

Washer, heavy

$

$

Not available

49

Husqvarna 539106347

Sheave

$61.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539105485

Pulley

$54.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539101995

Key, 1/4" sq. x 1 1/8"

$

$

Not available

52

Husqvarna 539102244

Machine bushing, 18 ga

$5.99

$

In Stock, only 3 left!

0

53

Husqvarna 539102676

Spacer

$13.99

$

In Stock, Qty 5

0

54

Husqvarna 539106375

Indicator, air filter

$23.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539106313

Air filter

$66.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539106377

Safety element

$60.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539108471

Body

$109.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539108473

Precleaner assembly

$

$

Not available

59

Husqvarna 539108474

Mounting bracket

$28.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539108472

S-drain

$30.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539108475

Clamp

$15.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539108476

Hinge

$15.99

$

Usually ships in 3-10 days

0

Husqvarna 539106327

Stub shaft

Note: (Not shown)

$

$

Not available

63

Husqvarna 539102593

Washer, 3/8, spring

$3.99

$

In Stock, only 4 left!

0

64

Husqvarna 539990585

Nut, 5/16-18

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539109177

Manifold gasket

Note: (Not Shown)

$51.99

$

Usually ships in 3-10 days

0
