BZ 6127 D BF (968999369) - Husqvarna 61" Zero-Turn Mower (2005-08) Fuel System Parts Diagram

61" Zero-Turn Mower

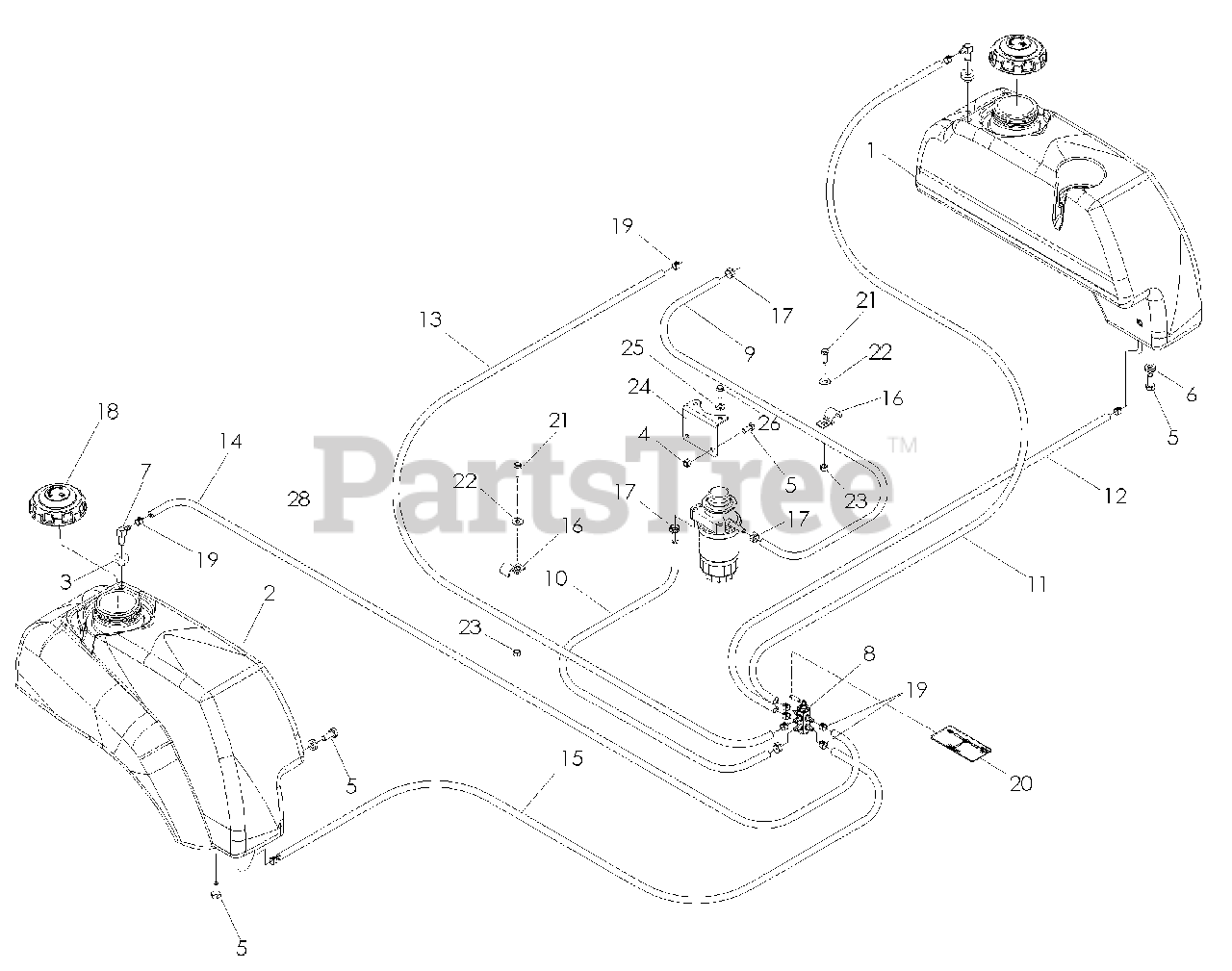

Fuel System Parts Diagram

  • Title

1

Husqvarna 539105329

FUEL TANK, LT

$205.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105330

FUEL TANK, RT

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105245

GROMMET

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101704

WASHER 5/16 SEALING

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539105244

ELBOW

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539105331

FUEL VALVE

$103.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108206

FUEL LINE

$

$

Not available

10

Husqvarna 539108207

FUEL LINE

$

$

Not available

11

Husqvarna 539108208

FUEL LINE

$

$

Not available

12

Husqvarna 539108209

FUEL LINE

$

$

Not available

13

Husqvarna 539108210

FUEL LINE

$

$

Not available

14

Husqvarna 539108211

FUEL LINE

$

$

Not available

15

Husqvarna 539108212

FUEL LINE

$2.49

$

In Stock, Qty 5

0

16

Husqvarna 539107863

CLIP

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105529

CLAMP

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 539106330

CAP, DIESEL FUEL

$48.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539105334

DECAL, FUEL VALVE

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990598

WASHER 1/4 FLAT STD

$

$

Not available

23

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 539107840

BRACKET, MOUNTING

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990187

WASHER 5/16 SLOTTED LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539300600

HCS M8-1.25 x 20mm

$3.99

$

Usually ships in 3-10 days

0
