BZ 6127 D (968999262) - Husqvarna 61" Zero-Turn Mower (2005-08) Seat Parts Diagram

61" Zero-Turn Mower

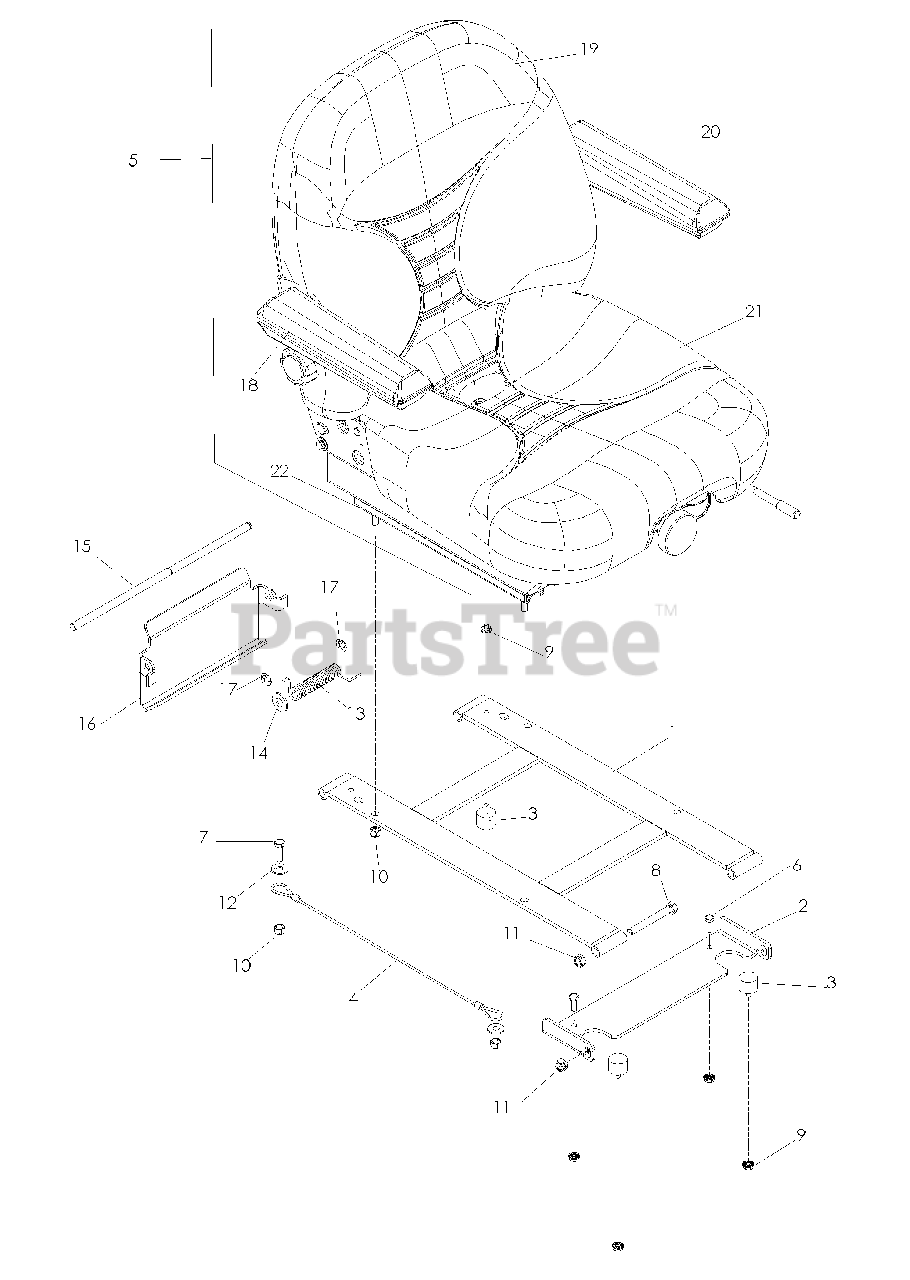

Seat Parts Diagram

  • Title

1

Husqvarna 539111564

MOUNT, SEAT

$80.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105038

BRACKET SEAT
(Superseded to 539105224)

$30.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105039

STUD, PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539103247

LANYARD, SEAT

$21.99

$

In Stock, only 2 left!

0

5

Husqvarna 539130874

SEAT, SUSPENSION

$

$

Not available

6

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101341

HCS 3/8-16 x3

$5.99

$

In Stock, Qty 12

0

9

Husqvarna 539108735

NUT 1/4-20 WHIZLK

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990546

NUT 3/8-16 HEX CTRLK

$

$

Not available

12

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539110645

SPRING, TORSION

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539111563

PIN

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539111562

LATCH

$18.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990870

RETAINING RING

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 539108717

ARMREST KIT, RT

$145.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539108719

BACK CUSHION KIT

$131.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108716

ARMREST KIT, LT

$145.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539108718

SEAT CUSHION KIT

$303.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108720

SLIDE KIT, SEAT ADJUSTMENT

$83.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108745

SWITCH-SNAP MOUNT KIT

Note: NOT SHOWN

$

$

Not available

22

Husqvarna 539111434

BACK, HARD PLASTIC PREM SEAT

Note: NOT SHOWN

$

$

Not available
