BZ 6127 D (968999262) - Husqvarna 61" Zero-Turn Mower (2005-08) Mower Lift / Deck Lift Parts Diagram

61" Zero-Turn Mower

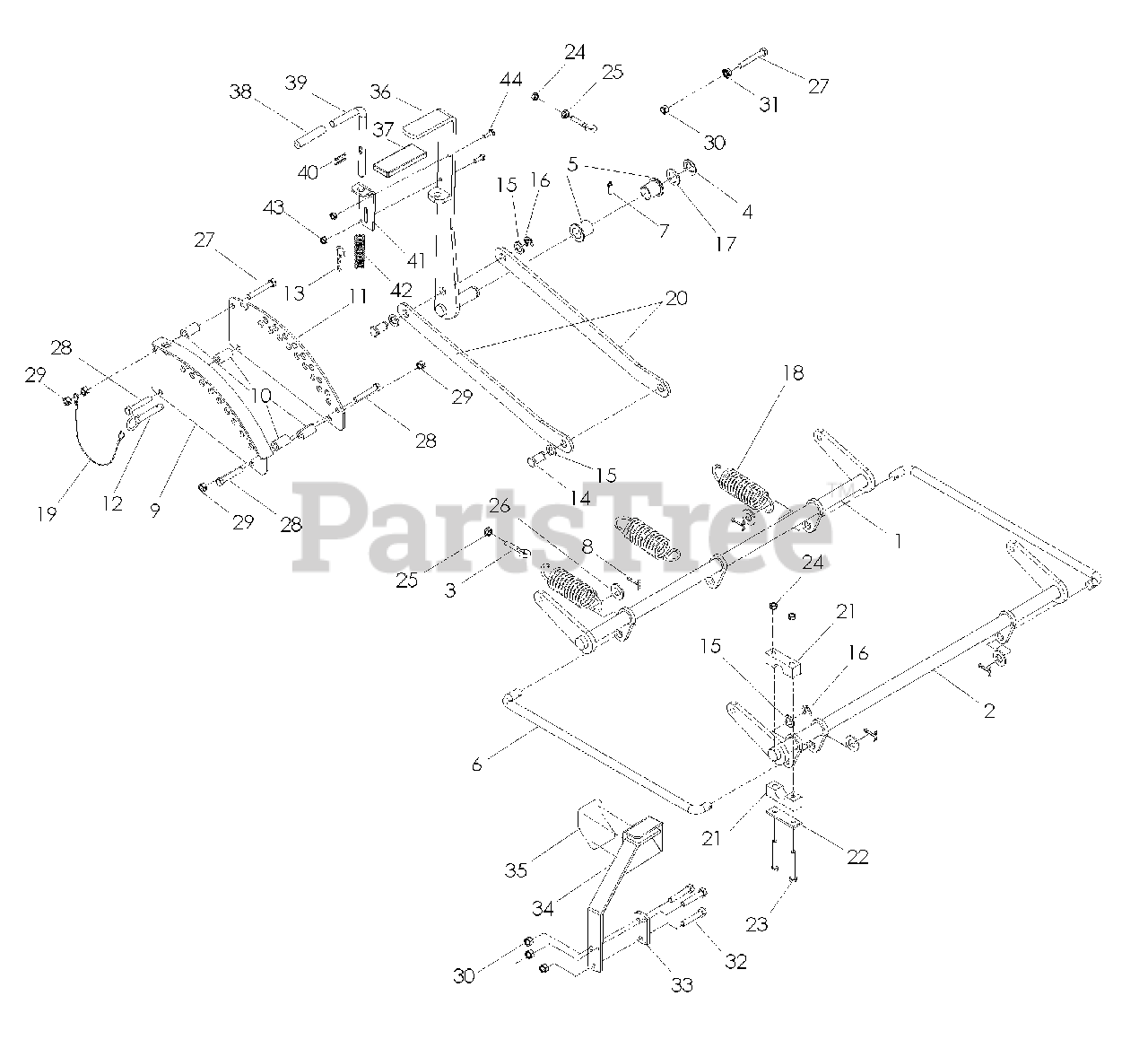

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539108354

LIFT SHAFT ASSEM, REAR

$103.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108355

LIFT SHAFT ASM, FRONT

$

$

Not available

3

Husqvarna 539101982

EYEBOLT

$43.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101802

E-RING .875

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

6

Husqvarna 539104310

CONNECTING LINK

$21.99

$

In Stock, only 1 left!

0

7

Husqvarna 539104761

ZERK, LONG

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990654

COTTER PIN 5/32 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104321

ADJUSTMENT PLATE

$61.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104530

SPACER

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539104323

ADJUSTMENT PLATE

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102526

LIFT PIN

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539991043

BUSHING, .625 MACHINE

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105069

E-RING .625

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539923787

BUSHING, .875 MACHINE

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 539104760

SPRING, EXTENSION

$

$

Not available

19

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 539105050

LIFT LINKAGE

$23.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

23

Husqvarna 539991046

HCS 5/16-18 x 2 1/2

$4.99

$

In Stock, Qty 8

0

24

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990585

NUT 5/16-18 WHIZ

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976982

WASHER 5/8 SAE FLAT

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990637

HCS 3/8-18 x2 1/2

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990629

HCS 3/8-16 x2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990546

NUT 3/8-16 HEX CTRLK

$

$

Not available

30

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990655

HCS 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539105184

PLATE, TIGHTENING

$46.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539105181

LIFT PEDAL

$

$

Not available

35

Husqvarna 539105187

PAD, ANTI-SKID

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 539108322

LIFT LEVER WLDMT

$103.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539102515

HANDLE CUSHION

$

$

Not available

38

Husqvarna 539101050

VINYL GRIP

$3.99

$

In Stock, only 4 left!

0

39

Husqvarna 539104523

L PIN 1/2 x 6 1/2

$

$

Not available

40

Husqvarna 539106532

PIN, GROOVED

$3.99

$

In Stock, Qty 5

0

41

Husqvarna 539103534

PIN MOUNT, UPPER

$27.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101058

SPRING,COMPRESSION

$4.99

$

In Stock, only 2 left!

0

43

Husqvarna 539990761

NUT 1/4-20 HEX CTRLK

$4.99

$

In Stock, only 4 left!

0

44

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0
