BZ 6127 D (968999218) - Husqvarna 61" Zero-Turn Mower (2003-03) Main Frame Assembly Parts Diagram

61" Zero-Turn Mower

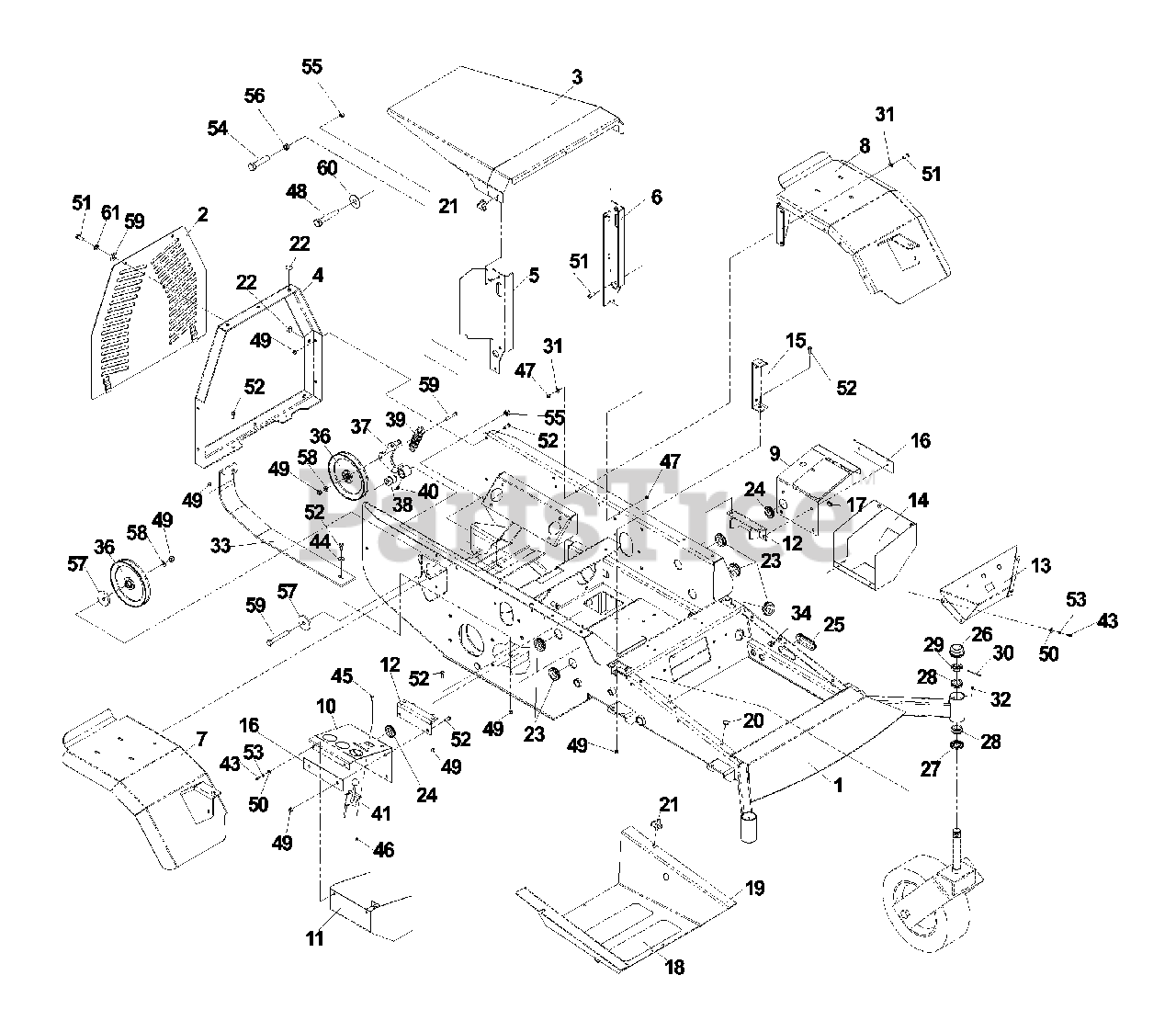

Main Frame Assembly Parts Diagram

  • Title
1

Husqvarna 539106205

Frame w/decals

$

$

Not available

2

Husqvarna 539108362

Panel, back, w/decals

$113.99

$

Usually ships in 3-10 days

0

$218.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107847

Frame, rear

$188.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106405

Support, right

$61.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106406

Support, left

$61.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107205

Fender, right

$141.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539107206

Fender, left

$311.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107781

Panel, top left

$94.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107778

Console, top

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107776

Console, bottom

$80.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107788

Bracket, angle

$18.99

$

Usually ships in 3-10 days

0

13

$

$

Not available

14

Husqvarna 539107791

Console, bottom

$133.99

$

Usually ships in 3-10 days

0

15

$17.99

$

Usually ships in 3-10 days

0

16

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107232

Latch, magnetic

$

$

Not available

18

Husqvarna 539977778

Pad, abrasive

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539104721

Pan, floor

$218.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102587

Stop, rubber

$5.99

$

In Stock, Qty 15

0

21

Husqvarna 539104411

Knob w/stud
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539107858

Grommet, bumper

$4.99

$

Usually ships in 3-10 days

0

23

$3.99

$

Usually ships in 3-10 days

0

24

$3.99

$

Usually ships in 3-10 days

0

25

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102535

Cap, grease
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

$7.99

$

In Stock, Qty 5

0

28

$40.99

$

In Stock, only 1 left!

0

29

Husqvarna 539102852

Nut, 1-14, slotted jam

$

$

Not available

30

Husqvarna 539102889

Pin, cotter, 1/8 x 2
(Superseded to 539124704)

$

$

Not available

31

Husqvarna 539990188

Washer, 5/16, SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539106300

Plate, skid

$47.99

$

Usually ships in 3-10 days

0

34

$6.49

$

In Stock, Qty 9

0

36

Husqvarna 539106348

Idler
(Superseded to 539111568)

$

$

Not available

$33.99

$

Usually ships in 3-10 days

0

38

$

$

Not available

$12.99

$

In Stock, Qty 6

0

40

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539102732

Cable, throttle

$

$

Not available

43

Husqvarna 539990362

Screw, 1/4-20 x 5/8, self-tapping

$4.99

$

In Stock, Qty 12

0

44

Husqvarna 539990517

Washer, 3/8

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990411

Bolt, #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539976977

Nut, #10-24, nyloc

$

$

Not available

47

Husqvarna 539990717

Nut, 5/16-18, nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539108346

Bolt, 1/2-20 x 2 1/2

$5.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539976979

Nut, 3/8-16, nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 539990598

Washer, 1/4

$

$

Not available

51

Husqvarna 539990209

Bolt, 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990563

Bolt, 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990052

Lockwasher, 1/4

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539107026

Bolt, 1/2-20 x 2, Gr.8,

$1.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539101331

Nut, 1/2-20, nyloc,
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 539990258

Nut, 1/2-20,

$4.99

$

In Stock, Qty 14

0

57

Husqvarna 539106504

Washer, heavy

$

$

Not available

58

Husqvarna 539990122

Washer, 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 539990692

Washer, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

60

Husqvarna 539990550

Washer, 1/2

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539990187

Lockwasher, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

Husqvarna 539976856

Wire tie

Note: (Not shown)

$5.99

$

Usually ships in 3-10 days

0
