BZ 6127 D (968999218) - Husqvarna 61" Zero-Turn Mower (2003-03) Fuel Group Parts Diagram

61" Zero-Turn Mower

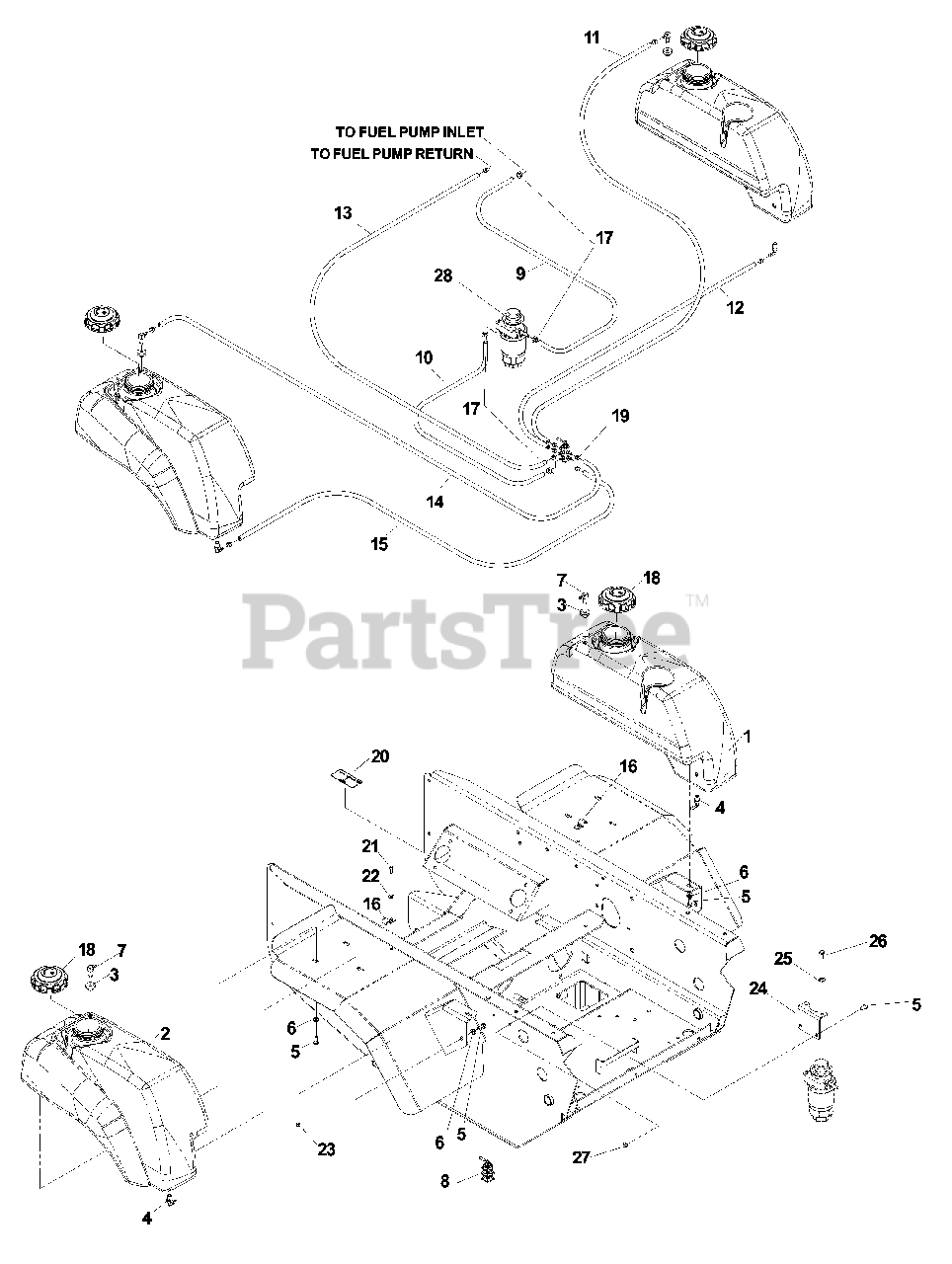

Fuel Group Parts Diagram

  • Title
1

Husqvarna 539105329

Fuel tank, left

$205.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105330

Fuel tank, right

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105245

Grommet, rubber

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 539102650

Hose barb, 90°

$

$

Not available

5

Husqvarna 539976934

Bolt, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101704

Washer, 5/16, sealing

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539105331

Valve, fuel

$103.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108206

Fuel line (38")

$

$

Not available

10

Husqvarna 539108207

Fuel line (35")

$

$

Not available

11

Husqvarna 539108208

Fuel line (79")

$

$

Not available

12

Husqvarna 539108209

Fuel line (57")

$

$

Not available

13

Husqvarna 539108210

Fuel line (54")

$

$

Not available

14

Husqvarna 539108211

Fuel line (34")

$

$

Not available

15

Husqvarna 539108212

Fuel line (13")

$2.49

$

In Stock, Qty 5

0

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 2 left!

0

18

Husqvarna 539106330

Cap, diesel fuel

$48.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539912222

Hose clamp

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 539105334

Decal, fuel valve

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990580

Bolt, 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990598

Washer, 1/4

$

$

Not available

23

Husqvarna 539976978

Nut, 1/4-20, nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 539107840

Mounting bracket

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990187

Lockwasher, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539300600

Bolt, M8-1.25 x 20

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990717

Nut, 5/16-18, nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539106369

Fuel filter/pump assembly

$

$

Not available

Husqvarna 539108448

Fuel filter element

$

$

Not available
