BZ 6127 (968999262) - Husqvarna 61" Zero-Turn Mower (2005-01) Radiator Parts Diagram

61" Zero-Turn Mower

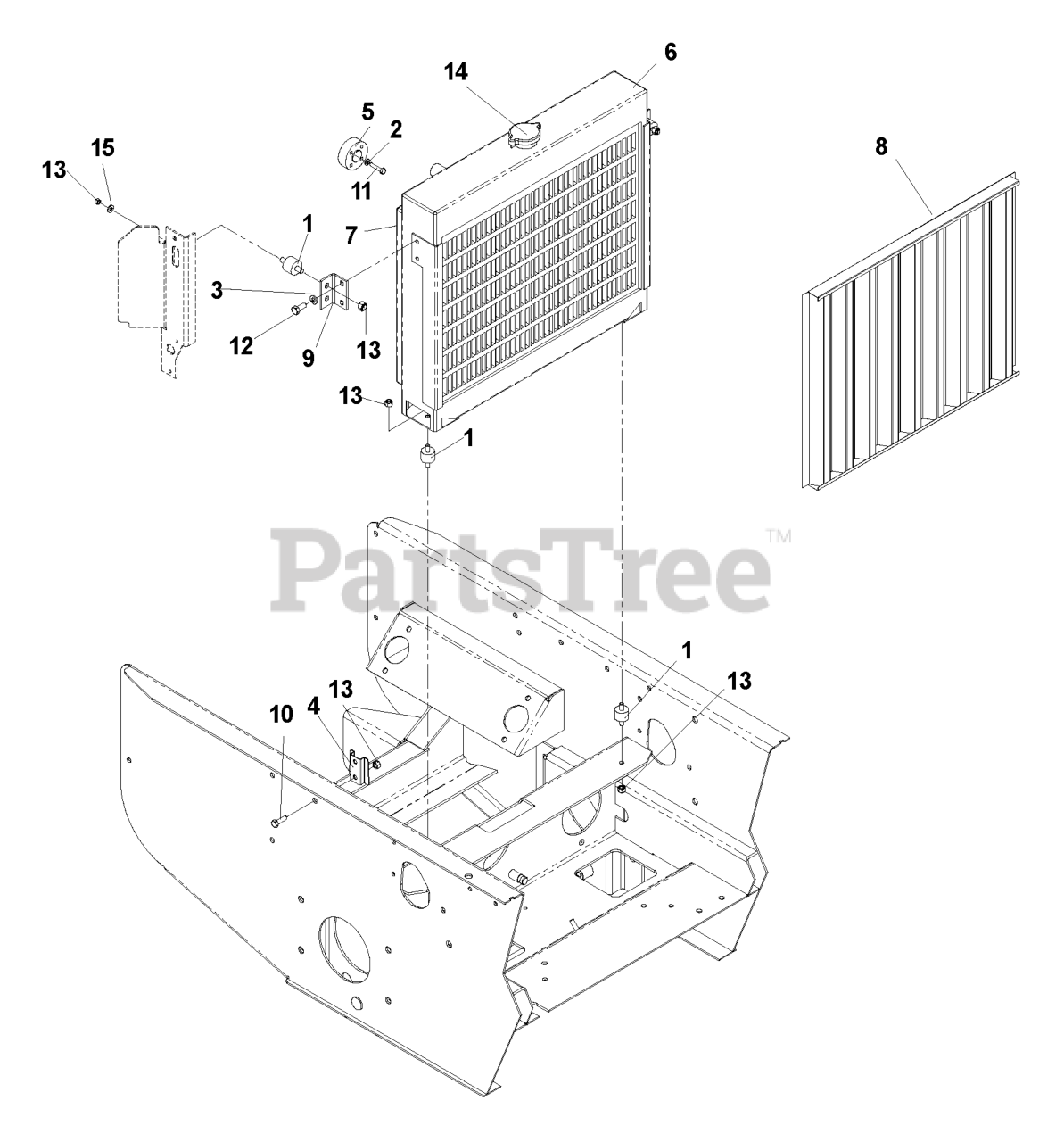

Radiator Parts Diagram

  • Title

1

Husqvarna 539106310

ISOLATOR

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 539107855

MOUNTING BRACKET

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106308

FAN SPACER

$42.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106316

RADIATOR

$

$

Not available

7

Husqvarna 539106311

SHROUD

$151.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106318

DEBRIS GUARD

$182.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106297

BRACKET ISO

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539106307

BOLT - M6-1.0 X 30MM GR 8

$

$

Not available

12

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539106320

RADIATOR CAP

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 539106321

CLAMP

Note: (not shown)

$

$

Not available

Husqvarna 539106326

LOWER HOSE

Note: (not shown)

$66.99

$

Usually ships in 3-10 days

0

Husqvarna 539106325

TOP HOSE

Note: (not shown)

$54.99

$

Usually ships in 3-10 days

0

Husqvarna 539106402

OVERFLOW TANK ASM

Note: (not shown)

$

$

Not available

Husqvarna 539106322

DRAIN

Note: (not shown)

$

$

Not available
