BZ 6127 (968999262) - Husqvarna 61" Zero-Turn Mower (2005-01) Motion Control Parts Diagram

61" Zero-Turn Mower

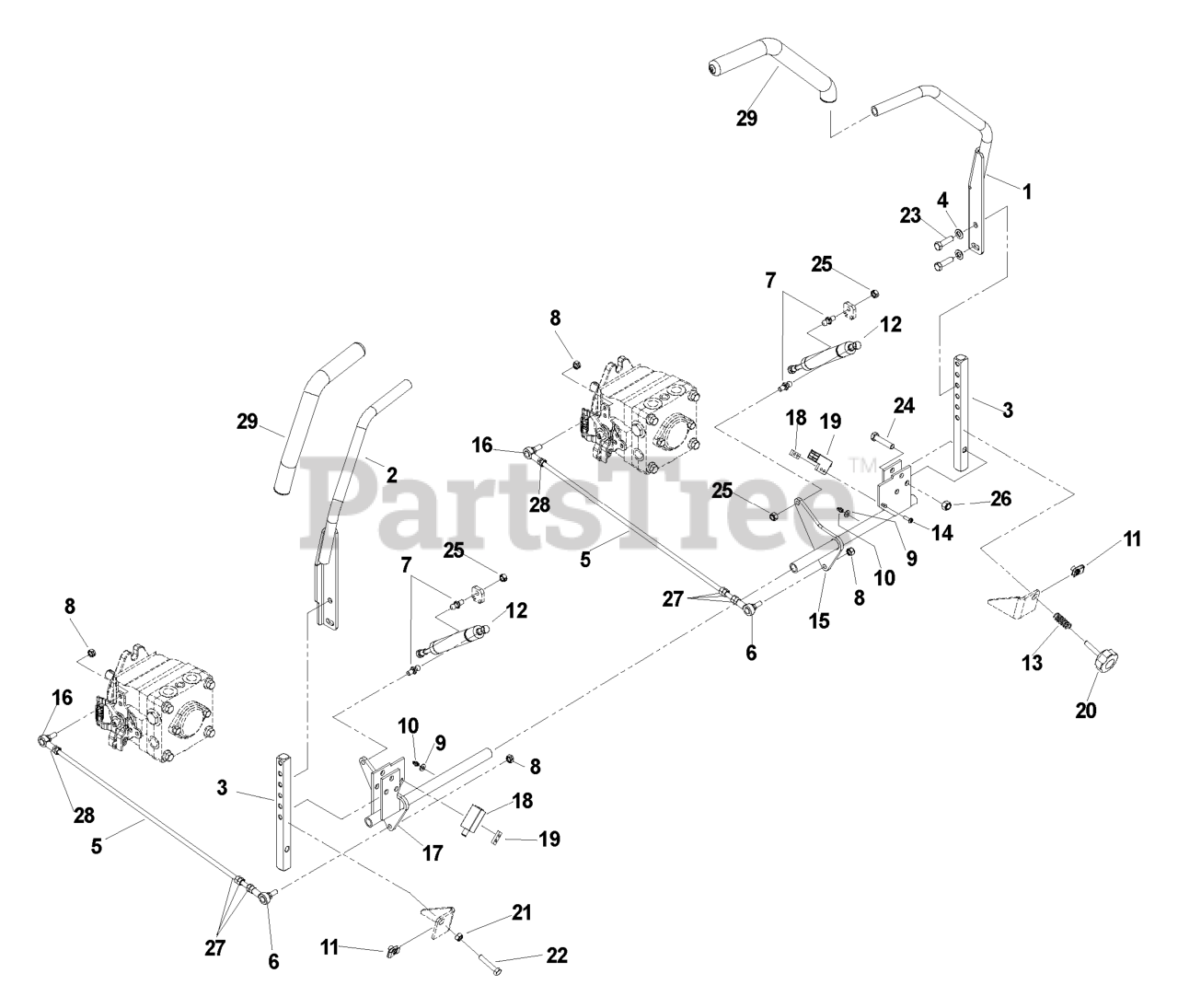

Motion Control Parts Diagram

  • Title

1

Husqvarna 539110827

LT DRIVE LEVER WLDMT

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110826

RT DRIVE LEVER WLDMT

$60.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110638

CONTROL ARM

$42.99

$

In Stock, only 1 left!

0

4

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

5

Husqvarna 539110896

LINK

$94.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539110603

SPHERICAL ROD END, RH

$40.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

10

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

12

Husqvarna 539110606

DAMPENER
(Superseded to 539131932)

$87.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539111039

COMPRESSION SPRING

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

15

Husqvarna 539110897

CONTROL WLDMT, LT

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110604

SPHERICAL ROD END, LH

$24.99

$

In Stock, only 1 left!

0

17

Husqvarna 539110898

CONTROL WLDMT, RT

$37.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

19

Husqvarna 539106269

SWITCH

$21.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103003

ADJUSTMENT KNOB

$

$

Not available

21

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108394

HCS 5/16-18X1-3/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102592

GRIP

$

$

Not available
