BZ 27 D (968999315) - Husqvarna Zero-Turn Mower (2006-05) MOWER LIFT / DECK LIFT Parts Diagram

Zero-Turn Mower

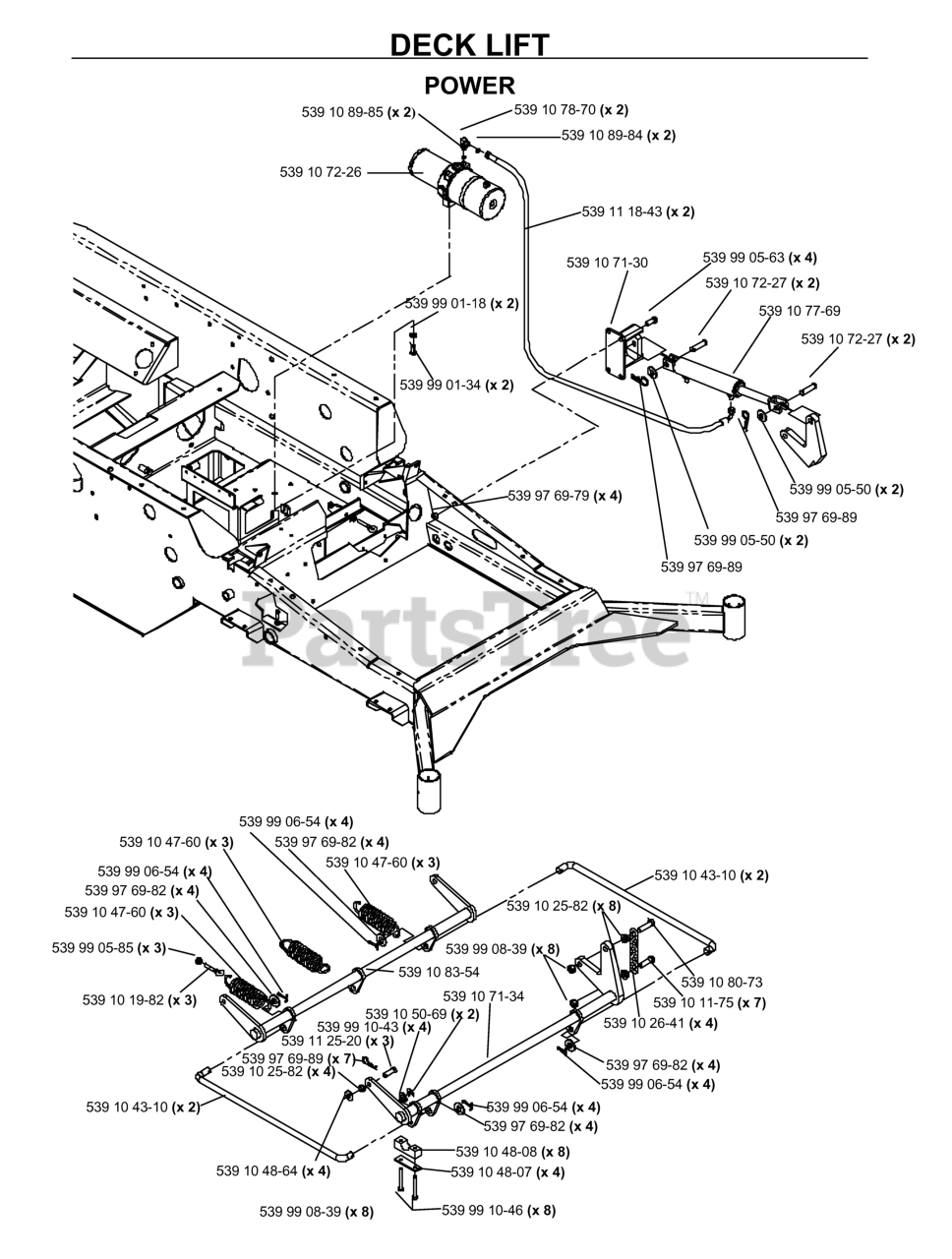

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

539 10 48-07

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

539 11 29-97

Husqvarna 539112997

HCS 7/16-14 X1-3/4 GR5 ZD SPEC

$8.99

$

Usually ships in 3-10 days

0

539 97 67-89

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

539 99 08-39

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

539 10 25-82

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

539 10 77-69

Husqvarna 539107769

HYDRAULIC CYLINDER

$461.99

$

Usually ships in 3-10 days

0

539 10 89-84

Husqvarna 539108984

O-RING

$0.99

$

Usually ships in 3-10 days

0

539 99 06-54

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 99 01-18

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

539 97 69-82

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

539 10 19-82

Husqvarna 539101982

EYEBOLT, RH

$43.99

$

Usually ships in 3-10 days

0

539 97 69-89

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

539 10 43-10

Husqvarna 539104310

CONNECTING LINK

$21.99

$

In Stock, only 1 left!

0

539 10 72-26

Husqvarna 539107226

HYDRAULIC POWER UNIT

$1335.99

$

Usually ships in 3-10 days

0

539 99 05-63

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539 10 47-60

Husqvarna 539104760

DECK LIFT SPRING

$

$

Not available

539 10 72-27

Husqvarna 539107227

CLEVIS PIN 1/2 X 3/4

$3.99

$

Usually ships in 3-10 days

0

539 97 69-89

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

539 10 48-64

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

539 10 83-54

Husqvarna 539108354

SHAFT LIFT REAR

$103.99

$

Usually ships in 3-10 days

0

539 99 01-34

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

539 10 80-73

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

539 99 05-85

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 10 26-41

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

539 11 25-20

Husqvarna 539112520

HCS 7/16-14X1-1/2 GR5 ZD SPEC

$

$

Not available

539 10 78-70

Husqvarna 539107870

FITTING

$8.99

$

Usually ships in 3-10 days

0

539 99 10-43

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

539 10 71-30

Husqvarna 539107130

CYLINDER MTG WLDMT

$42.99

$

Usually ships in 3-10 days

0

539 10 48-08

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

539 10 50-69

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

539 10 71-34

Husqvarna 539107134

LIFT SHAFT WELDMT FRONT

$169.99

$

Usually ships in 3-10 days

0

539 11 18-43

Husqvarna 539111843

HOSE

$46.99

$

Usually ships in 3-10 days

0

539 10 11-75

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 99 10-46

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

539 10 89-85

Husqvarna 539108985

O-RING

$0.99

$

Usually ships in 3-10 days

0
