BZ 27 D (968999315) - Husqvarna Zero-Turn Mower (2006-05) 72"/183CM CUTTING DECK Parts Diagram

Zero-Turn Mower

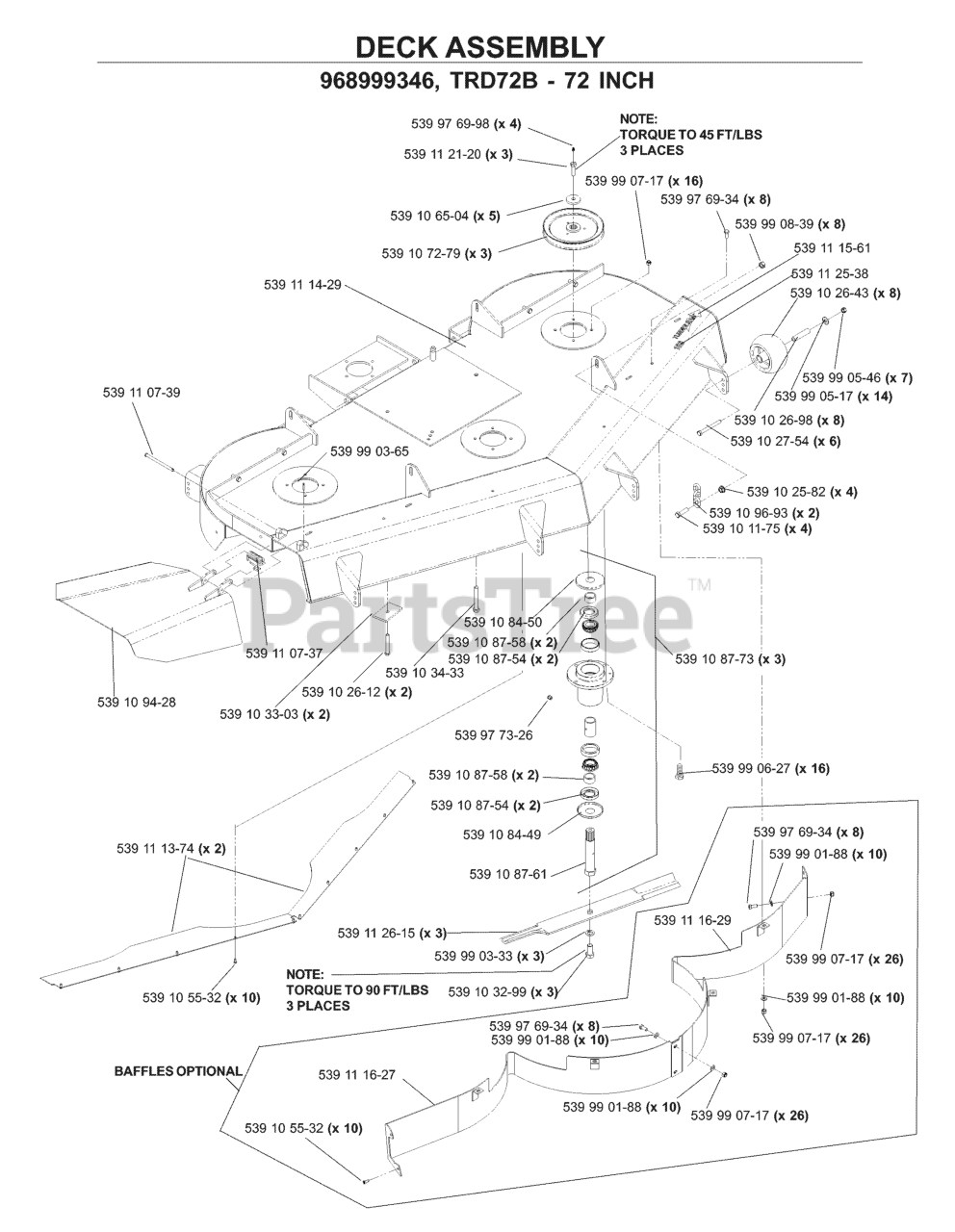

72"/183CM CUTTING DECK Parts Diagram

  • Title

539 99 06-27

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

539 10 84-49

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

539 11 07-37

Husqvarna 539110737

SPRING - TORSION

$15.99

$

Usually ships in 3-10 days

0

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539 10 87-58

Husqvarna 539108758

SPACER

$

$

Not available

539 10 94-28

Husqvarna 539109428

72 CHUTE - PAINTED

$182.99

$

Usually ships in 3-10 days

0

539 10 26-12

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

539 11 21-20

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 27-54

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

539 10 32-99

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

539 10 55-32

Husqvarna 539105532

HEX CAP SCREW 1/4

$3.99

$

Usually ships in 3-10 days

0

539 10 72-79

Husqvarna 539107279

RP PULLEY - 72"
(Superseded to 539112126)

$

$

Not available

539 10 11-75

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 11 26-15

Husqvarna 539112615

BLADE, 25"

$

$

Not available

539 10 87-61

Husqvarna 539108761

SPLINED SHAFT - 72"
(Superseded to 539112123)

$

$

Not available

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 99 03-33

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

539 11 25-38

Husqvarna 539112538

DECAL, 183

$

$

Not available

539 11 16-29

Husqvarna 539111629

72 FRONT BAFFLE LH WLDT

$339.99

$

Usually ships in 3-10 days

0

539 10 65-04

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 25-82

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

539 11 14-29

Husqvarna 539111429

DECK W/DECALS

$

$

Not available

539 99 05-46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539 10 26-98

Husqvarna 539102698

BUSHING

$

$

Not available

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 10 87-54

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

539 99 08-39

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

539 10 34-33

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

539 11 13-74

Husqvarna 539111374

72 CONFINEMENT PLATE
(Superseded to 539110139)

$133.99

$

Usually ships in 3-10 days

0

539 11 15-61

Husqvarna 539111561

DECAL, TUNNEL RAM 8"

$8.99

$

Usually ships in 3-10 days

0

539 10 26-43

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

539 10 87-73

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

539 97 73-26

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

539 11 07-39

Husqvarna 539110739

PIN - CLEVIS 5/16 DIA X4.69 ZD

$7.49

$

Usually ships in 3-10 days

0

539 10 33-03

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539 10 84-50

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

539 10 96-93

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

539 11 16-27

Husqvarna 539111627

72 FRONT BAFFLE RH WLDT

$339.99

$

Usually ships in 3-10 days

0
