BZ 27 (968999315) - Husqvarna Zero-Turn Mower (2007-03) PARKING BRAKE Parts Diagram

Zero-Turn Mower

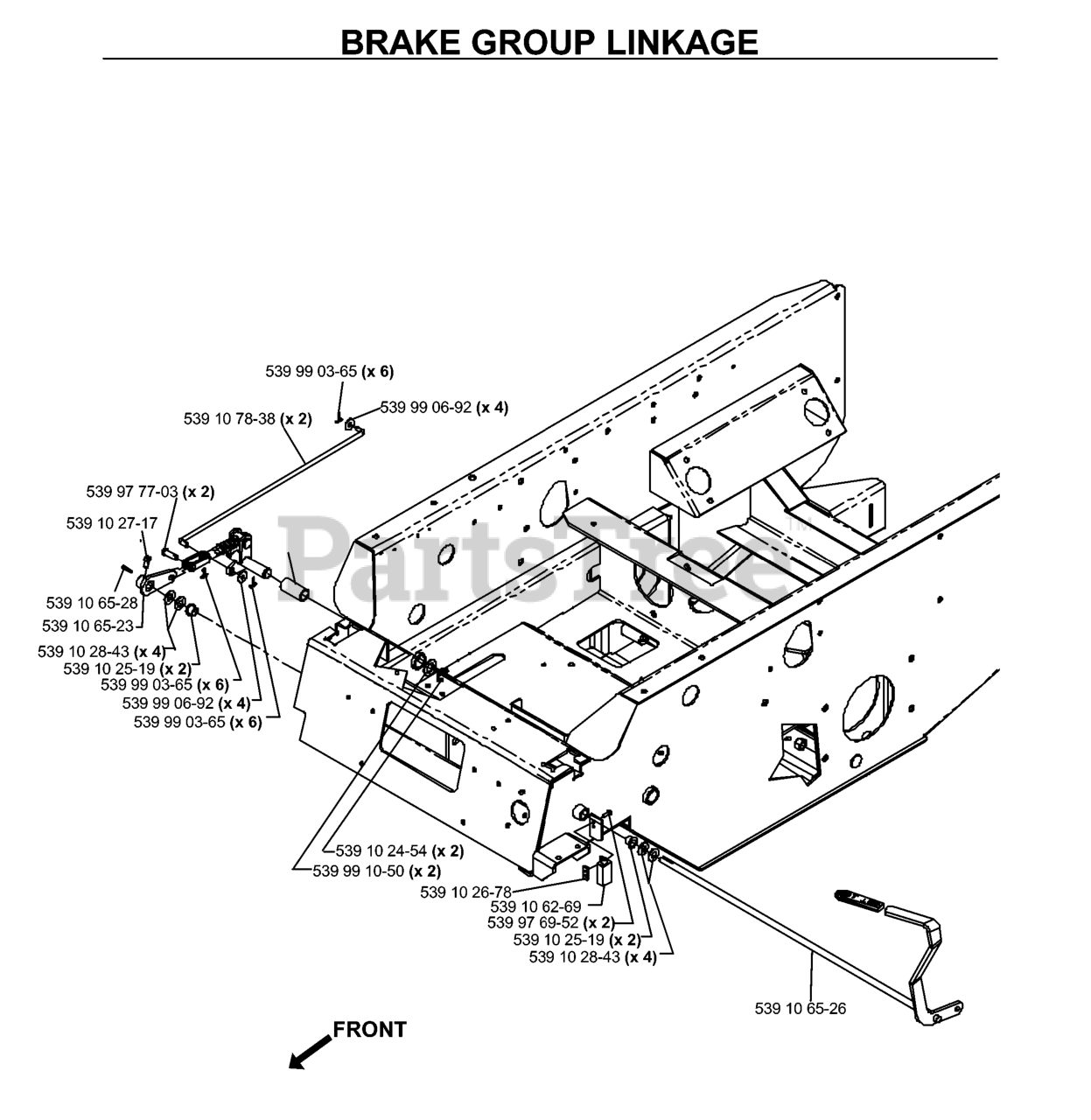

PARKING BRAKE Parts Diagram

  • Title

539 10 65-26

Husqvarna 539106526

BRAKE ARM

$84.99

$

Usually ships in 3-10 days

0

539 10 26-78

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

539 10 25-19

Husqvarna 539102519

BUSHING

$

$

Not available

539 10 65-28

Husqvarna 539106528

KEY

$

$

Not available

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 62-69

Husqvarna 539106269

SWITCH

$21.99

$

Usually ships in 3-10 days

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 97 77-03

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

539 97 69-52

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

539 10 78-38

Husqvarna 539107838

BRAKE LINKAGE BAR

$24.99

$

Usually ships in 3-10 days

0

539 10 28-43

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

539 10 27-17

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

539 99 10-50

Husqvarna 539991050

BUSHING

$3.99

$

In Stock, Qty 6

0

539 10 24-54

Husqvarna 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

539 10 65-23

Husqvarna 539106523

BRAKE ARM WELDMENT

$26.99

$

Usually ships in 3-10 days

0
