BZ 27 (968999315) - Husqvarna Zero-Turn Mower (2007-03) ENGINE 2 Parts Diagram

Zero-Turn Mower

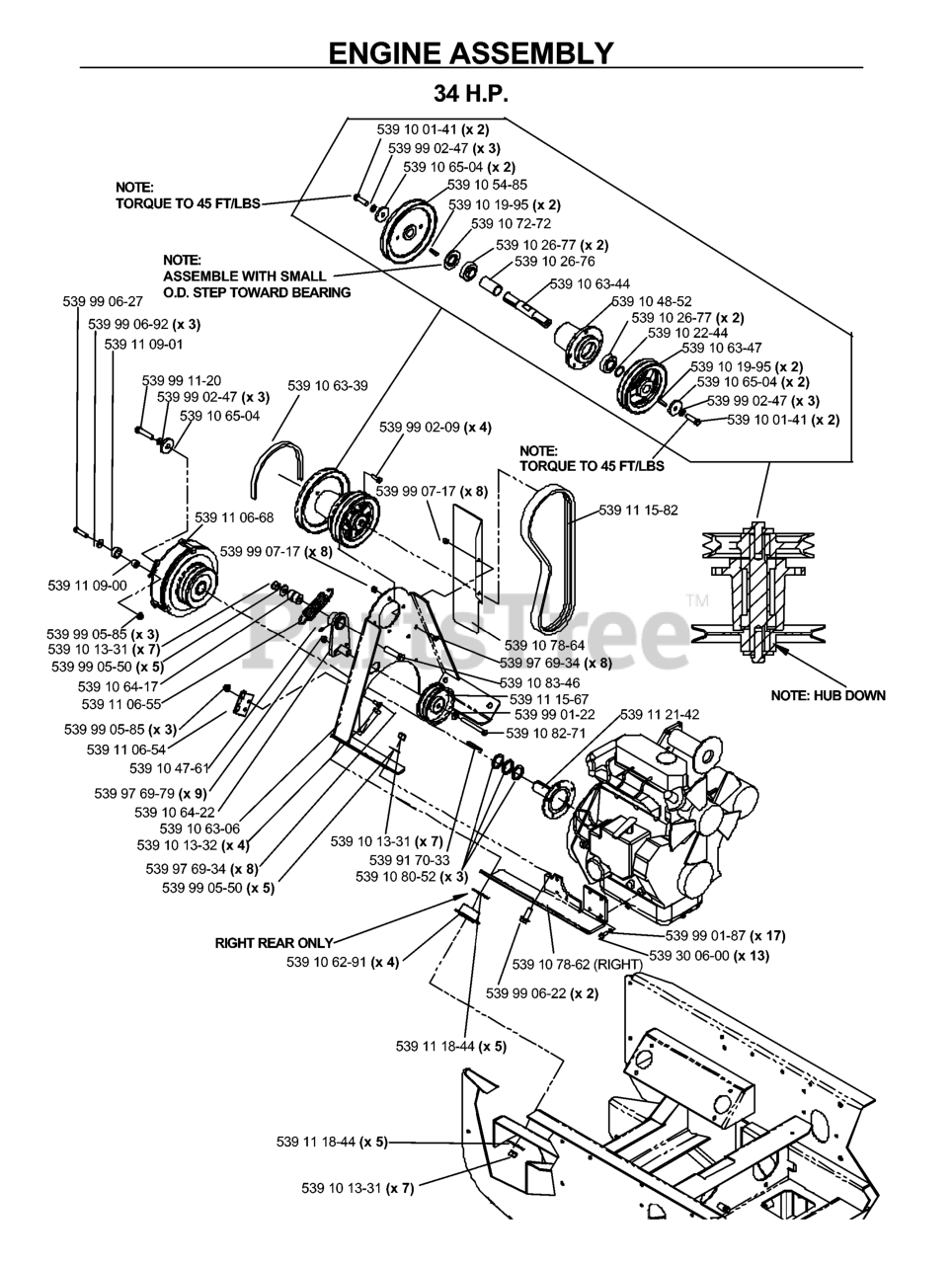

ENGINE 2 Parts Diagram

  • Title
539 10 63-47

$61.99

$

Usually ships in 3-10 days

0

539 99 05-85

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 11 15-67

$

$

Not available

539 10 72-72

Husqvarna 539107272

COMBO SPACER

$3.99

$

In Stock, only 2 left!

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 10 78-64

Husqvarna 539107864

HEAT SHIELD

$24.99

$

Usually ships in 3-10 days

0

539 99 06-27

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

539 11 18-44

Husqvarna 539111844

WASHER, HEAVY

$4.99

$

Usually ships in 3-10 days

0

539 10 54-85

$54.99

$

Usually ships in 3-10 days

0

539 91 70-33

Husqvarna 539917033

KEY 1/4 SQ X 2-1/2

$3.99

$

Usually ships in 3-10 days

0

539 10 47-61

Husqvarna 539104761

GREASE ZERK LONG

$3.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 10 19-95

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

539 11 21-42

Husqvarna 539112142

PILOT SHAFT, 1-1/8

$207.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 62-91

$46.99

$

Usually ships in 3-10 days

0

539 10 01-41

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 30 06-00

$3.99

$

Usually ships in 3-10 days

0

539 10 63-06

Husqvarna 539106306

JACKSHAFT MOUNT WELDMENT

$236.99

$

Usually ships in 3-10 days

0

539 99 02-47

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

539 10 26-77

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

539 10 65-04

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539 11 09-01

$3.99

$

Usually ships in 3-10 days

0

539 10 63-44

$68.99

$

Usually ships in 3-10 days

0

539 10 22-44

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$5.99

$

In Stock, only 3 left!

0

539 99 06-22

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

539 10 63-39

Husqvarna 539106339

ENGINE, BELT MULE

$

$

Not available

539 11 09-00

$10.99

$

Usually ships in 3-10 days

0

539 11 06-68

Husqvarna 539110668

ELECTRIC CLUTCH

$2185.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

539 11 06-54

Husqvarna 539110654

RESTRAINT KIT
(Superseded to 539111433)

$27.99

$

Usually ships in 3-10 days

0

539 10 80-52

Husqvarna 539108052

BUSH 1-1/8 X 10 GA ZD

$3.99

$

Usually ships in 3-10 days

0

539 10 65-04

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539 10 78-62

Husqvarna 539107862

ENGINE MOUNT-RT

$51.99

$

Usually ships in 3-10 days

0

539 10 83-46

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

539 11 06-55

$14.99

$

Usually ships in 3-10 days

0

539 10 82-71

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$5.99

$

In Stock, Qty 8

0

539 10 64-17

$

$

Not available

539 11 15-82

Husqvarna 539111582

BELT, PRIMARY BZ

$72.99

$

Usually ships in 3-10 days

0

539 10 13-32

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

539 99 11-20

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

539 10 26-76

$13.99

$

In Stock, only 4 left!

0

539 10 48-52

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

539 10 64-22

Husqvarna 539106422

ARM WELDMENT

$

$

Not available
