BZ 27 (968999315) - Husqvarna Zero-Turn Mower (2006-04) MAINFRAME, LEFT SIDE Parts Diagram

Zero-Turn Mower

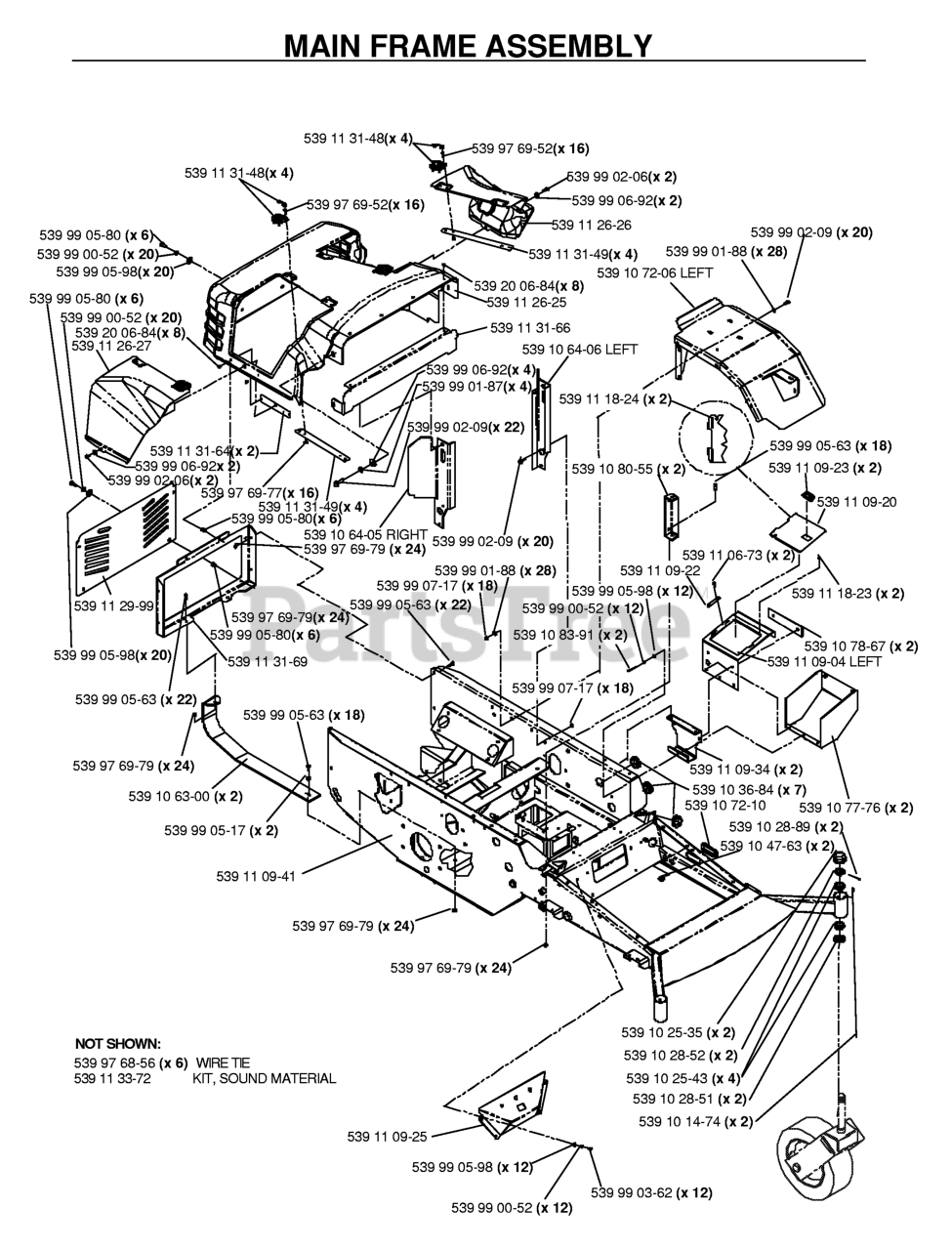

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

539 99 02-06

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 11 31-69

Husqvarna 539113169

NEEDS DESCRIPTION

$

$

Currently unavailable

539 11 33-72

Husqvarna 539113372

NEEDS DESCRIPTION

Note: NOT SHOWN: KIT, SOUND MATERIAL

$

$

Currently unavailable

539 10 25-35

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

539 11 26-25

Husqvarna 539112625

HOOD

$

$

Not available

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

539 11 31-48

Husqvarna 539113148

HINGE, DOOR

$

$

Not available

539 11 26-26

Husqvarna 539112626

DOOR, LEFT

$188.99

$

Usually ships in 3-10 days

0

539 97 69-77

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

539 10 77-76

Husqvarna 539107776

CONSOLE BOTTOM

$80.99

$

Usually ships in 3-10 days

0

539 10 47-63

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 11 09-34

Husqvarna 539110934

CONSOLE SUPPORT

$28.99

$

Usually ships in 3-10 days

0

539 97 68-56

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN: WIRE TIE

$5.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 99 05-98

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

539 99 05-63

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539 10 64-06

Husqvarna 539106406

SUPPORT WLDMT, LT

Note: LEFT

$61.99

$

Usually ships in 3-10 days

0

539 11 29-99

Husqvarna 539112999

REAR PANEL

$70.99

$

Usually ships in 3-10 days

0

539 20 06-84

Husqvarna 539200684

RIVERT, 3/16, STAVEX

$3.99

$

Usually ships in 3-10 days

0

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

539 11 09-25

Husqvarna 539110925

CONSOLE

$42.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 11 06-73

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

539 11 31-49

Husqvarna 539113149

STRAP

$14.99

$

Usually ships in 3-10 days

0

539 10 72-06

Husqvarna 539107206

FENDER WELDMT, LH

Note: LEFT

$311.99

$

Usually ships in 3-10 days

0

539 11 09-04

Husqvarna 539110904

CONSOLE TOP-FINISHED ORANGE

Note: LEFT

$26.99

$

Usually ships in 3-10 days

0

539 10 63-00

Husqvarna 539106300

SKID PLATE

$47.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 14-74

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

539 99 03-62

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

539 10 28-89

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

539 10 64-05

Husqvarna 539106405

SUPPORT WLDMT, RT

Note: RIGHT

$61.99

$

Usually ships in 3-10 days

0

539 11 31-64

Husqvarna 539113164

LATCH PLATE

$14.99

$

Usually ships in 3-10 days

0

539 10 36-84

Husqvarna 539103684

GROMMET

$3.99

$

Usually ships in 3-10 days

0

539 11 18-24

Husqvarna 539111824

FOAM STRIP

$3.99

$

Usually ships in 3-10 days

0

539 99 00-52

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

539 11 31-66

Husqvarna 539113166

GUARD, FRONT

$42.99

$

Usually ships in 3-10 days

0

539 11 09-20

Husqvarna 539110920

DOOR - FINISHED

$24.99

$

Usually ships in 3-10 days

0

539 99 05-63

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539 99 00-52

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

539 10 80-55

Husqvarna 539108055

SUPPORT WELDMENT

$17.99

$

Usually ships in 3-10 days

0

539 11 09-41

Husqvarna 539110941

FRAME W/DECALS

$1510.99

$

Usually ships in 3-10 days

0

539 97 69-52

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

539 11 26-27

Husqvarna 539112627

DOOR, RIGHT

$188.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 11 18-23

Husqvarna 539111823

PLUG

$0.99

$

Usually ships in 3-10 days

0

539 99 05-98

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

539 10 28-52

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

539 10 78-67

Husqvarna 539107867

BLACK-STIFFNER-PAINTED

$6.99

$

Usually ships in 3-10 days

0

539 10 28-51

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

539 11 09-22

Husqvarna 539110922

RETAINER

$2.99

$

Usually ships in 3-10 days

0

539 10 72-10

Husqvarna 539107210

GROMMET

$6.99

$

Usually ships in 3-10 days

0

539 10 83-91

Husqvarna 539108391

HCS 1/4-20 X 3 GR 5 ZD

$6.49

$

Usually ships in 3-10 days

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 11 09-23

Husqvarna 539110923

LATCH

$7.99

$

Usually ships in 3-10 days

0

539 10 25-43

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 2 left!

0
