BZ 27 (968999315) - Husqvarna Zero-Turn Mower (2006-04) COOLING SYSTEM 2 Parts Diagram

Zero-Turn Mower

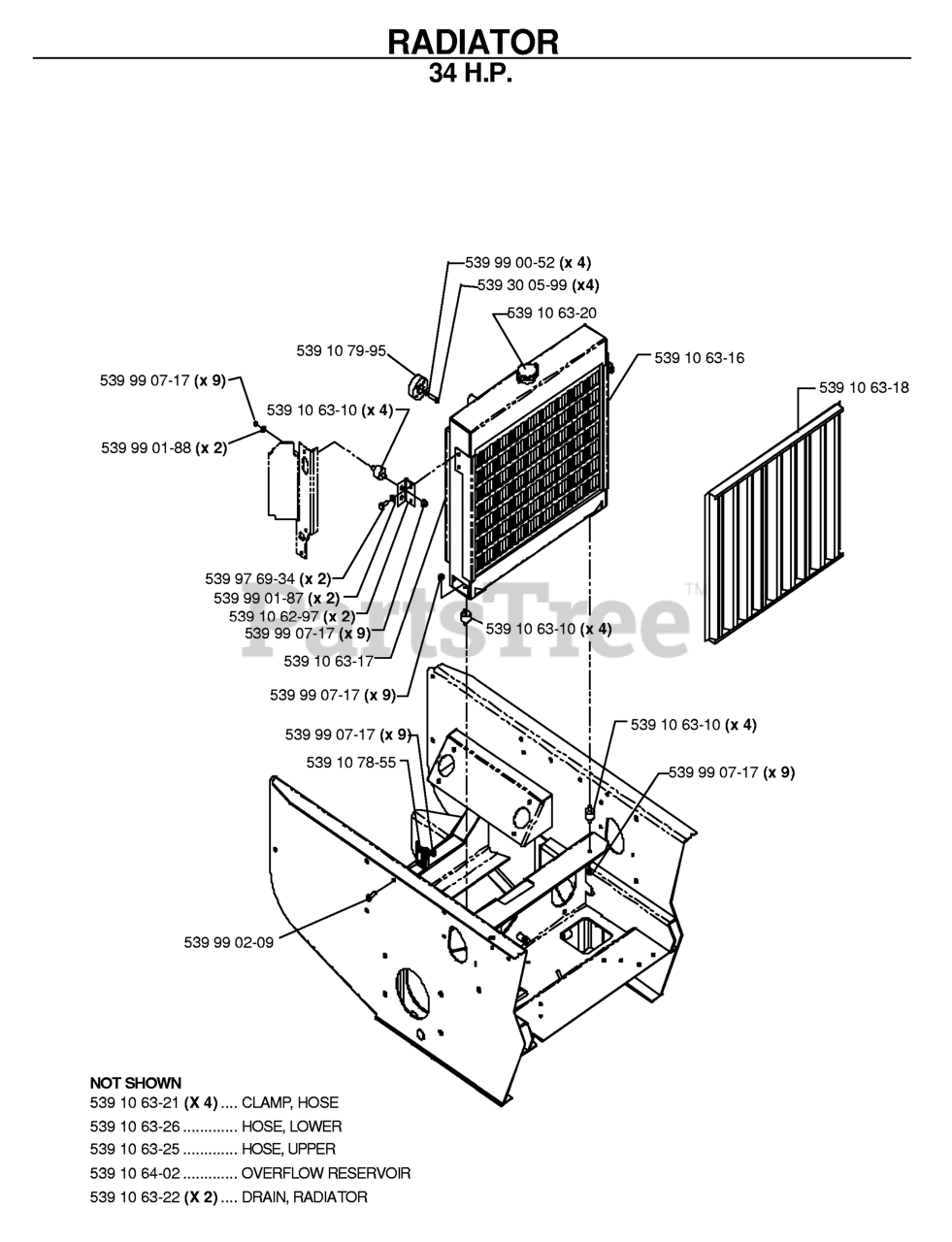

COOLING SYSTEM 2 Parts Diagram

  • Title

539 10 63-25

Husqvarna 539106325

TOP HOSE

Note: NOT SHOWN HOSE, UPPER

$54.99

$

Usually ships in 3-10 days

0

539 30 05-99

Husqvarna 539300599

BOLT

$

$

Not available

539 10 63-10

Husqvarna 539106310

ISOLATOR

$12.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

539 10 64-02

Husqvarna 539106402

OVERFLOW TANK ASM

Note: NOT SHOWN OVERFLOW RESERVOIR

$

$

Not available

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 10 63-22

Husqvarna 539106322

DRAIN

Note: NOT SHOWN DRAIN, RADIATOR

$

$

Not available

539 10 63-17

Husqvarna 539106317

SHROUD

$

$

Not available

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539 10 63-16

Husqvarna 539106316

RADIATOR

$

$

Not available

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 78-55

Husqvarna 539107855

MOUNTING BRACKET

$5.99

$

Usually ships in 3-10 days

0

539 10 63-21

Husqvarna 539106321

CLAMP

Note: NOT SHOWN CLAMP, HOSE

$

$

Not available

539 10 63-20

Husqvarna 539106320

RADIATOR CAP

$42.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 10 63-18

Husqvarna 539106318

DEBRIS GUARD

$182.99

$

Usually ships in 3-10 days

0

539 10 63-26

Husqvarna 539106326

LOWER HOSE

Note: NOT SHOWN HOSE, LOWER

$66.99

$

Usually ships in 3-10 days

0

539 10 79-95

Husqvarna 539107995

SPACER FAN

$

$

Not available

539 99 00-52

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

539 10 62-97

Husqvarna 539106297

BRACKET ISO

$4.99

$

Usually ships in 3-10 days

0
