BX 34 D (968999316) - Husqvarna Zero-Turn Mower (2009-07) Main Frame Assembly Parts Diagram

Zero-Turn Mower

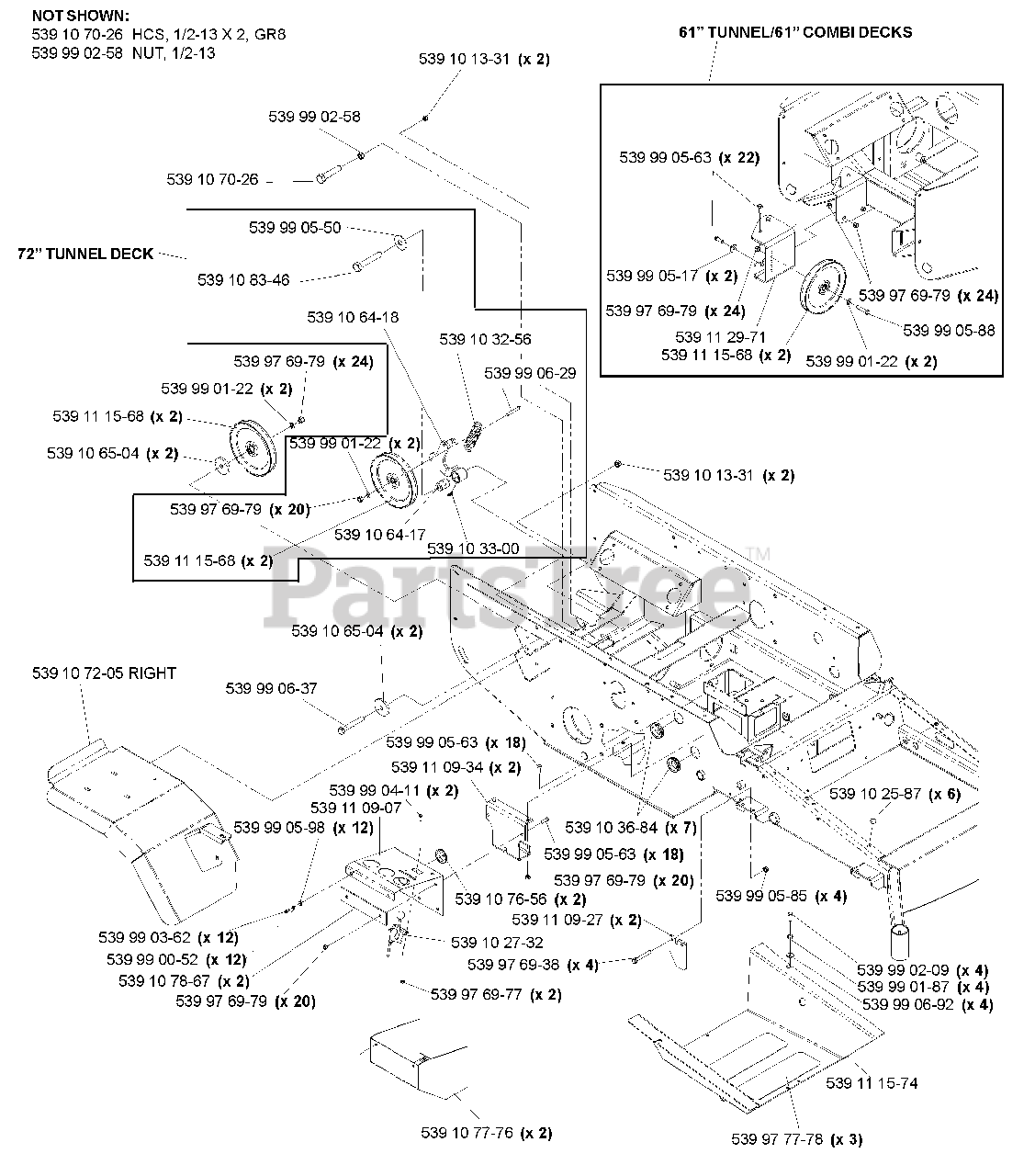

Main Frame Assembly Parts Diagram

  • Title

539107026

Husqvarna 539107026

HCS 1/2-13X2 GR 8

Note: NOT SHOWN

$1.99

$

Usually ships in 3-10 days

0

539990258

Husqvarna 539990258

NUT HEX 1/2

Note: NOT SHOWN

$4.99

$

In Stock, Qty 14

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539990258

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

539107026

Husqvarna 539107026

HCS 1/2-13X2 GR 8

$1.99

$

Usually ships in 3-10 days

0

539106418

Husqvarna 539106418

ARM WELDMENT

$33.99

$

Usually ships in 3-10 days

0

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539108346

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

539990629

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

539103256

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539990122

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539111568

Husqvarna 539111568

IDLER

$

$

Not available

539106504

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539990122

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539111568

Husqvarna 539111568

IDLER

$

$

Not available

539106417

Husqvarna 539106417

BUSHING

$

$

Not available

539103300

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539106504

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539107205

Husqvarna 539107205

FENDER WELDMT, RH

$141.99

$

Usually ships in 3-10 days

0

539990637

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

539990563

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539110934

Husqvarna 539110934

CONSOLE SUPPORT

$28.99

$

Usually ships in 3-10 days

0

539990411

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

539110907

Husqvarna 539110907

CONTROL PANEL

$75.99

$

Usually ships in 3-10 days

0

539990598

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

539990362

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

539990052

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

539107867

Husqvarna 539107867

BLACK-STIFFNER-PAINTED

$6.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539976977

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

539102732

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

539107656

Husqvarna 539107656

Grommet

$3.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539103684

Husqvarna 539103684

Grommet

$3.99

$

Usually ships in 3-10 days

0

539990563

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539976938

Husqvarna 539976938

CAPSCREW

$4.99

$

In Stock, only 2 left!

0

539110927

Husqvarna 539110927

STOP

$12.99

$

Usually ships in 3-10 days

0

539102587

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

539990585

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539990209

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539990187

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539977778

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

539111574

Husqvarna 539111574

FOOTPLATE W/DECALS

$188.99

$

Usually ships in 3-10 days

0

539107776

Husqvarna 539107776

CONSOLE BOTTOM

$80.99

$

Usually ships in 3-10 days

0

539990563

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539111568

Husqvarna 539111568

IDLER

$

$

Not available

539112971

Husqvarna 539112971

Idler Bracket, Rear

$51.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539990588

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

539990122

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
