BVM 215 - Poulan Pro Blower Vacuum, Electric Electric Blower Assebmly Parts Diagram

Blower Vacuum, Electric

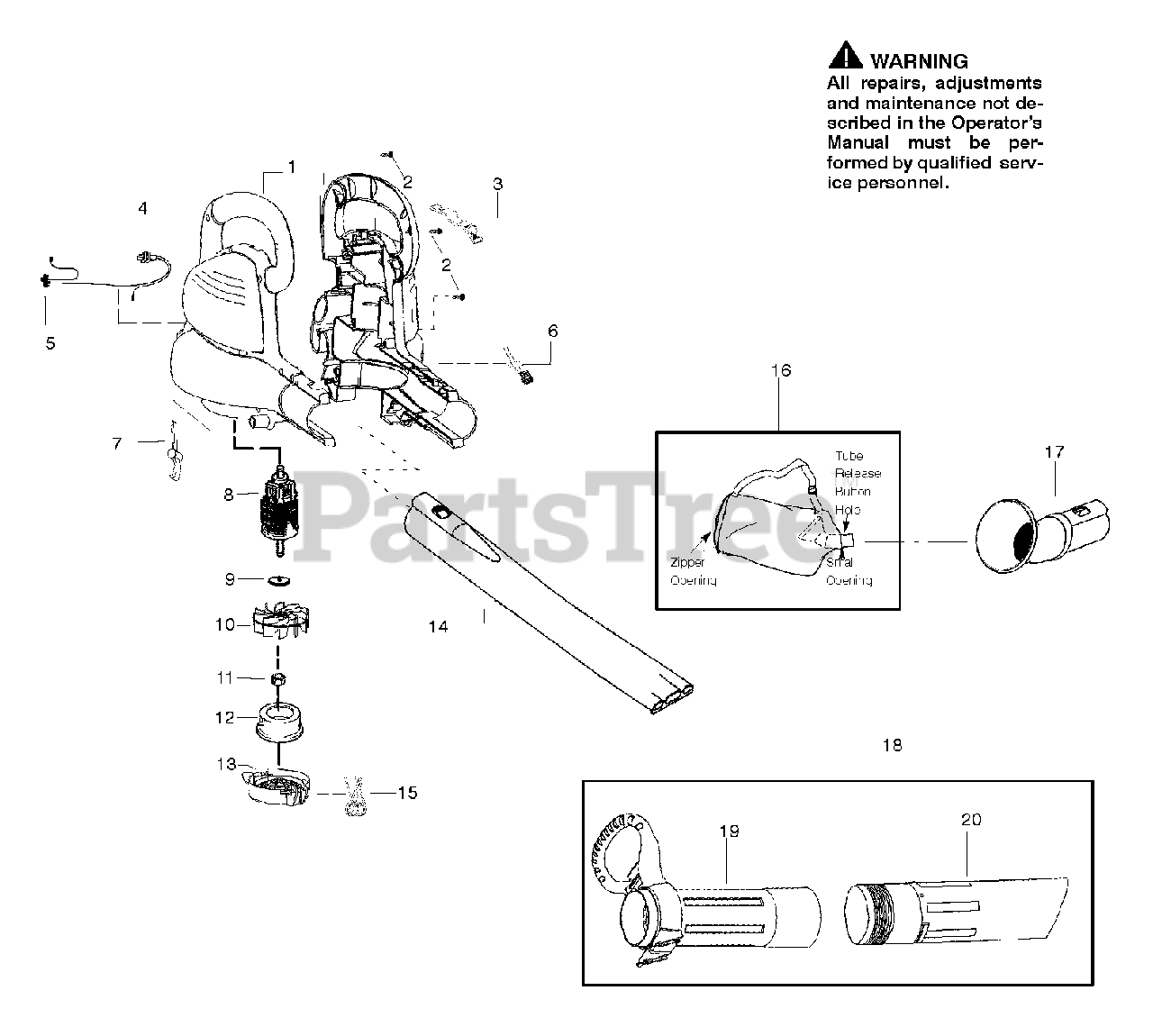

Electric Blower Assebmly Parts Diagram

  • Title

1

Poulan 530404289

Housing Set

Note: (incl. #6)

$24.99

$

Usually ships in 3-10 days

0

2

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 9

0

3

Poulan 530403764

Cover - Switch

$

$

Not available

4

Poulan 530403778

Assy. Wiring Harness
(Superseded to 545124301)

Note: (incl. switch)

$

$

Not available

5

Poulan 530401094

Switch

$

$

Not available

6

Poulan 530403775

Button - Tube Latch
(Superseded to 530404367)

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530403790

Button - Door Latch

$

$

Not available

8

Poulan 530403770

Assy. Motor

$

$

Not available

9

Poulan 530403834

Washer

$

$

Not available

10

Poulan 530403771

Impeller

$

$

Not available

11

Poulan 545006201

Nut - Impeller
(Superseded to 545162101)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530403791

Restrictor - Inlet

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530403788

Door - Vacuum Inlet

$

$

Not available

14

Poulan 530403765

Tube - Blower

$60.99

$

In Stock, only 2 left!

0

15

Poulan 530403833

Spring - Door

$3.99

$

In Stock, only 1 left!

0

16

Poulan 530095599

Assy. - Vac Bag
(Superseded to 530095564)

$34.99

$

Usually ships in 3-10 days

0

17

Poulan 530403769

Tube - Elbow

$

$

Not available

18

Poulan 530403989

Kit-Upper/Lower Tube w/handle
(Superseded to 530403842)

$

$

Not available

19

Poulan 530403842

Tube - Upper Vac w/handle

$

$

Not available

20

Poulan 530403850

Tube - Lower Vac
(Superseded to 530403988)

$14.99

$

Usually ships in 3-10 days

0

Poulan 545117530

Manual - Operator's

Note: Not Shown

$

$

Not available

Poulan 530058965

Decal - Warning

Note: Not Shown

$

$

Not available
