BVM 210 VS - Poulan Pro Blower Vacuum, Type 1 Engine Type 1 Parts Diagram

Blower Vacuum, Type 1

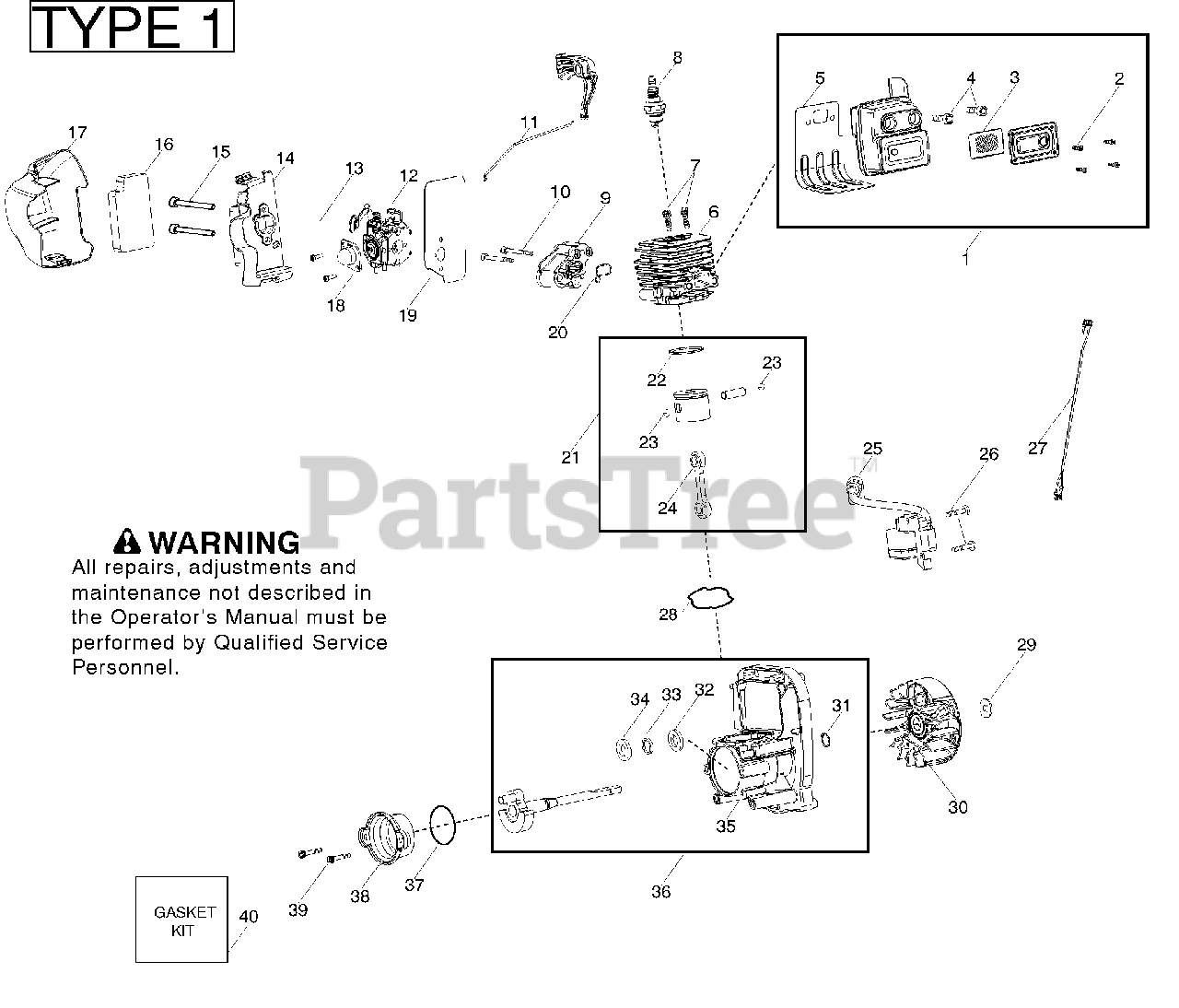

Engine Type 1 Parts Diagram

  • Title

1

Poulan 545090001

Assy - Muffler
(Superseded to 525592801)

Note: (Incl. 2,3,4,5)

$51.99

$

In Stock, only 1 left!

0

2

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 545081845

Kit - Spark Screen
(Superseded to 525592801)

$51.99

$

In Stock, only 1 left!

0

4

Poulan 530058982

Bolt

$4.99

$

In Stock, Qty 7

0

5

Poulan 545081832

Gasket-Muffler (gasket kit)

$17.99

$

Usually ships in 3-10 days

0

6

Poulan 545115301

Cylinder

$

$

Not available

7

Poulan 530015953

Bolt

$6.49

$

In Stock, Qty 7

0

8

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

9

Poulan 545084901

Adapter - Carb.

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 530016441

Screw

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 545115501

Linkage - Throttle

$6.49

$

In Stock, only 1 left!

0

12

Poulan 545180811

Kit - Carb. Assy (C1U - W45)

Note: (Incl. 13,18)

$53.99

$

Usually ships in 3-10 days

0

13

Poulan 545135905

Lever- Choke (Yellow)

$

$

Not available

14

Poulan 545163401

Base - Airbox

$2.49

$

In Stock, only 2 left!

0

15

Poulan 530016429

Screw

$6.49

$

In Stock, Qty 6

0

16

Poulan 545146501

Filter

$6.99

$

Usually ships in 3-10 days

0

17

Poulan 545163501

Cover - Air Box Filter

$13.99

$

Usually ships in 3-10 days

0

18

Poulan 530035497

Bulb - Purge (walbro 188-16)

$9.49

$

In Stock, only 1 left!

0

19

Poulan 545081832

Gasket (Carb / Adapter) (gasket kit)

$17.99

$

Usually ships in 3-10 days

0

20

Poulan 545081832

O-Ring (Adapter / Cylinder) (gasket kit)

$17.99

$

Usually ships in 3-10 days

0

21

Poulan 545081864

Kit - Piston / Connecting Rod

Note: (Incl. 22,23,24)

$53.99

$

In Stock, only 1 left!

0

22

Poulan 530012472

Ring - Piston
(Superseded to 545154009)

$4.99

$

In Stock, only 2 left!

0

23

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 1 left!

0

24

Poulan 545081865

Kit - Assy. Connecting Rod
(Superseded to 545156002)

$34.99

$

Usually ships in 3-10 days

0

25

Poulan 545158001

Module - Ignition
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

26

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

27

Poulan 545127601

Assy - Wire Harness

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 545081832

O-Ring (Cyl./Crankcase) (gasket kit)

$17.99

$

Usually ships in 3-10 days

0

29

Poulan 530015828

Washer

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 530054115

Assy - Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

31

Poulan 530015941

Retainer - Crankshaft

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530055728

Bearing - Outer

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 530019264

Seal

$7.49

$

In Stock, only 1 left!

0

34

Poulan 530032125

Bearing - Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

35

Poulan 530012582

Assy - Crankcase

Note: (Incl. 32,33,34)

$37.99

$

Usually ships in 3-10 days

0

36

Poulan 545102102

Assy - Crankcase & Crankshaft

Note: (Incl. 31,35)

$

$

Not available

37

Poulan 545081832

O-Ring (Rear Plug) (gasket kit)

$17.99

$

Usually ships in 3-10 days

0

38

Poulan 530057954

Assy - Rear Plug

Note: (Incl. 37)

$5.99

$

In Stock, only 1 left!

0

39

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

40

Poulan 545081832

Kit - Gasket

Note: (Incl. 5,19,20,28,37)

$17.99

$

Usually ships in 3-10 days

0
