BVM 200 VS - Poulan Pro Blower Vacuum (2010) ENGINE Parts Diagram

Blower Vacuum

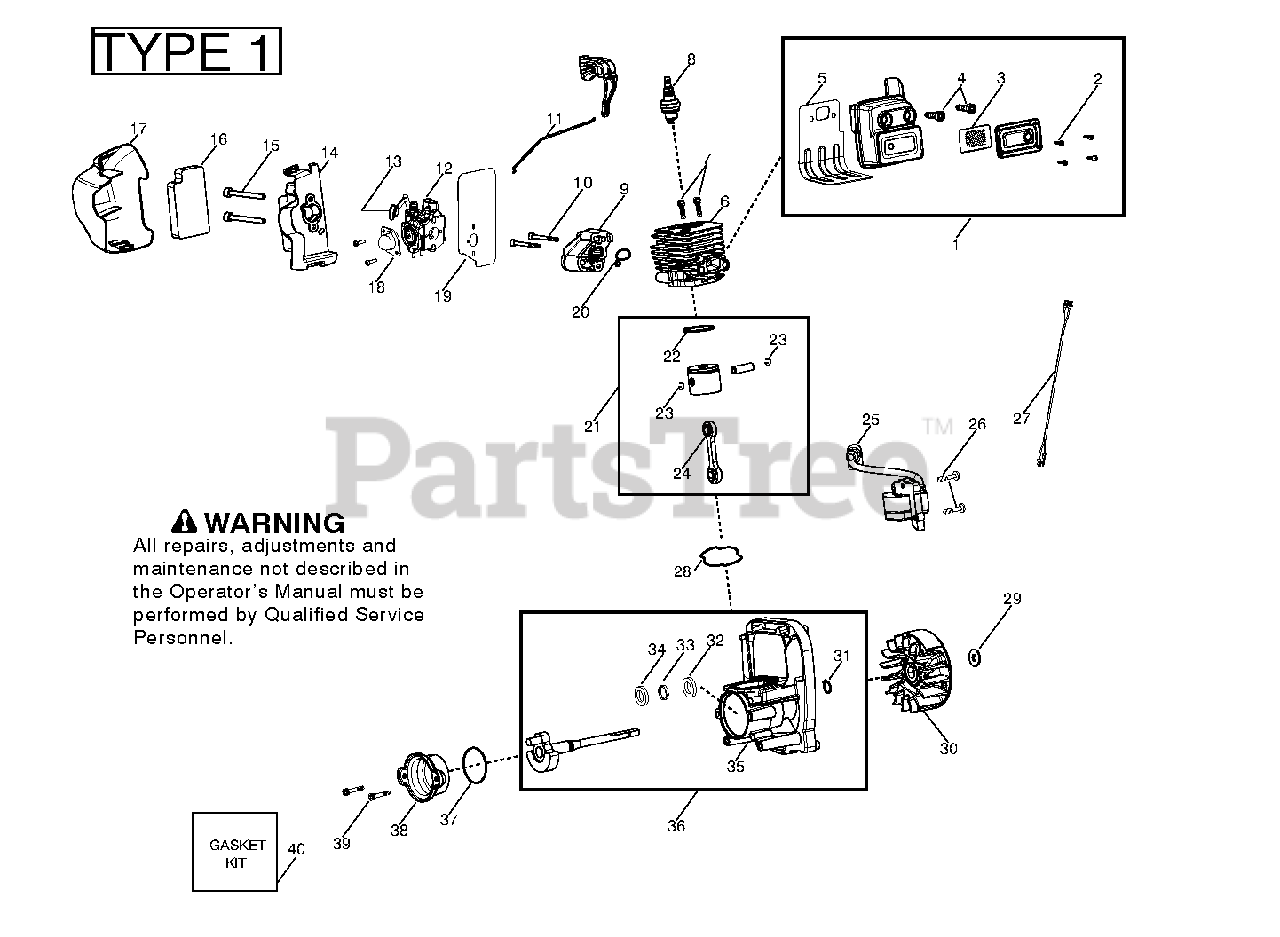

ENGINE Parts Diagram

  • Title

1

Poulan 545090001

ASSY MUFFLER
(Superseded to 525592801)

Note: . 2 3 4 5

$51.99

$

In Stock, only 1 left!

0

2

Poulan 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 545081845

KIT SPARK SCREEN
(Superseded to 525592801)

$51.99

$

In Stock, only 1 left!

0

4

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 8

0

5

Poulan 545081832

KIT GASKET 25CC

Note: GASKET KIT

$17.99

$

Usually ships in 3-10 days

0

6

Poulan 545115301

CYLINDER CHROME 25CC

$

$

Not available

7

Poulan 530015953

SCREW

$6.49

$

In Stock, Qty 7

0

8

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

Note: RCJ-6Y

$4.99

$

In Stock, Qty 20+

0

9

Poulan 545084901

ADAPTER CARBURETOR

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 545115501

LINKAGE THROTTLE

$6.49

$

In Stock, only 1 left!

0

12

Poulan 545081855

KIT CARBURETOR WT-875A

Note: . 13 18

$125.99

$

In Stock, only 4 left!

0

13

Poulan 545157102

CHOKE LEVER

Note: GOLD

$5.99

$

Usually ships in 3-10 days

0

13

Poulan 545157103

LEVER CHOKE WT-875

Note: RED

$9.99

$

Usually ships in 3-10 days

0

14

Poulan 545112603

BASE AIRBOX RED

$

$

Not available

15

Poulan 530016429

SCREW

$6.49

$

In Stock, Qty 6

0

16

Poulan 545116801

AIR FILTER FOAM

$5.99

$

In Stock, only 3 left!

0

17

Poulan 545112702

COVER AIRBOX BLACK

$6.99

$

Usually ships in 3-10 days

0

18

Poulan 530035497

PURGE BULB 188-16

Note: WALBRO 188-16

$9.49

$

In Stock, only 1 left!

0

19

Poulan 545081832

KIT GASKET 25CC

Note: CARB / ADAPTER GASKET KIT

$17.99

$

Usually ships in 3-10 days

0

20

Poulan 545081832

KIT GASKET 25CC

Note: ADAPTER /CYLINDER GASKET KIT

$17.99

$

Usually ships in 3-10 days

0

21

Poulan 545081864

KIT PISTON CONN ROD

Note: . 22 23 24

$53.99

$

In Stock, only 1 left!

0

22

Poulan 530012472

RING-PISTON
(Superseded to 545154009)

$4.99

$

In Stock, only 1 left!

0

23

Poulan 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

24

Poulan 545081865

KIT PISTON CONN ROD FORGED
(Superseded to 545156002)

$34.99

$

Usually ships in 3-10 days

0

25

Poulan 545158001

KIT MODULE W/0 INTERRUPT
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

26

Poulan 530016357

SCREW

$6.49

$

In Stock, only 4 left!

0

27

Poulan 545127601

HARNESS WIRE

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 545081832

KIT GASKET 25CC

Note: CYLINDER /CRANKCASE GASKET KIT

$17.99

$

Usually ships in 3-10 days

0

29

Poulan 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 530054115

FLYWHEEL
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

31

Poulan 530015941

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 530019264

SEAL

$7.49

$

In Stock, only 1 left!

0

34

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

35

Poulan 530012582

ASSY CRANKCASE

Note: . 32 33 34

$37.99

$

Usually ships in 3-10 days

0

36

Poulan 545102102

ASSY CRANKCASE & CRANKSHAFT

Note: . 31 35

$

$

Not available

37

Poulan 545081832

KIT GASKET 25CC

Note: REAR PLUG GASKET KIT

$17.99

$

Usually ships in 3-10 days

0

38

Poulan 530057954

ASSY REAR PLUG

Note: . 37

$5.99

$

In Stock, only 1 left!

0

39

Poulan 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

40

Poulan 545081832

KIT GASKET 25CC

Note: . 5 19 20 28 37

$17.99

$

Usually ships in 3-10 days

0
