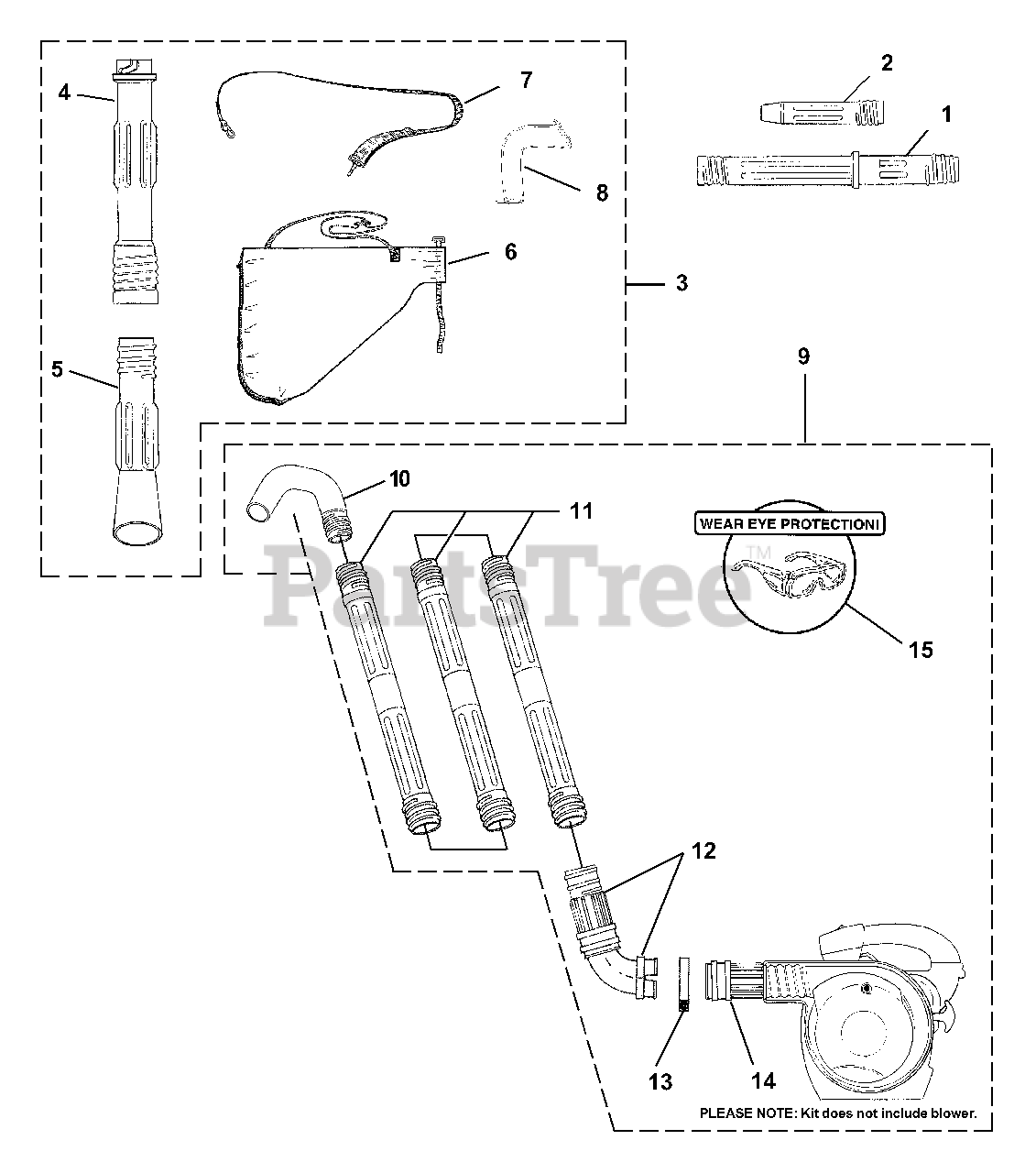

BVM 160 (UT-08091) - Homelite Blower Tubes - Strap - Accessories Parts Diagram

Blower

Tubes - Strap - Accessories Parts Diagram

  • Title

1

Homelite UP04317

Tube, Blower
(Superseded to 07538)

$

$

Not available

2

Homelite UP04324

Nozzle, Blower
(Superseded to 08113)

$7.99

$

Usually ships in 3-7 days

0

3

Homelite A09293

Vacuum Kit
(Superseded to A09293A)

$

$

Not available

4

Homelite UP04328

Vac Tube, Upper
(Superseded to 08201B)

$

$

Not available

5

Homelite UP04329

Vac Tube, Lower
(Superseded to 580561001)

$

$

Not available

6

Homelite UP04548

Bag
(Superseded to PS02375)

$

$

Not available

7

Homelite UP06723

Shoulder Strap
(Superseded to 96337C)

$

$

Not available

8

Homelite UP06902

Air Deflector

$

$

Currently unavailable

9

Homelite A02514D

Gutter Maintenance Kit
(Superseded to A07069A)

$

$

Not available

10

Homelite UP06830

Full Elbow
(Superseded to 07543)

$

$

Not available

11

Homelite UP05618

Straight Tube
(Superseded to 07498)

$

$

Not available

12

Homelite UP06836

Upper Elbow & Swivel Adapter
(Superseded to A07627A)

$16.99

$

Usually ships in 3-7 days

0

13

Homelite UP03821

Large Clamp
(Superseded to 348005003)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite UP06868

Adapter
(Superseded to 08711A)

$6.99

$

Usually ships in 3-7 days

0

15

Homelite UP06835

Safety Glasses - Clear
(Superseded to 02557A)

$

$

Not available

Homelite 18416

Electronic Tachometer

Note: Special Tools

$

$

Not available

Homelite 18774

Fuel Mix Tester

Note: Special Tools

$

$

Not available

Homelite 23488C

Thread Locking Compound

Note: Special Tools

$

$

Not available

Homelite 2498203

T25 Torx Bit 6" Long
(Superseded to UP06544)

Note: Special Tools

$

$

Currently unavailable

Homelite 94194

Compression Tester

Note: Special Tools

$

$

Not available

Homelite JA313164

Spark Tester

Note: Special Tools

$

$

Currently unavailable
