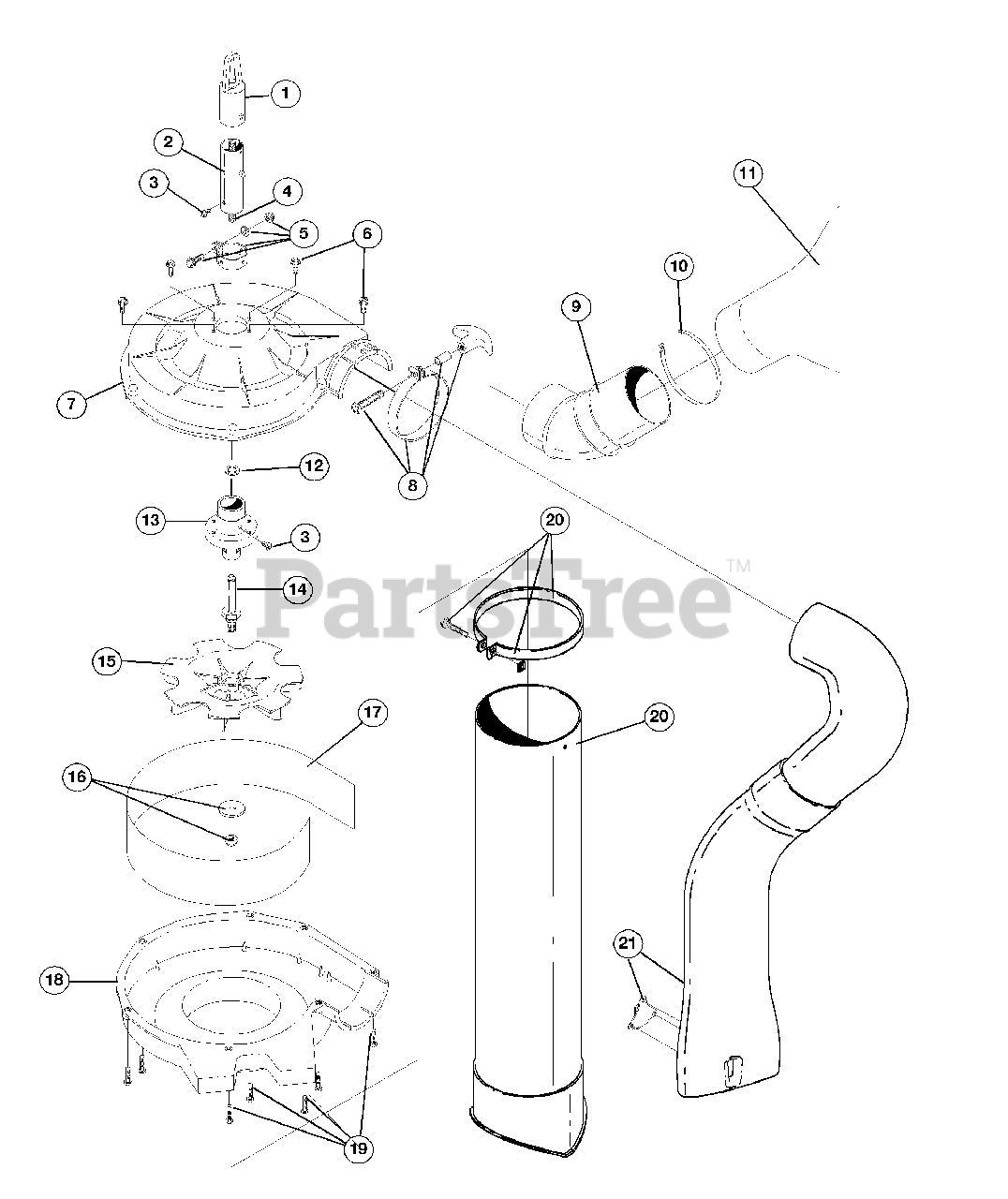

BV 720 R (41AJBV-A034) - Ryobi Trimmer Plus Blower Vacuum Attachment Replacement Parts Parts Diagram

Trimmer Plus Blower Vacuum Attachment

Replacement Parts Parts Diagram

  • Title

1

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

2

MTD 791-180917

Boom Assembly

$

$

Not available

3

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

4

MTD 791-683882

Drive Shaft Assembly

$

$

Not available

5

MTD 791-153597

Lower Clamp Assembly

Note: (includes 3)

$

$

Not available

6

MTD 791-181853

Mounting Screw

$

$

Not available

7

MTD 791-180107

Upper Housing

$

$

Not available

8

MTD 791-683884

Clamp Assembly

$

$

Not available

9

MTD 791-612929

Adapter

$

$

Not available

10

MTD 791-612930

Clamp

$10.99

$

Usually ships in 3-6 days

0

11

MTD 791-180108

Vacuum Bag Assembly

Note: (includes items 9 and 10)

$

$

Not available

12

MTD 791-181560

Palnut
(Superseded to 753-04348)

$6.99

$

Usually ships in 3-6 days

0

13

MTD 791-181636

Bushing Housing Assembly

$

$

Not available

14

MTD 791-612931

Impeller Shaft

$

$

Not available

15

MTD 791-180197

Impeller

$

$

Not available

16

MTD 791-683887

Nut and Washer Assembly

$

$

Not available

17

MTD 791-181586

Shield

$

$

Not available

18

MTD 791-180109

Lower Housing

$

$

Not available

19

MTD 791-181345

Mounting Screw

$4.49

$

In Stock, Qty 20+

0

20

MTD 753-1215

Vacuum Tube Assembly

$

$

Not available

21

MTD 791-181641

Blower Tube Assembly

$

$

Not available
