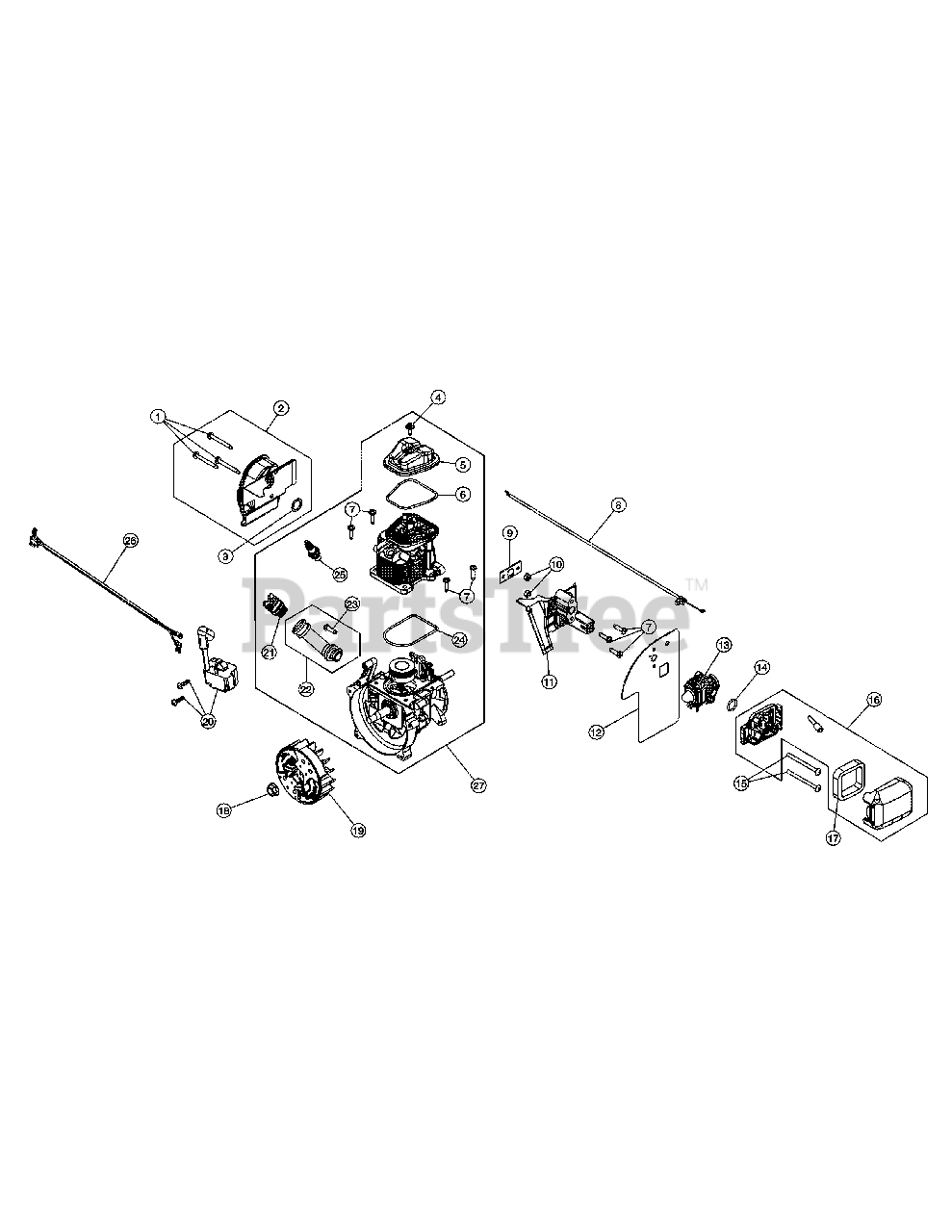

BV 428 (41AS4BVG012) - Cub Cadet Handheld Blower (2012) Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04487

Muffler Screws
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

2

Cub Cadet 753-05900

Muffler Assembly (Incl. 1 & 3)

$27.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

4

Cub Cadet 791-181025

Screw

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05902

O-Ring

$5.49

$

In Stock, Qty 11

0

7

Cub Cadet 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

8

Cub Cadet 753-05903

Throttle Cable

$16.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-05673

Insulator Gasket

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05904

Insulator

$8.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-05905

Carburetor Gasket

$10.99

$

In Stock, Qty 6

0

13

Cub Cadet 753-05908

Carburetor

$

$

Not available

14

Cub Cadet 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

15

Cub Cadet 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 753-04223

Air Cleaner Assembly (Incl. 17)

$30.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04137

Nut

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-05906

Flywheel Asssembly

$

$

Not available

20

Cub Cadet 753-05907

Module

$52.99

$

In Stock, only 1 left!

0

21

Cub Cadet 753-05400

Oil Plug
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

22

Cub Cadet 753-05682

Oil Fill Tube (Incl. 23)

$10.99

$

In Stock, only 1 left!

0

23

Cub Cadet 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 753-05910

O-Ring

$3.49

$

In Stock, only 1 left!

0

25

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 5

0

26

Cub Cadet 753-05911

Lead Wire

$5.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-06677

Short Block Assembly

Note: (Incl. 4-7 & 21-25)

$122.99

$

Usually ships in 3-6 days

0
