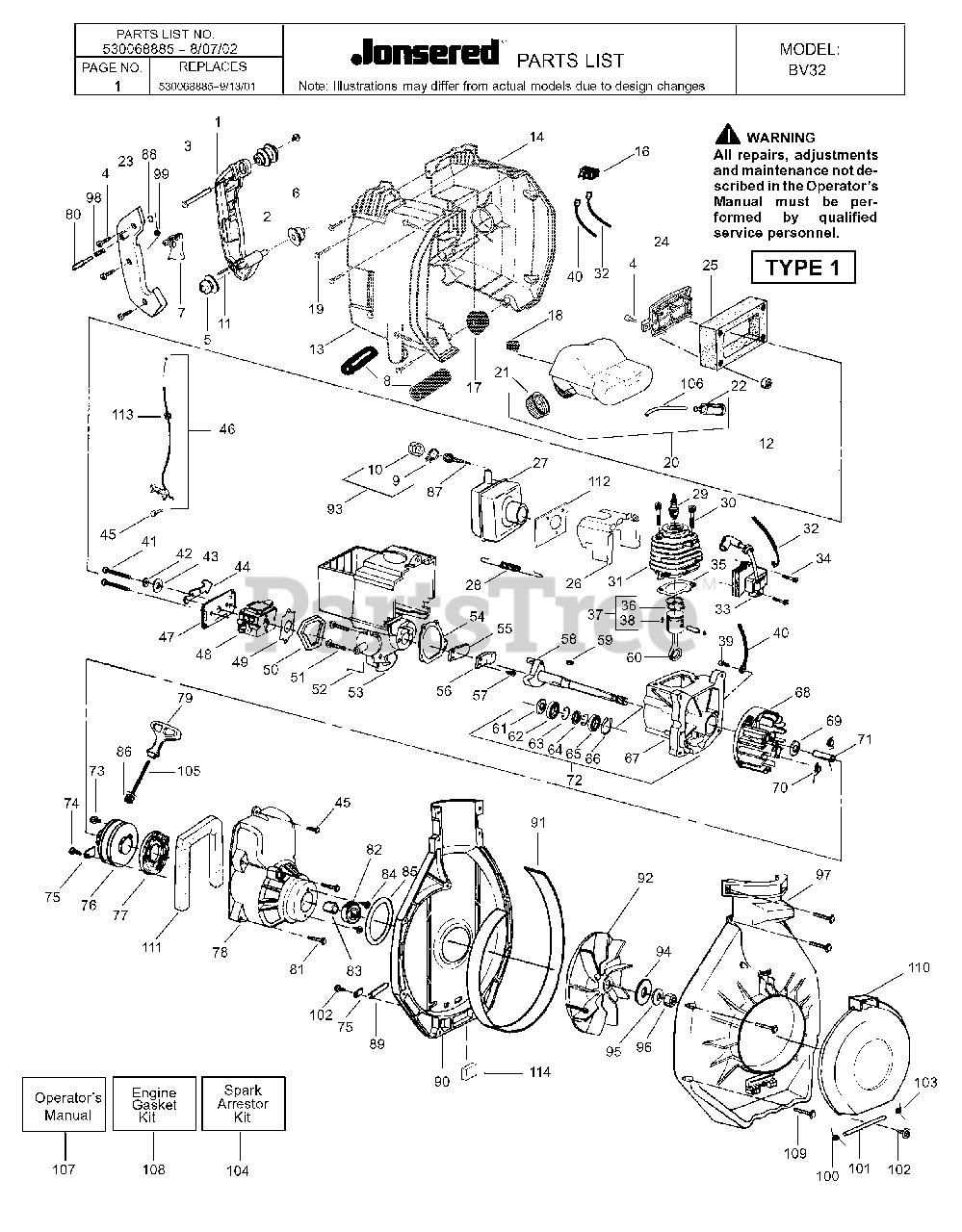

BV 32 - Jonsered Blower/Vacuum (2002-08) ENGINE Parts Diagram

Blower/Vacuum

ENGINE Parts Diagram

  • Title
1

Jonsered 530094712

HANDLE (BLACK)
(Superseded to 530069863)

$

$

Not available

2

$

$

Not available

3

Jonsered 530029111

SPACER-ISOLATOR

$1.99

$

Usually ships in 3-10 days

0

4

Jonsered 530015635

SCREW-10-14X5/8 PHIL.FI

$5.99

$

In Stock, only 4 left!

0

5

Jonsered 530029130

ISOLATOR-HANDLE (REAR)

$3.99

$

In Stock, only 1 left!

0

6

Jonsered 530015813

SCREW-10-24 X 3/8

$0.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

$

$

Not available

9

Jonsered 530029228

CLAMP-SPARK ARRESTOR

$0.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Jonsered 530015840

HANDLE PIN

$0.99

$

Usually ships in 3-10 days

0

12

Jonsered 534790500

LOCKNUT - LINE LIMITER

$3.49

$

In Stock, Qty 6

0

$34.99

$

Usually ships in 3-10 days

0

$34.99

$

Usually ships in 3-10 days

0

16

$9.49

$

In Stock, only 3 left!

0

17

Jonsered 530029129

ISOLATOR-ENGINE MOUNT

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 530029295

ISOLATOR-TANK

$0.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 16

0

20

Jonsered 530014162

ASSY-FUEL TANK W/RETAIN

$

$

Not available

21

Jonsered 530014347

CAP ASSY W/ RETAINER

$9.49

$

In Stock, Qty 15

0

22

Jonsered 530095646

FUEL PICK-UP ASSY

Note: PART NUMBER CHANGE

$6.99

$

In Stock, Qty 20+

0

23

Jonsered 530014160

ASSY-COVER & THROTTLE LOCK

$

$

Not available

$1.99

$

Usually ships in 3-10 days

0

25

Jonsered 530029112

AIR FILTER

$

$

Not available

26

Jonsered 530029404

AIR BAFFLE

$2.99

$

Usually ships in 3-10 days

0

27

$12.99

$

Usually ships in 3-10 days

0

28

Jonsered 530029116

SPRING-MUFFLER

$1.99

$

Usually ships in 3-10 days

0

29

Jonsered 952030201

No Description Available
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

30

Jonsered 530001624

SCREW 1/4-20 X 7/8

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 530069628

CYLINDER
(Superseded to 530071581)

$78.99

$

Usually ships in 3-10 days

0

$

$

Not available

33

Jonsered 530039137

IGNITION MODULE.

$54.99

$

In Stock, only 1 left!

0

34

Jonsered 530015816

SCREW 8-32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

35

Jonsered 530019178

GASKET-CYL W/ADHESIVE
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

36

Jonsered 530025875

RING-PISTON (HOOKED)

$

$

Not available

37

Jonsered 530069277

KIT-PISTON (32CC)

$54.99

$

Usually ships in 3-10 days

0

38

Jonsered 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

39

Jonsered 530015306

SCREW(10-24 X 7/16 HEX

$3.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

42

$3.99

$

In Stock, only 2 left!

0

43

Jonsered 530015852

CHOKE SPACER

$3.49

$

In Stock, only 1 left!

0

44

Jonsered 530029114

SHUTTER-CHOKE

$

$

Not available

45

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

46

Jonsered 530037492

THROTTLE CABLE

$

$

Not available

47

Jonsered 530029115

PLATE-AIR FILTER MTG

$1.99

$

Usually ships in 3-10 days

0

48

Jonsered 530069644

CARB ASS'Y WT-141A
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

49

Jonsered 530019164

GASKET-CARB

$7.49

$

In Stock, only 2 left!

0

50

Jonsered 530019165

SEAL-FOAM/REED BLOCK

$3.99

$

In Stock, only 2 left!

0

51

Jonsered 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

52

Jonsered 530029113

WIRE-GROUND/STATIC

$0.99

$

Usually ships in 3-10 days

0

53

Jonsered 530047696

REED BLOCK/HEAT SHIELD

$

$

Not available

54

Jonsered 530019166

GASKET-REED BLOCK/C'CAS

$3.99

$

Usually ships in 3-10 days

0

55

Jonsered 530027593

VALVE-REED

$6.49

$

In Stock, only 3 left!

0

56

Jonsered 530027594

REED STOP

$5.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

58

Jonsered 530014033

ASSY-CRANKSHAFT

$27.99

$

Usually ships in 3-10 days

0

59

Jonsered 530015126

KEY-FLYWHEEL

$3.99

$

Usually ships in 3-10 days

0

60

Jonsered 530010960

ASS'Y-CONNECTING ROD

$18.99

$

Usually ships in 3-10 days

0

62

Jonsered 530032103

BEARING-R8 (INNER)

$

$

Not available

63

Jonsered 530015787

RING-RETAINING

$3.99

$

Usually ships in 3-10 days

0

64

Jonsered 530019158

SEAL-CRANKSHAFT

$6.49

$

Usually ships in 3-10 days

0

65

Jonsered 530032102

BEARING-R8 (OUTER)

$

$

Not available

66

Jonsered 530015789

RING-RETAINING (SHAFT)

$4.99

$

Usually ships in 3-10 days

0

67

Jonsered 530014016

ASSY-CRANKCASE

$

$

Not available

68

$

$

Not available

69

Jonsered 530347987

WASHER
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

70

Jonsered 530023817

SPRING STR DOG

$6.49

$

In Stock, Qty 5

0

72

Jonsered 530014156

ASSY-C'CASE & C'SHAFT

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

74

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

75

$7.49

$

In Stock, only 2 left!

0

77

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

Note: PART NUMBER CHANGE

$9.49

$

In Stock, Qty 20+

0

78

Jonsered 530069714

FAN HOUSING KIT

$

$

Not available

79

Jonsered 530027569

HANDLE-STARTER

$6.49

$

Usually ships in 3-10 days

0

80

Jonsered 530029117

BUTTON-THROTTLE LOCK

$

$

Not available

81

Jonsered 530015769

SCREW-10-24X1-3/8-TAPTI

$3.99

$

Usually ships in 3-10 days

0

85

Jonsered 530019167

O-RING SEAL

$

$

Not available

86

Jonsered 530029182

EYELET-FLANGE

$4.99

$

Usually ships in 3-10 days

0

87

Jonsered 530029227

SCREEN-SPARK ARRESTOR

$17.99

$

Usually ships in 3-10 days

0

88

Jonsered 530015702

C CLIP-THROTTLE LOCK

$

$

Not available

89

Jonsered 530029119

TUBE-ROPE RETAINER

$0.99

$

Usually ships in 3-10 days

0

90

Jonsered 530094710

HSG-BLOWER (UPPER) (BL)

$8.99

$

Usually ships in 3-10 days

0

91

Jonsered 530029173

BAND-BLOWER HSG

$6.49

$

Usually ships in 3-10 days

0

92

Jonsered 530047077

ASSY-IMPELLER

Note: PART NUMBER CHANGE

$

$

Not available

93

$

$

Not available

94

Jonsered 530015818

WASHER-IMPELLAR

$1.49

$

Usually ships in 3-10 days

0

95

Jonsered 530015441

WASHER CONICAL

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

97

Jonsered 530047736

BLOWER HOUSING ASSY - BLACK

$

$

Not available

98

Jonsered 530024772

SPRING-THROTTLE

$4.99

$

Usually ships in 3-10 days

0

99

Jonsered 530027597

SPRING-LEVER RETURN

$3.99

$

In Stock, only 4 left!

0

100

Jonsered 530015667

SPRING-TORSION (RIGHT)

$3.99

$

Usually ships in 3-10 days

0

101

Jonsered 530015647

PIN-PIVOT

$1.49

$

In Stock, only 1 left!

0

102

Jonsered 530015815

SCREW-10-16X1/2 HI-LO(S

$3.99

$

In Stock, only 2 left!

0

103

Jonsered 530015672

SPRING-TORSION (LEFT)

$

$

Not available

104

Jonsered 530069348

SPARK ARRESTOR KIT

$

$

Not available

105

$7.49

$

In Stock, Qty 20+

0

106

$7.99

$

In Stock, Qty 20+

0

530083432

Jonsered 530083432

No Description Available

$

$

Not available

530083433

Jonsered 530083433

No Description Available

$

$

Not available

108

Jonsered 530069294

KIT-GASKET

$

$

Not available

109

Jonsered 530015814

SCREW

Note: PART NUMBER CHANGE

$6.49

$

In Stock, Qty 16

0

111

$7.99

$

Usually ships in 3-10 days

0

112

Jonsered 530053346

HEAT SHIELD/AIR DAM
(Superseded to 530058957)

Note: PART NUMBER CHANGE

$6.49

$

In Stock, only 2 left!

0

113

Jonsered 530019168

GROMMET-CARB. BOX

$0.99

$

Usually ships in 3-10 days

0

114

Jonsered 530019253

No Description Available

$

$

Not available

530047885

Jonsered 530047885

DECAL LOWER HOUSING

$

$

Not available
