BV 228 (41BS2BVG812) - Cub Cadet Handheld Blower (2016) General Assembly Parts Diagram

Handheld Blower

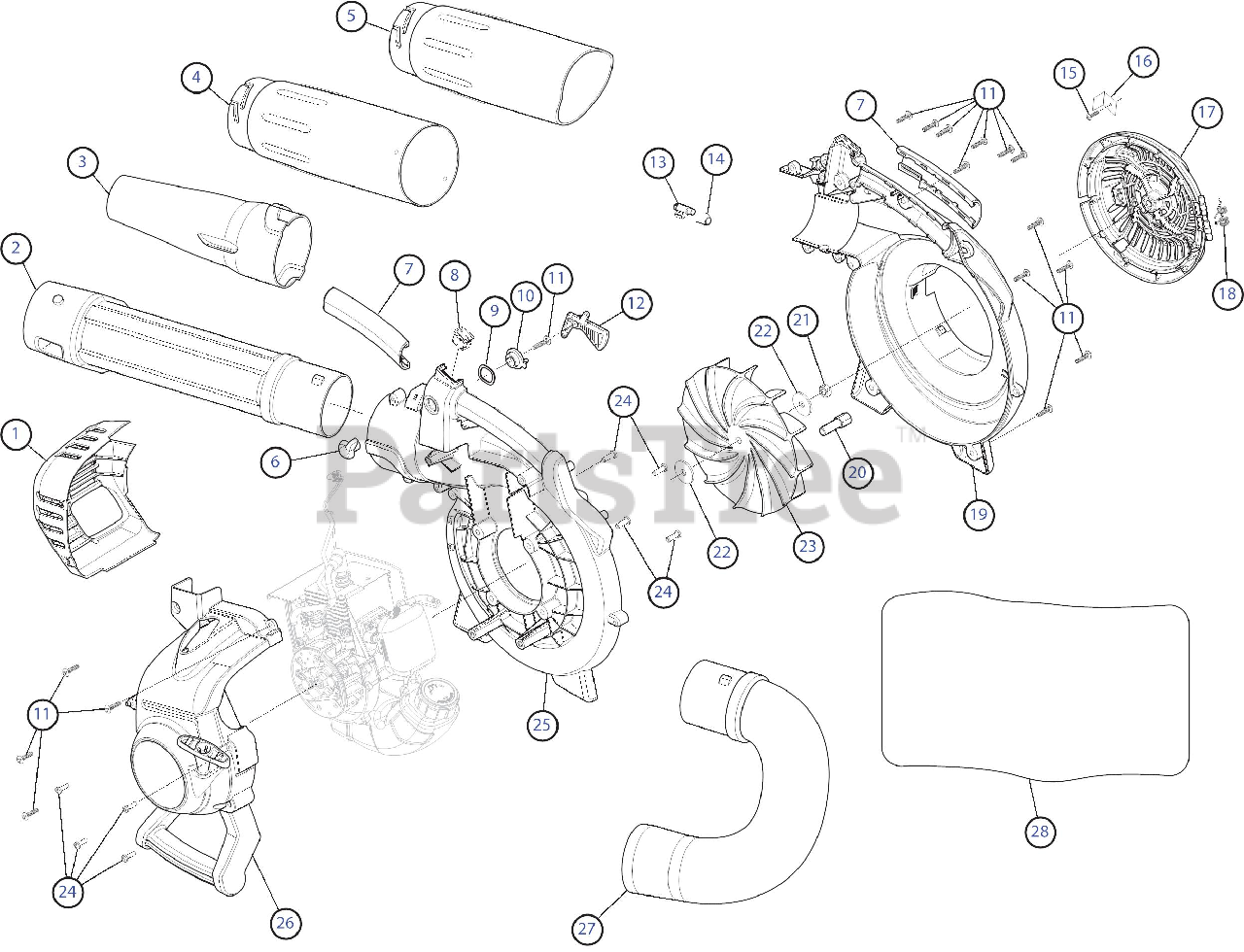

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06694

Muffler Cover Assembly (Incl. 11)

$

$

Not available

2

Cub Cadet 753-05936

Upper Tube

$19.99

$

In Stock, only 1 left!

0

3

Cub Cadet 753-06000

Nozzle

$13.99

$

In Stock, only 2 left!

0

4

Cub Cadet 753-06660

Upper Vac Tube

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-180467

Lower Vac Tube

$38.99

$

In Stock, only 4 left!

0

6

Cub Cadet 753-06980

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-05919

Handle Grips

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

9

Cub Cadet 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-06979

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 753-06981

Throttle Trigger

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-05926

Latch Tube

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05939

Latch Spring

$2.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-06696

Door Lock

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 753-07013

Intake Cover

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-06679

Impeller Housing

$20.99

$

In Stock, only 3 left!

0

20

Cub Cadet 753-06700

Adapter

$5.49

$

In Stock, Qty 7

0

21

Cub Cadet 912-0237

Nut
(Superseded to 712-0237)

$

$

Not available

22

Cub Cadet 753-05928

Washer

$2.99

$

In Stock, only 3 left!

0

23

Cub Cadet 753-05929

Impeller

$13.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

25

Cub Cadet 753-06693

Impeller Housing

$17.99

$

In Stock, only 1 left!

0

26

Cub Cadet 753-08631

Engine Cover Assembly (Incl. 11 & 24)

$26.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-06658

Elbow

$14.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 753-06659

Bag

$17.99

$

In Stock, only 1 left!

0
