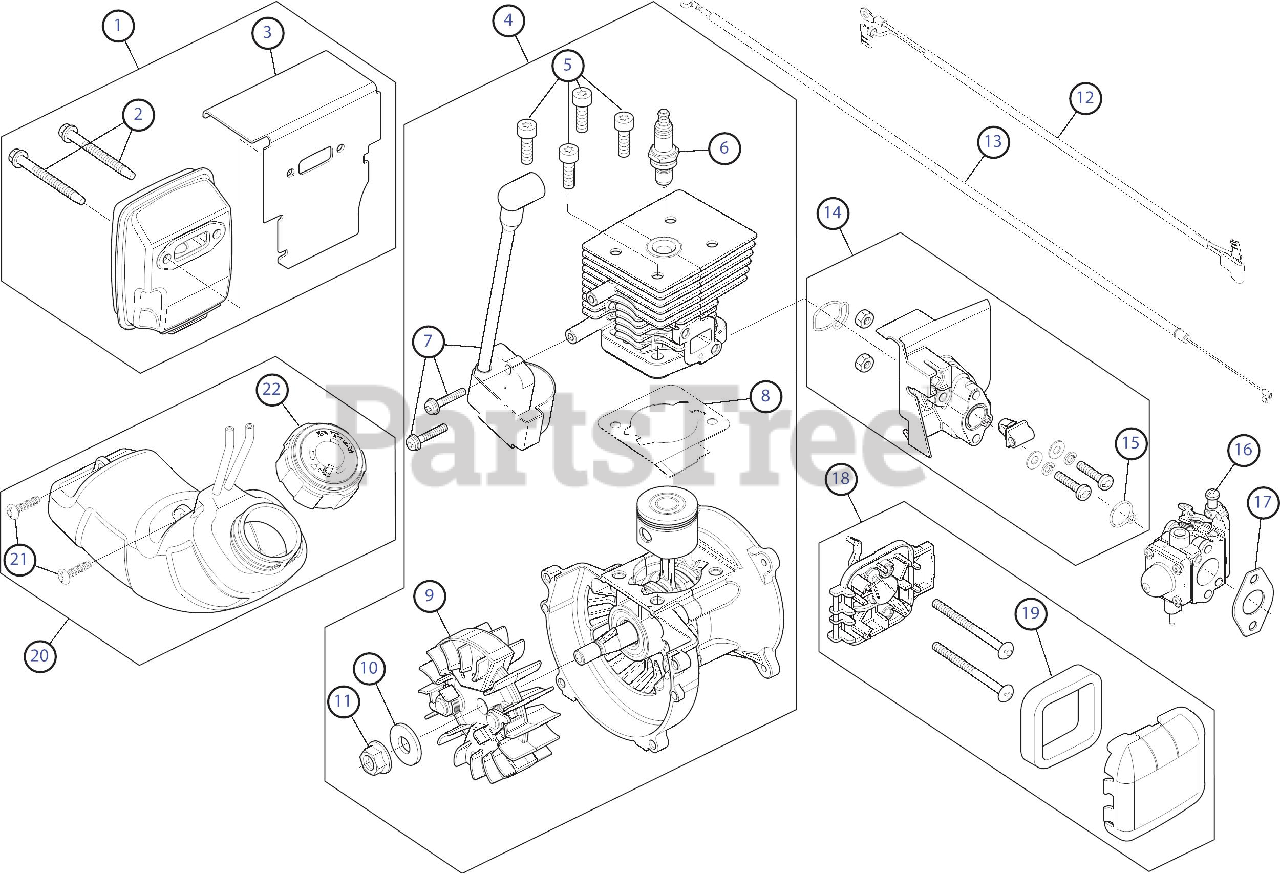

BV 228 (41BS2BVG812) - Cub Cadet Handheld Blower (2016) Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06027

Muffler Assembly (Incl. 2 & 3)

$41.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06294

Muffler Screws

$2.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05946

Muffler Gasket

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-06687

Shortblock Assembly (Incl. 5 - 11)

$93.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04715

Screw

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-08216

Spark Plug
(Superseded to 794-00097)

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 753-08346

Module Assembly

$32.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

9

Cub Cadet 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 2 left!

0

10

Cub Cadet 736-04107

Washer

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 712-04137

Nut

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 753-08260

Lead Wire

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-06690

Throttle Cable

$7.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-06189

Insulator Assembly (Incl. 15)

$7.99

$

In Stock, only 1 left!

0

15

Cub Cadet 753-06185

Insulator O-Ring

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet 753-06753

Carburetor Assembly (Incl. 17)

$37.99

$

In Stock, Qty 6

0

17

Cub Cadet 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 753-07011

Air Cleaner Assembly (Incl. 19)

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-05254

Air Filter

$5.99

$

In Stock, Qty 5

0

20

Cub Cadet 753-06720

Fuel Tank Assembly (Incl. 21 & 22)

$24.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 791-182529

Fuel Cap

$21.99

$

In Stock, only 4 left!

0
