BV 228 (41AS2BVG912) - Cub Cadet Handheld Blower (2014) General Assembly Parts Diagram

Handheld Blower

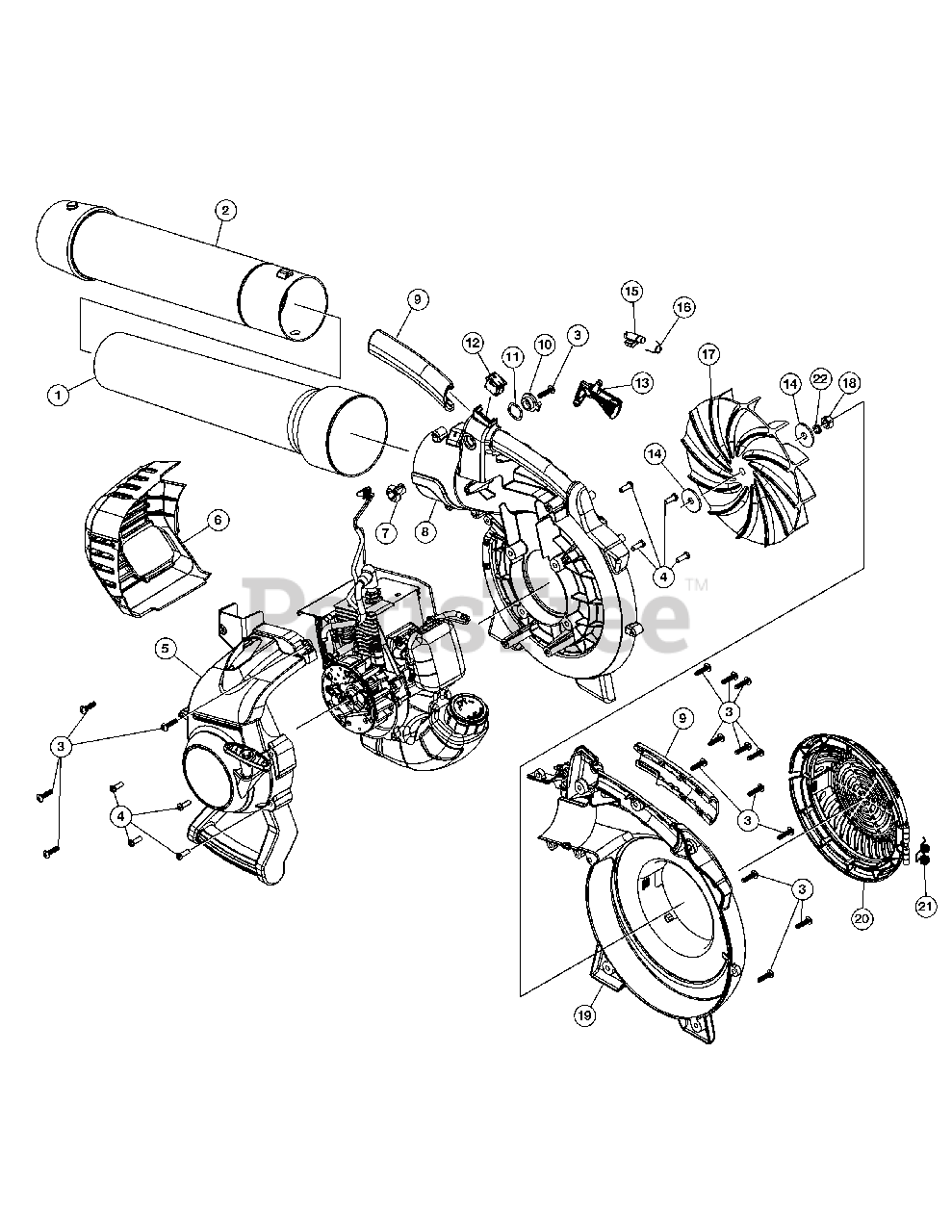

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05937

Lower Tube

$18.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-05936

Upper Tube

$19.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 753-07012

Engine Cover Assembly (Incl. 3 & 4)

$32.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-06694

Muffler Cover Assembly (Incl. 3)

$

$

Not available

7

Cub Cadet 753-06980

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05921

Impeller Housing
(Superseded to 753-06693)

$17.99

$

In Stock, only 1 left!

0

9

Cub Cadet 753-05919

Handle Grips

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-06979

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

13

Cub Cadet 753-06981

Throttle Trigger

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-06806

Spacer

$3.49

$

In Stock, Qty 6

0

15

Cub Cadet 753-05926

Latch Tube

$2.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-05939

Latch Spring

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 753-05929

Impeller

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-05927

Nut

$3.49

$

In Stock, only 4 left!

0

19

Cub Cadet 753-06679

Impeller Housing

$20.99

$

In Stock, only 3 left!

0

20

Cub Cadet 753-07013

Intake Cover

$7.49

$

In Stock, only 1 left!

0

21

Cub Cadet 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-04110A

Lock Washer

$5.49

$

In Stock, only 1 left!

0
