BV 2000 - Weed Eater Barracuda Blower Vacuum, Type 1 Engine Assembly Type 1 Parts Diagram

Barracuda Blower Vacuum, Type 1

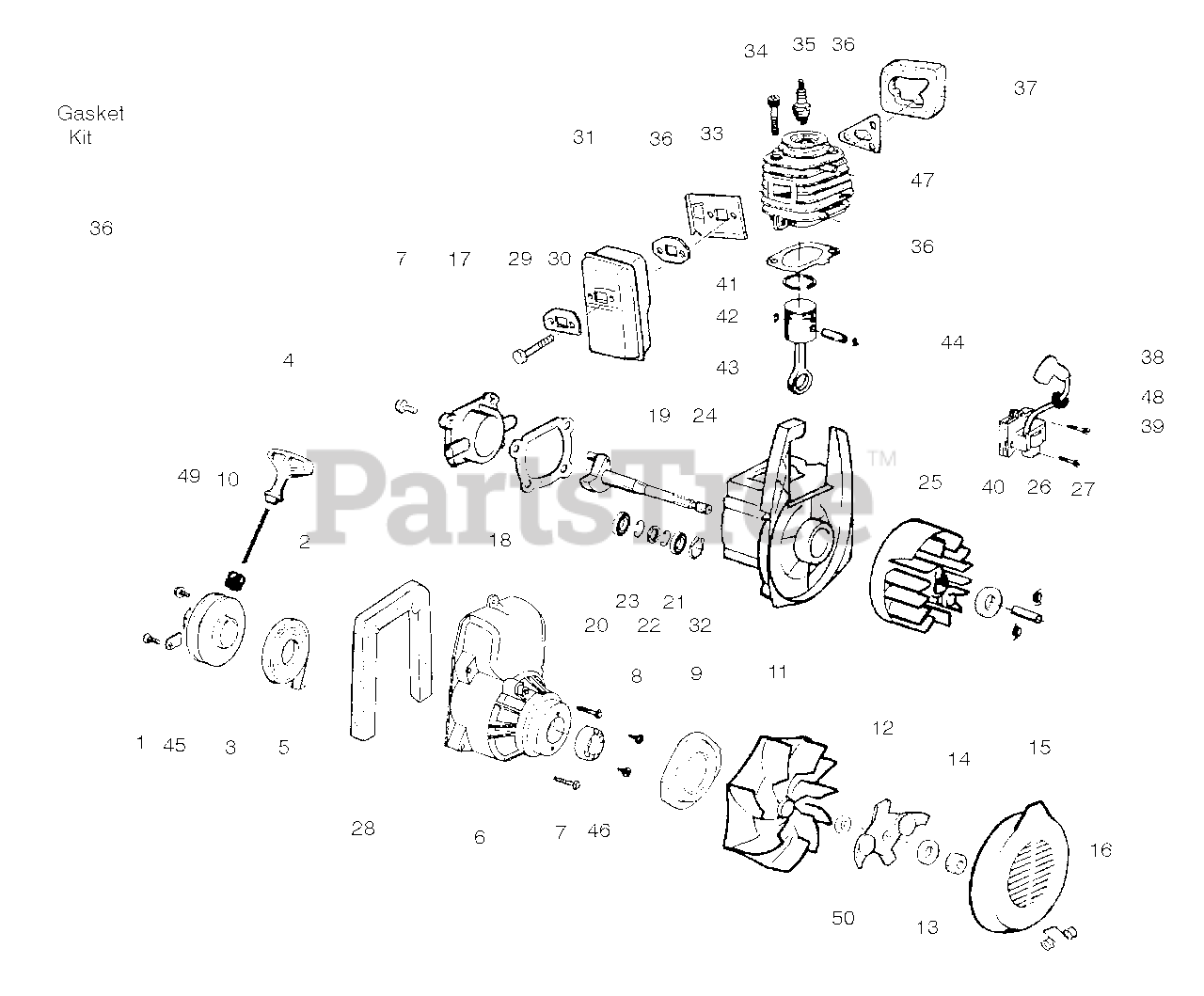

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

3

Poulan 530069885

Starter Pulley Kit

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 530049488

Starter Handle

$3.99

$

In Stock, only 1 left!

0

5

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$10.99

$

In Stock, Qty 8

0

6

Poulan 530054114

Fan Housing

$20.99

$

Usually ships in 3-10 days

0

7

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

8

Poulan 530015815

Screw

$3.99

$

In Stock, only 2 left!

0

9

Poulan 530019240

O-Ring

$

$

Not available

10

Poulan 530029182

Eyelet

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530069817

Impeller

Note: (Incl. 10)

$

$

Not available

12

Poulan 530095461

Mulch Blade Ass'y. Model 2000
(Superseded to 530095355)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530016279

Washer-Flat Model 1850

$3.99

$

In Stock, only 1 left!

0

14

Poulan 530626605

Nut

$5.99

$

Usually ships in 3-10 days

0

15

Poulan 530049313

Inlet Door

$

$

Not available

16

Poulan 530402043

Spring-Return Cover

$4.99

$

In Stock, Qty 5

0

17

Poulan 530049297

Crankcase Cover

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 530019181

Gasket-Crankcase Shroud

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 530049429

Crankshaft Ass'y.

$21.99

$

Usually ships in 3-10 days

0

20

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

22

Poulan 530019179

Crankcase Seal

$

$

Not available

23

Poulan 530015945

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530069818

Crankcase Ass'y.
(Superseded to 530049521)

Note: (Incl. 20-23)

$

$

Not available

25

Poulan 530071268

Flywheel Ass'y.

Note: (Incl. 26)

$

$

Not available

26

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

27

Poulan 530016190

Flywheel Spacer

$

$

Not available

28

Poulan 530049713

Foam Seal

$

$

Not available

29

Poulan 530016203

Muffler Bolt

$3.99

$

In Stock, only 2 left!

0

30

Poulan 530049454

Muffler Cover Plate

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530052241

Muffler Ass'y.

$6.99

$

In Stock, only 1 left!

0

32

Poulan 530015941

Retainer Ring-C'chaft

$4.99

$

In Stock, only 1 left!

0

33

Poulan 530049502

Muffler Shield

$3.99

$

In Stock, only 1 left!

0

34

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 7

0

35

Poulan 530030074

Spark Plug (RCJ-8Y)

$

$

Not available

36

Poulan 530069813

Gasket Kit

$12.99

$

Usually ships in 3-10 days

0

37

Poulan 530019247

Air Dam

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

39

Poulan 530016208

Bolt

$

$

Not available

40

Poulan 530015127

Washer

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 530049903

Piston Ring (2)
(Superseded to 545154001)

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530015162

Retainer

$6.49

$

In Stock, only 2 left!

0

43

Poulan 530069945

Connecting Rod Ass'y.
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

44

Poulan 530069812

Piston Kit
(Superseded to 530071408)

Note: (Incl. 41 & 42)

$

$

Not available

45

Poulan 530016226

Pulley Retainer

$

$

Not available

46

Poulan 530032108

Bearing
(Superseded to 530054114)

$20.99

$

Usually ships in 3-10 days

0

47

Poulan 530069865

Cylinder

$

$

Not available

48

Poulan 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530016080

Screw-Starter Pulley

$6.49

$

In Stock, only 2 left!

0

50

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

Poulan 530084404

Warning Decal

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530069914

Spark Arrestor Kit

Note: Not Shown; (Optional)

$14.99

$

Usually ships in 3-10 days

0
