BV 2000 LE - Poulan Blower, Type 1 (2006-12) Housing - Type 1 Parts Diagram

Blower, Type 1

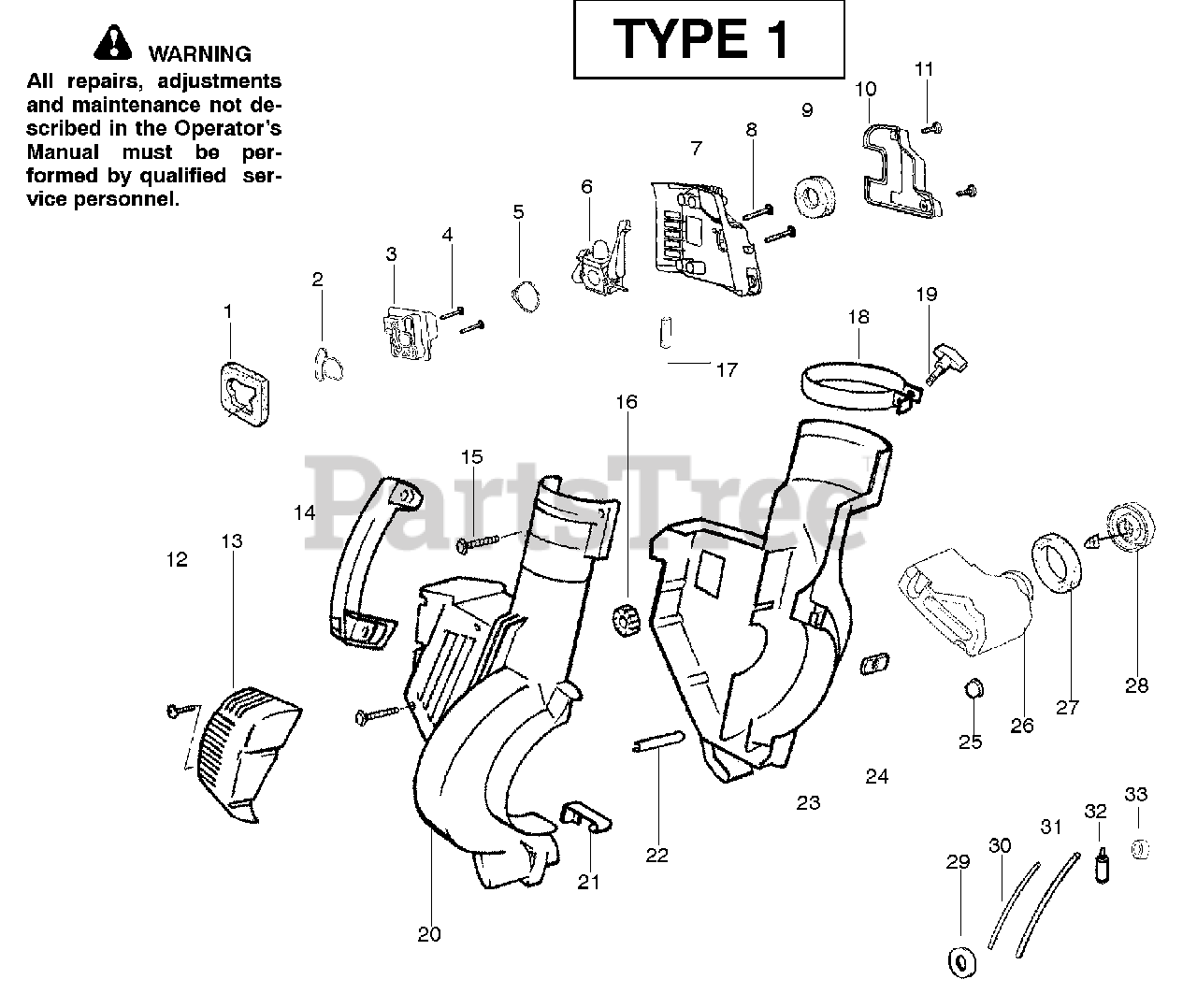

Housing - Type 1 Parts Diagram

  • Title

1

Electrolux/AYP 530071459

Air Dam (kit)

$

$

Not available

2

Electrolux/AYP 530071458

Gasket-Adapter (kit)

$

$

Not available

3

Electrolux/AYP 530035502

Carburetor Adaptor
(Superseded to 530035514)

$

$

Not available

4

Electrolux/AYP 530016309

Screw

$5.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530071458

Gasket-Carburetor (kit)

$

$

Not available

6

Electrolux/AYP 530071465

Kit-Carb Ass'y. (C1Q-W11)

$74.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 530055103

Air Box

$

$

Not available

8

Electrolux/AYP 530016340

Screw-Carb.

$4.99

$

In Stock, Qty 6

0

9

Electrolux/AYP 530049383

Filter-Air

$

$

Not available

10

Electrolux/AYP 530055104

Cover-Air Filter

$

$

Not available

11

Electrolux/AYP 530016354

Screw-Air Box Cover
(Superseded to 530015952)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

13

Electrolux/AYP 530056257

Assy-Muffler Cover

$

$

Not available

14

Electrolux/AYP 530095469

Handle

$

$

Not available

15

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 15

0

16

Electrolux/AYP 530049323

Isolator

$

$

Not available

17

Electrolux/AYP 530071459

Foam 25.4mm (kit)

$

$

Not available

18

Electrolux/AYP 530016324

Clamp-Blower Tube

$

$

Not available

19

Electrolux/AYP 530016322

Knob-Tube Clamp

$3.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530055146

Housing-Right

$25.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530402044

Spring-Cover Latch

$

$

Not available

22

Electrolux/AYP 530049617

Guide-Starter Rope

$

$

Not available

23

Electrolux/AYP 530055145

Housing-Left

$25.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530016207

Nut

$

$

Not available

25

Electrolux/AYP 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530049491

Assy-Fuel Tank
(Superseded to 545058007)

$

$

Not available

27

Electrolux/AYP 530049527

Gasket-Fuel Tank

$3.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530049386

Fuel Cap w/Retainer
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530049656

Grommet-Shroud

$

$

Not available

30

Electrolux/AYP 530069247

Kit-Line Carb/Purge

$7.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 530069216

Kit-Line Tank/Purge

$11.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 530071459

Grommet-Fuel line (kit)

$

$

Not available

33

Electrolux/AYP 530086692

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530084404

Warning Decal

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530055358

Decal-Start Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
