BV 200 LE - Weed Eater Blower Vacuum, Type 1 Engine Assembly Type 1 Parts Diagram

Blower Vacuum, Type 1

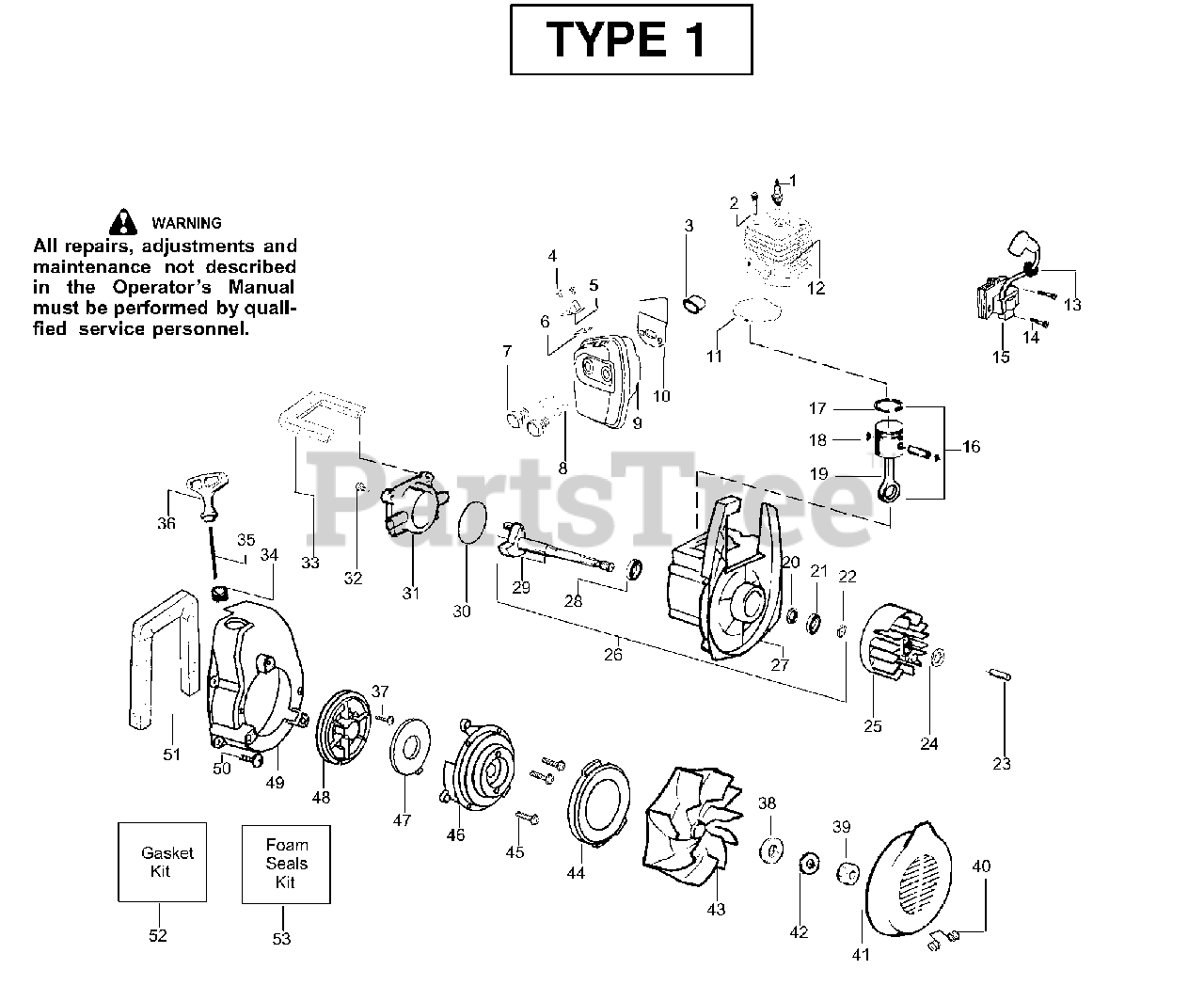

Engine Assembly Type 1 Parts Diagram

  • Title
1

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 7

0

3

Poulan 530055191

Insulator-Heat

$

$

Not available

$2.49

$

In Stock, only 2 left!

0

5

Poulan 530055241

Deflector-Muffler

$4.99

$

In Stock, only 1 left!

0

6

Poulan 530071461

Kit-Spark Screen

Note: (Incl. #4)

$

$

Not available

7

Poulan 530016369

Bolt-Muffler-external

$3.99

$

In Stock, only 2 left!

0

8

Poulan 530016341

Screw-Muffler-Internal

$

$

Not available

9

Poulan 530071460

Kit-Muffler

Note: (Incl. 4-6,8,10)

$

$

Not available

10

Poulan 530071458

Gasket-Baffle (kit)

$

$

Not available

11

Poulan 530071458

Gasket-Cylinder (kit)

$

$

Not available

12

Poulan 530071457

Kit-Cylinder

$

$

Not available

13

Poulan 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530016357

Screw-Ignition Module

$6.49

$

In Stock, only 4 left!

0

15

Poulan 530035505

Ignition Module

$47.99

$

In Stock, only 3 left!

0

16

Poulan 530071357

Kit-Piston
(Superseded to 530071833)

Note: (Incl. 17 & 18)

$37.99

$

Usually ships in 3-10 days

0

17

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

18

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

19

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

20

Poulan 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

21

Poulan 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

22

Poulan 530015941

Retainer Ring-C'chaft

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 530016190

Spacer-Flywheel

$

$

Not available

24

$4.99

$

In Stock, only 3 left!

0

25

Poulan 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

26

Poulan 530071456

Assy-Crankcase/Crankshaft

Note: (Incl. 22,27,29)

$

$

Not available

27

Poulan 530012440

Assy-Crankcase

Note: (Incl. 20,21,28)

$

$

Not available

28

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

29

Poulan 530012452

Assy-Crankshaft

$33.99

$

Usually ships in 3-10 days

0

30

Poulan 530071458

O-ring-C/case (kit)

$

$

Not available

31

Poulan 530012443

Cover-Crankcase

$

$

Not available

32

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

33

Poulan 530071459

Foam-219mm (kit)

$

$

Not available

34

Poulan 530029182

Eyelet-Flange

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 530071467

Kit-Rope

$7.49

$

Usually ships in 3-10 days

0

36

Poulan 530049488

Handle-Starter

$3.99

$

In Stock, only 1 left!

0

37

Poulan 530016326

Screw-Rope

$

$

Not available

38

Poulan 530016279

Washer-Flat

$3.99

$

In Stock, only 1 left!

0

$5.99

$

Usually ships in 3-10 days

0

40

Poulan 530402043

Spring-Return Cover

$4.99

$

In Stock, Qty 5

0

41

Poulan 530049313

Inlet Door

$

$

Not available

42

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

43

Poulan 530069817

Assy-Impeller

$

$

Not available

44

Poulan 530055106

Seal-Ring

$2.49

$

Usually ships in 3-10 days

0

45

$6.49

$

In Stock, only 1 left!

0

46

Poulan 530055101

Housing-Pulley

$

$

Not available

47

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

48

Poulan 530071466

Kit-Starter Pulley
(Superseded to 545150201)

$11.99

$

Usually ships in 3-10 days

0

49

Poulan 530055102

Fan Housing

$

$

Not available

50

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

51

Poulan 530071459

Foam-365mm (kit)

$

$

Not available

52

Poulan 530071458

Kit-Gasket

$

$

Not available

53

Poulan 530071459

Kit-Foam Seals

$

$

Not available
