BV 1850 LE - Weed Eater Barracuda Blower Vacuum, Type 2 Housing Type 2 Parts Diagram

Barracuda Blower Vacuum, Type 2

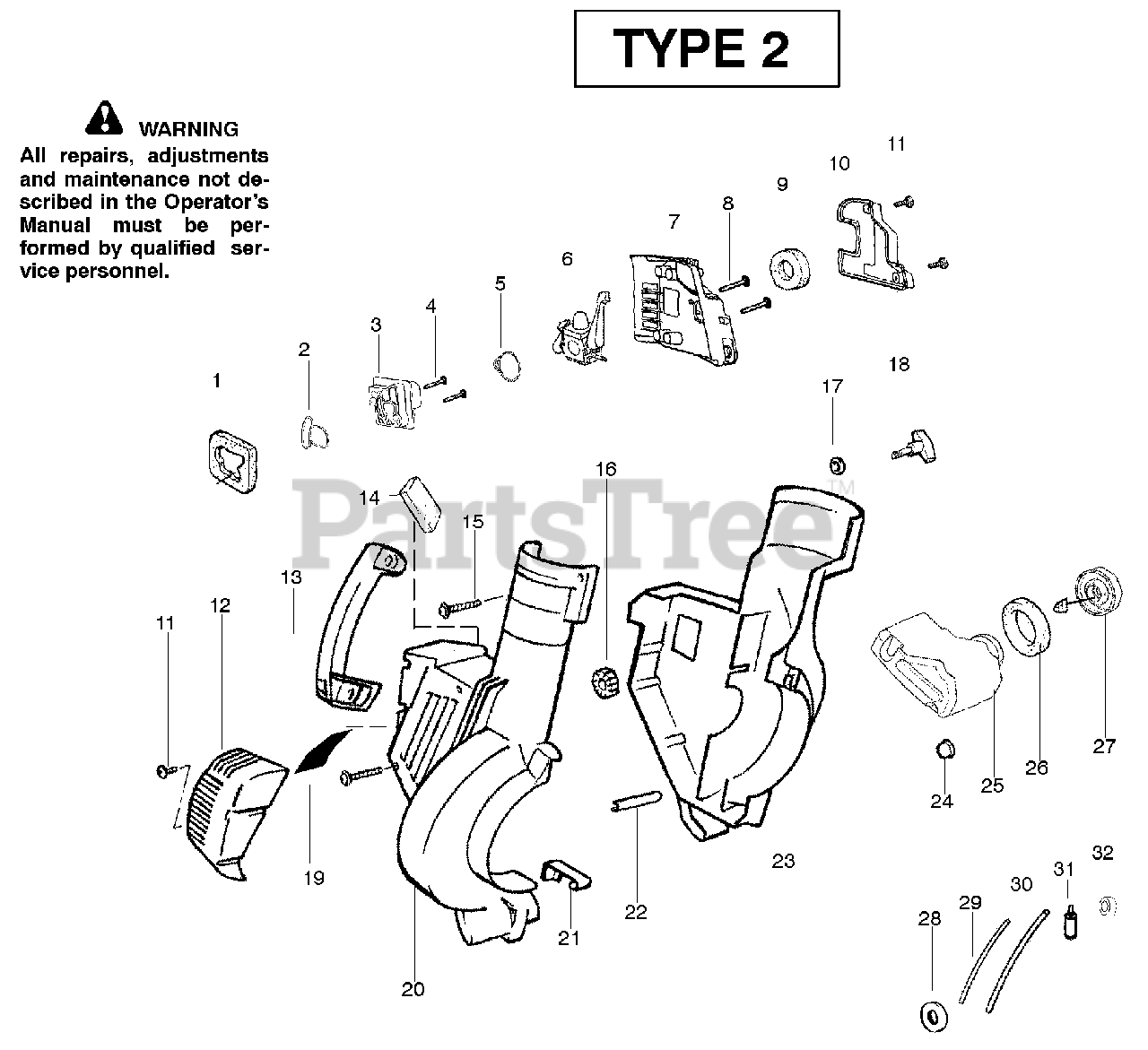

Housing Type 2 Parts Diagram

  • Title
1

Poulan 530071459

Air Dam (kit)

$

$

Not available

2

Poulan 530071458

Gasket-Adapter (kit)

$

$

Not available

3

Poulan 530035502

Carburetor Adaptor

$

$

Not available

$5.99

$

Usually ships in 3-10 days

0

5

Poulan 530071458

Gasket-Carburetor (kit)

$

$

Not available

6

Poulan 530071465

Kit-Carb Ass'y. (C1Q-W11C)

$74.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

8

Poulan 530016340

Screw-Carb.

$4.99

$

In Stock, Qty 6

0

9

Poulan 530049383

Filter-Air

$

$

Not available

10

Poulan 530055104

Cover-Air Filter

$

$

Not available

11

$

$

Not available

12

Poulan 530015880

Guard-Muffler

$4.99

$

In Stock, Qty 8

0

13

$

$

Not available

14

Poulan 530095469

Foam - 71.12mm (kit)

$

$

Not available

15

$6.49

$

In Stock, only 3 left!

0

16

Poulan 530049323

Isolator

$

$

Not available

$

$

Not available

18

Poulan 530016324

Knob-Tube Clamp

$

$

Not available

19

Poulan 530016322

Reflector-Heat (kit)

$3.49

$

In Stock, only 3 left!

0

20

Poulan 530055146

Housing-Right

$25.99

$

Usually ships in 3-10 days

0

21

Poulan 530402044

Spring-Cover Latch

$

$

Not available

22

Poulan 530049617

Guide-Starter Rope

$

$

Not available

23

Poulan 530056683

Housing-Left
(Superseded to 530057631)

$24.99

$

Usually ships in 3-10 days

0

24

Poulan 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530049491

Assy-Fuel Tank
(Superseded to 545058007)

$

$

Not available

26

Poulan 530049527

Gasket-Fuel Tank

$3.49

$

Usually ships in 3-10 days

0

27

Poulan 530049386

Fuel Cap w/Retainer
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

28

Poulan 530049656

Grommet-Shroud

$

$

Not available

29

Poulan 530069247

Kit-Line Carb/Purge

$7.99

$

In Stock, Qty 20+

0

30

Poulan 530069216

Kit-Line Tank/Purge

$11.99

$

In Stock, Qty 20+

0

31

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 19

0

32

Poulan 530071459

Grommet-Fuel line (kit)

$

$

Not available

32

Poulan 530165752

Operator Manual

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530057414

Warning Decal

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530057215

Decal-Start Inst.

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
