BTXPV 22700 E (7800822) - Brute 22" Walk-Behind Mower (2011) Wheels Group (7501792) Parts Diagram

22" Walk-Behind Mower

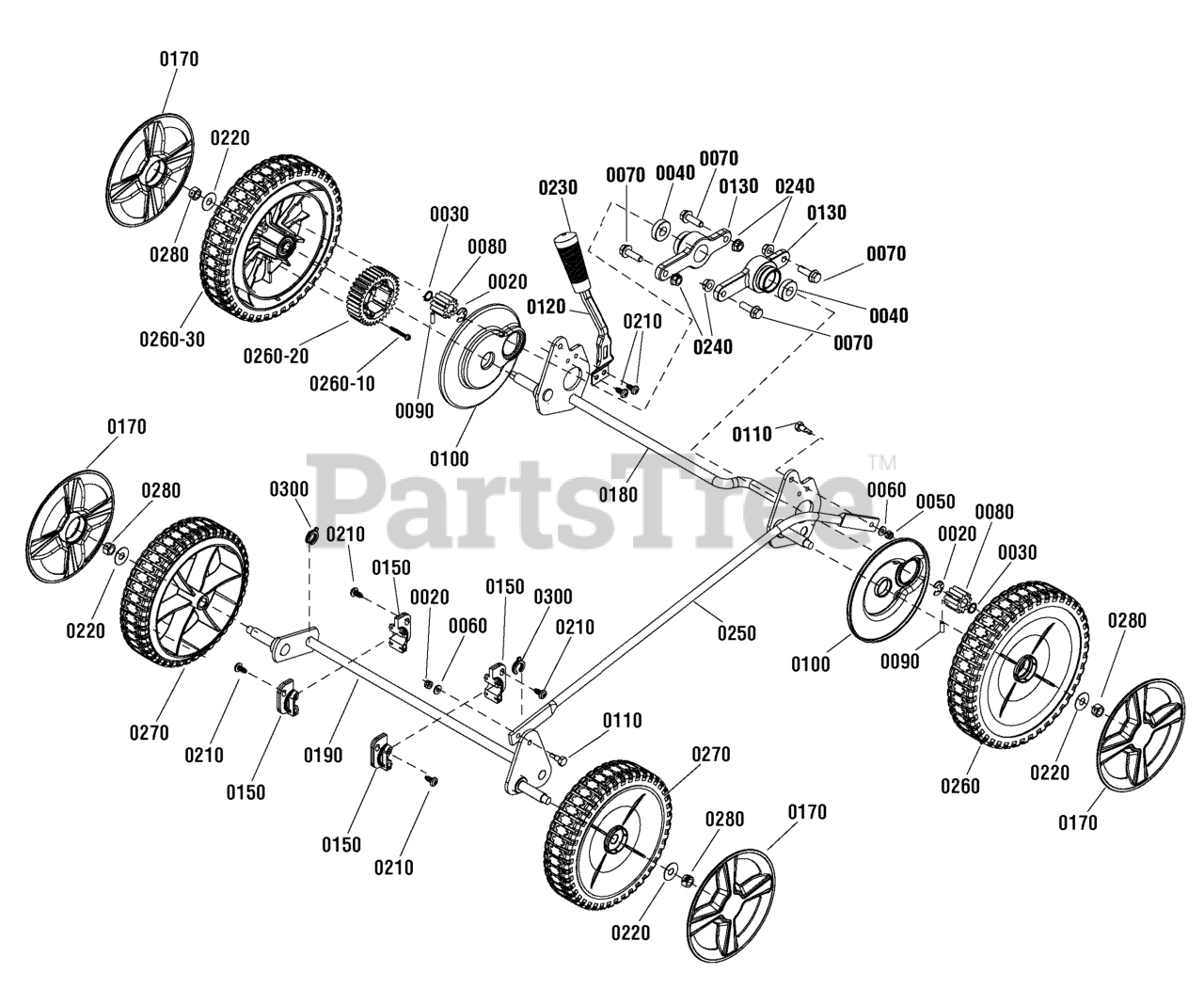

Wheels Group (7501792) Parts Diagram

  • Title

0020

Murray 7014341YP

RETAINING RING, 3.92 EXT.
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

0030

Murray 7027999YP

RETAINING RING, .452-.463 ID

$4.49

$

In Stock, only 4 left!

0

0040

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 18

0

0050

Murray 7091290SM

NUT, Hex Lock, Nylong, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0060

Murray 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 16

0

0070

Murray 7091591SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

0080

Murray 7100820YP

GEAR, Pinion, 11 T

$

$

Not available

0090

Murray 7100861YP

PIN, .187 OD, .625 Long, Axle

$4.99

$

In Stock, only 1 left!

0

0100

Murray 7101367YP

DUST SHIELD, 21" WBM, RD

$7.49

$

In Stock, only 2 left!

0

0110

Murray 7101774YP

BOLT, Shoulder, #10-24 Thread

$8.49

$

In Stock, only 2 left!

0

0120

Murray 7103289YP

LEVER, Spring, Height-Of-Cut

$11.99

$

In Stock, only 2 left!

0

0130

Murray 7103290YP

HOLDER, Bearing, Rear Wheel Drive

$13.99

$

Usually ships in 2-12 days

0

0150

Murray 7104518YP

BUSHING, Bearing, RWD

$4.49

$

In Stock, Qty 20+

0

0170

Murray 7103539YP

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow

$10.99

$

Usually ships in 2-12 days

0

0180

Murray 7400259YP

WELDMENT, Rear Crossbar, RWD

$152.99

$

In Stock, only 1 left!

0

0190

Murray 7400306YP

WELDMENT, Front Axle

$60.99

$

In Stock, only 1 left!

0

0210

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)

$4.49

$

In Stock, Qty 20+

0

0220

Murray 17X169MA

WASHER, Flat, 1
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0230

Murray 671297MA

GRIP, Height-of-Cut

$6.49

$

In Stock, only 1 left!

0

0240

Murray 7091601SM

NUT, Hex Flange Lock, 5/16-18, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0250

Murray 7103306ZYP

ROD, Lifter Link, WBM
(Superseded to 7103306BMYP)

$40.99

$

Usually ships in 2-12 days

0

0260

Murray 7502603YP

WHEEL ASSEMBLY, 9 x 2, External Gear

$49.99

$

In Stock, only 1 left!

0

0260-10

Murray 7091196SM

SCREW, #8 x 1-1/4 Hi-Lo, Hex Washer Self-Tap

$4.99

$

Usually ships in 2-12 days

0

0260-20

Murray 7100914YP

GEAR, 34 T, External Wheel

$10.99

$

Usually ships in 2-12 days

0

0260-30

Murray 7501793YP

Wheel, 9" x 2"

$49.99

$

In Stock, Qty 7

0

0270

Murray 7103541YP

WHEEL, 8" X 2" Idle w/Db Tread, Brute, Satin Black

$40.99

$

Usually ships in 2-12 days

0

0280

Murray 7091585SM

NUT, Hex, Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

0300

Murray 7104525YP

SPACER, Shaft, 1/2"

$4.49

$

In Stock, only 2 left!

0
