BTXPV 22700 E (7800822) - Brute 22" Walk-Behind Mower (2011) Handles Group (7501795) Parts Diagram

22" Walk-Behind Mower

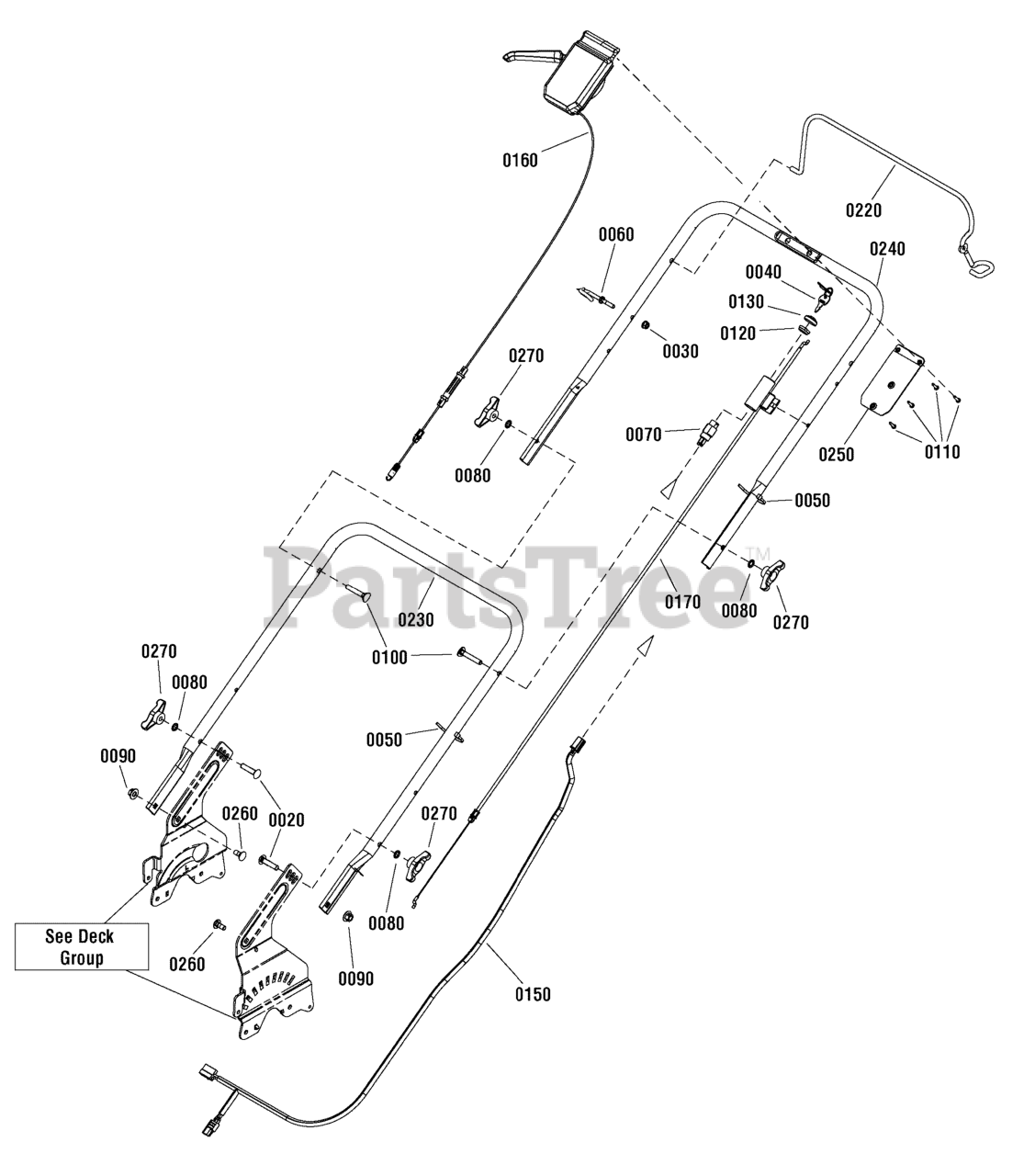

Handles Group (7501795) Parts Diagram

  • Title
0020

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0030

Murray 2860694SM

NUT, Hex Flange, Esna, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7011138YP

IGNITION KEY, Pair

$7.49

$

In Stock, Qty 7

0

0050

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 7028488MA

GUIDE, Rope

$6.49

$

Usually ships in 2-12 days

0

0070

Murray 7028765YP

SWITCH, ES Start / Run
(Superseded to 690646)

$34.99

$

In Stock, Qty 5

0

0080

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

0100

Murray 7091189YP

BOLT, Curved Head Square Neck, 5/16-18 x 2", GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

0110

Murray 7100225YP

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 7100329YP

NUT, Electric Start 5/8-32
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

0130

Murray 7100330YP

CAP, Electric Start

$6.99

$

Usually ships in 2-12 days

0

0150

Murray 7103676YP

WIRING HARNESS, Electric Start

$27.99

$

Usually ships in 2-12 days

0

0160

Murray 7103890YP

CONTROL BOX ASSEMBLY

$

$

Not available

0170

Murray 7103973YP

CABLE, Bail, 21", WBM, Brute, Electric Start

$33.99

$

In Stock, only 1 left!

0

0220

Murray 7101731AMA

BAIL, Brute SP, Operator Presence Control
(Superseded to 7101731BMYP)

$69.99

$

In Stock, only 1 left!

0

0230

Murray 7300592AMA

HANDLE, Lower, 21" Rear Discharge
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

0240

Murray 7300676AMA

HANDLE, Upper, Propelled

$

$

Not available

0250

Murray 7300130AMA

PLATE, Control Panel

$22.99

$

Usually ships in 2-12 days

0

0260

Murray 340720MA

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0270

Murray 7035744YP

KNOB, 5/16-18, Wing, Black
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0
