BTXPV 226750 HW (7800885) - Brute 22" Walk-Behind Mower (2012) Wheels Group (7501647) Parts Diagram

22" Walk-Behind Mower

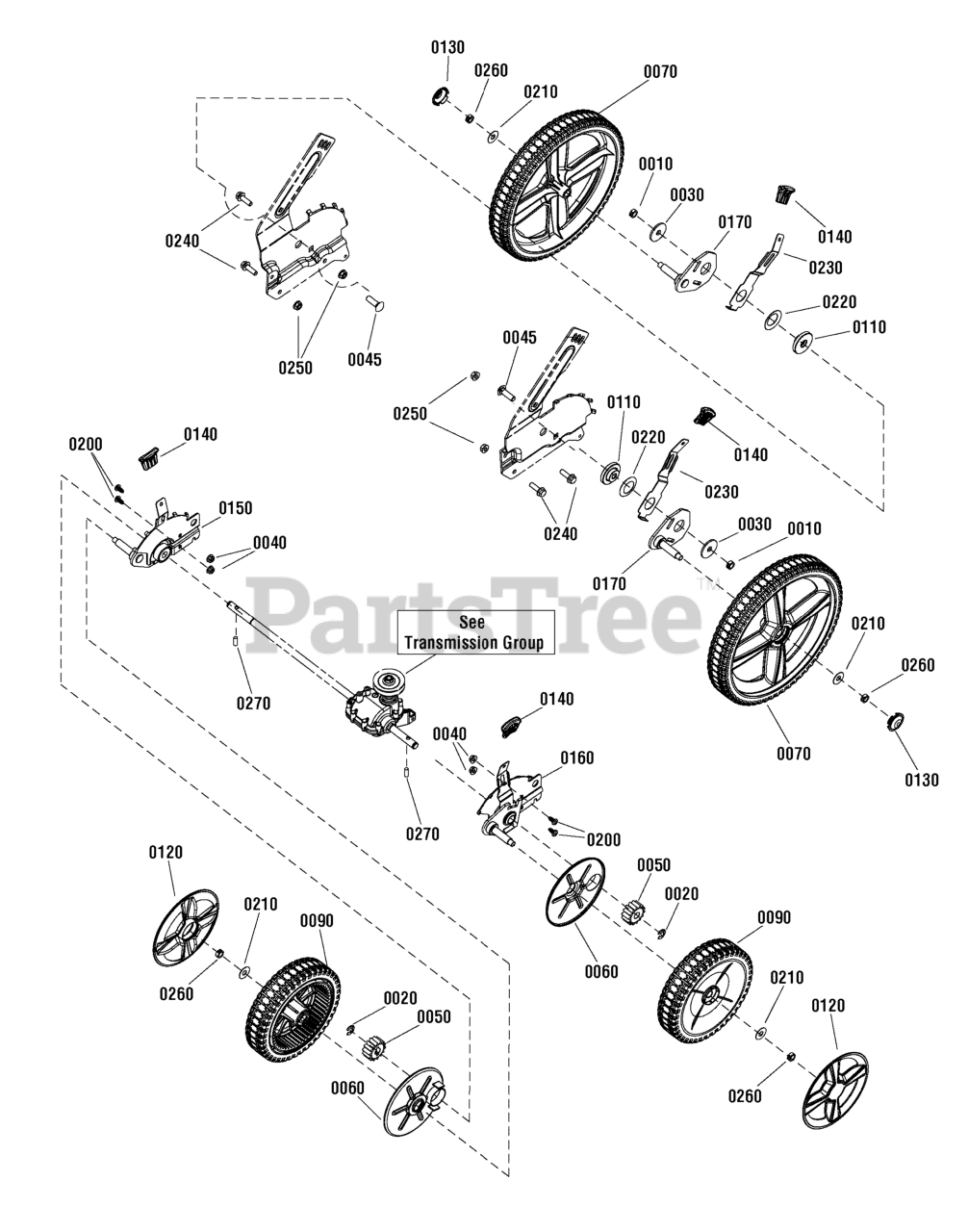

Wheels Group (7501647) Parts Diagram

  • Title

0010

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0020

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

0030

Murray 7091331SM

WASHER, 13/32 x 1-1/2" x .120 Flat, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0045

Murray 7091790YP

BOLT, Carriage, 3/8-16 x 1-1/4, GR5
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

0050

Murray 7101207YP

GEAR, Pinion, 22" WBM, Front Wheel Drive

$8.49

$

In Stock, only 2 left!

0

0060

Murray 7101402YP

SHIELD, Dust, 22" WBM, Front Wheel Drive

$7.49

$

In Stock, only 2 left!

0

0070

Murray 7101708MA

WHEEL,12" x 2" Idle, w/Db Tread, Brute Yellow
(Superseded to 7105711YP)

$54.99

$

In Stock, Qty 5

0

0090

Murray 7103500YP

WHEEL, 8" X 2" Idle w/Db Tread, Brute, Satin Black

$36.99

$

In Stock, Qty 8

0

0110

Murray 7103511YP

BUSHING, Pivot, Hi-Wheel, Rear

$5.49

$

Usually ships in 2-12 days

0

0120

Murray 7103539YP

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow

$10.99

$

Usually ships in 2-12 days

0

0130

Murray 7103540YP

HUBCAP, 12" Rim Yellow

$4.49

$

Usually ships in 2-12 days

0

0140

Murray 7103542YP

GRIP, Height Latch, P-391-St, Yellow

$4.49

$

Usually ships in 2-12 days

0

0150

Murray 7600104YP

ASSEMBLY, Height-Of-Cut, RF, 22" WBM, Propelled

$

$

Not available

0160

Murray 7600105YP

ASSEMBLY, Height-Of-Cut, LF, 22" WBM, Propelled

$82.99

$

In Stock, only 1 left!

0

0170

Murray 7501639YP

ASSEMBLY, Wheel Bracket, Rear, High-Wheel (staked)

$

$

Not available

0200

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0210

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0220

Murray 17X178MA

WASHER, 1" ID x 1.64 OD Bellville

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 7103301YP

LEVER, Front, Height-Of-Cut, 22"
(Superseded to 7105156YP)

$27.99

$

Usually ships in 2-12 days

0

0240

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

0250

Murray 7091601SM

NUT, 5/16-18 Hex Flange lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0260

Murray 7091585SM

NUT, Center Lock Hex, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0270

Murray 7101270YP

DRIVE PIN, 22" WBM, Front Wheel Drive

$5.49

$

In Stock, only 2 left!

0
