BTSPV 22675 HW FC (7800892) - Brute 22" Walk-Behind Mower, Canada (2012) Handle & Controls Group (7502371) Parts Diagram

22" Walk-Behind Mower, Canada

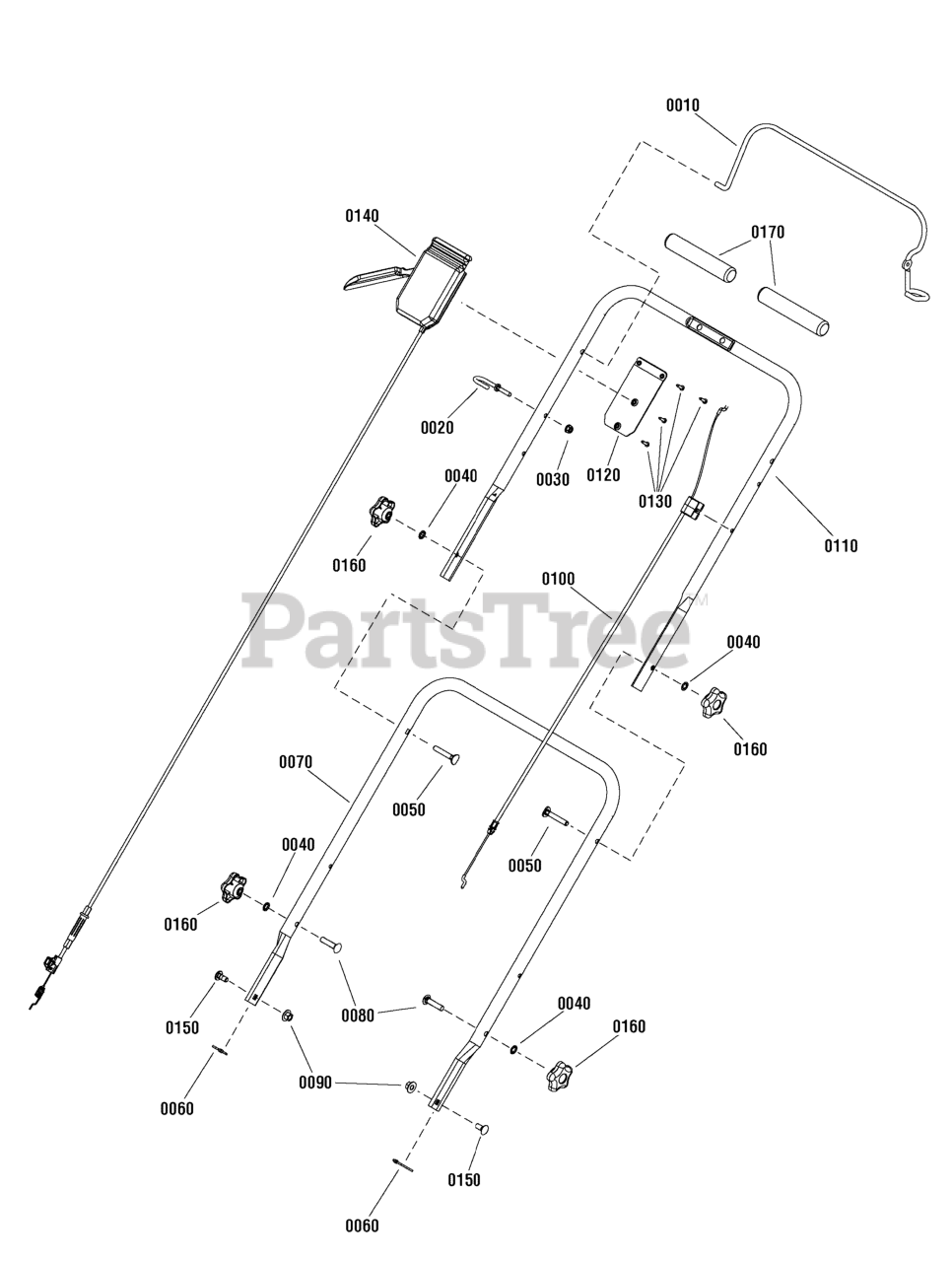

Handle & Controls Group (7502371) Parts Diagram

  • Title

0010

Murray 7101731AMA

BAIL, Operator Presence Control, Propelled, Brute
(Superseded to 7101731BMYP)

$69.99

$

In Stock, only 1 left!

0

0020

Murray 7028488MA

GUIDE, ROPE (1/4-20 thread)

$6.49

$

Usually ships in 2-12 days

0

0030

Murray 2860694SM

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 7091189YP

BOLT, Carriage, Curved Head, 5/16-18 x 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

0060

Murray 7024649YP

WIRE TIE, 11 Inch Std Blk Nylon

$5.49

$

Usually ships in 2-12 days

0

0070

Murray 7300592AMA

HANDLE, Lower, 21" Rear Discharge
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

0080

Murray 1931337SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

0090

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

0100

Murray 7101395YP

CABLE, Bail, 22" Walk-Behind Mower

$16.99

$

In Stock, only 1 left!

0

0110

Murray 7300676AMA

HANDLE, Upper, Brute, Propelled

$

$

Not available

0120

Murray 7300130AMA

PLATE, Control Panel

$22.99

$

Usually ships in 2-12 days

0

0130

Murray 7100225YP

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

0140

Murray 7103677YP

ASSEMBLY, Control Box, Variable Speed

$69.99

$

In Stock, only 2 left!

0

0150

Murray 340720MA

BOLT, Carriage 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0160

Murray 7105085YP

KNOB, Handle

$3.99

$

In Stock, Qty 20+

0

0170

Murray 7102999YP

FOAM GRIP

$9.49

$

Usually ships in 2-12 days

0
