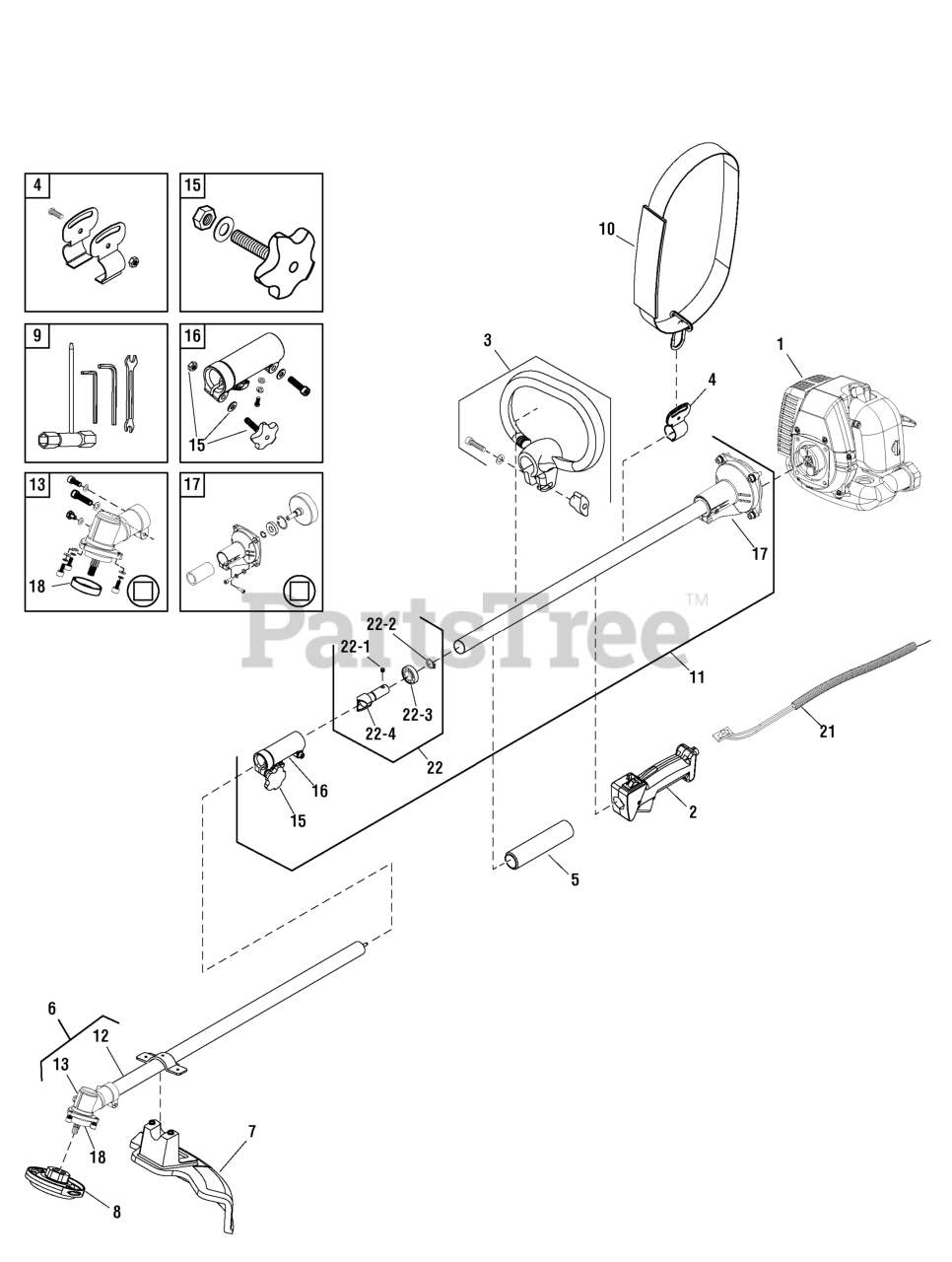

BTS 2226-A - Briggs & Stratton Straight Shaft String Trimmer, 26cc (2012) Shaft Group (BTS2226) Parts Diagram

Straight Shaft String Trimmer, 26cc

Shaft Group (BTS2226) Parts Diagram

  • Title

1

ENGINE, 26cc 2 Stroke

Note: (Not a serviceable part.)

$

$

Not available

2

Murray TR00056H

TRIGGER HOUSING ASSEMBLY
(Superseded to 706271)

$23.99

$

Usually ships in 2-12 days

0

3

Murray TR00091A

HANDLE ASSEMBLY
(Superseded to 706272)

Note: (Includes all items shown in box.)

$17.99

$

Usually ships in 2-12 days

0

4

Murray TR00067A

BRACKET, Strap
(Superseded to 706273)

Note: (Includes all items shown in box.)

$7.49

$

Usually ships in 2-12 days

0

5

Murray TR00007A

POLE PAD
(Superseded to 706275)

$4.49

$

Usually ships in 2-12 days

0

6

Murray TR01257A

SHAFT & GEAR HEAD ASSEMBLY, Lower, Straight
(Superseded to 706434)

Note: (Includes Ref. Nos. 12 & 13)

$142.99

$

Usually ships in 2-12 days

0

7

Murray TR00024A

GUARD ASSEMBLY, Straight Shaft
(Superseded to 706435)

$33.99

$

Usually ships in 2-12 days

0

8

Murray TR00001S

TRIMMER HEAD
(Superseded to 706436)

$19.99

$

Usually ships in 2-12 days

0

9

Murray TR00037A

TOOL KIT, Trimmer
(Superseded to 706277)

Note: (Includes all items shown in box.)

$7.49

$

Usually ships in 2-12 days

0

10

Murray TR00071A

HARNESS, Shoulder
(Superseded to 706279)

$12.99

$

Usually ships in 2-12 days

0

11

Murray TR01263A

SHAFT ASSEMBLY, Upper
(Superseded to 706281)

Note: (Includes Ref. Nos. 15, 16, 17 & 22)

$168.99

$

Usually ships in 2-12 days

0

12

SHAFT ASSEMBLY, Lower, Straight

Note: (Not a serviceable part. Order Ref. No. 6)

$

$

Not available

13

Murray TR00090A

HOUSING, Gearbox, Flex Straight Shaft, Square Drive

Note: (Includes all items shown in box.)

$

$

Currently unavailable

15

Murray TR00207A

KNOB ASSEMBLY
(Superseded to 706288)

Note: (Includes all items shown in box.)

$5.49

$

Usually ships in 2-12 days

0

16

Murray TR00360A

COUPLING ASSEMBLY, Easy Link (Easy Link Drive System)
(Superseded to 706287)

Note: (Includes all items shown in box.)

$28.99

$

Usually ships in 2-12 days

0

17

Murray TR00045A

CLUTCH & HOUSING ASSEMBLY, Square Drive
(Superseded to 706286)

Note: (Includes all items shown in box.)

$45.99

$

Usually ships in 2-12 days

0

18

Murray TR00032A

WASHER, Mount, Straight Shaft

$

$

Currently unavailable

21

Murray TR00114R

THROTTLE CABLE, Sleeve & Switch, Red
(Superseded to 707753)

$11.99

$

Usually ships in 2-12 days

0

22

EASY LINK SOCKET & BEARING ASSEMBLY

$

$

Not available

22-1

GRUB SCREW, M4 x 4

$

$

Not available

22-2

CIRCLIP, External, 11mm

$

$

Not available

22-3

BEARING, Deep Groove, 12 ID x 24 OD x 6

$

$

Not available

22-4

Murray TR00242A

DRIVE SOCKET
(Superseded to 706283)

$9.49

$

Usually ships in 2-12 days

0
