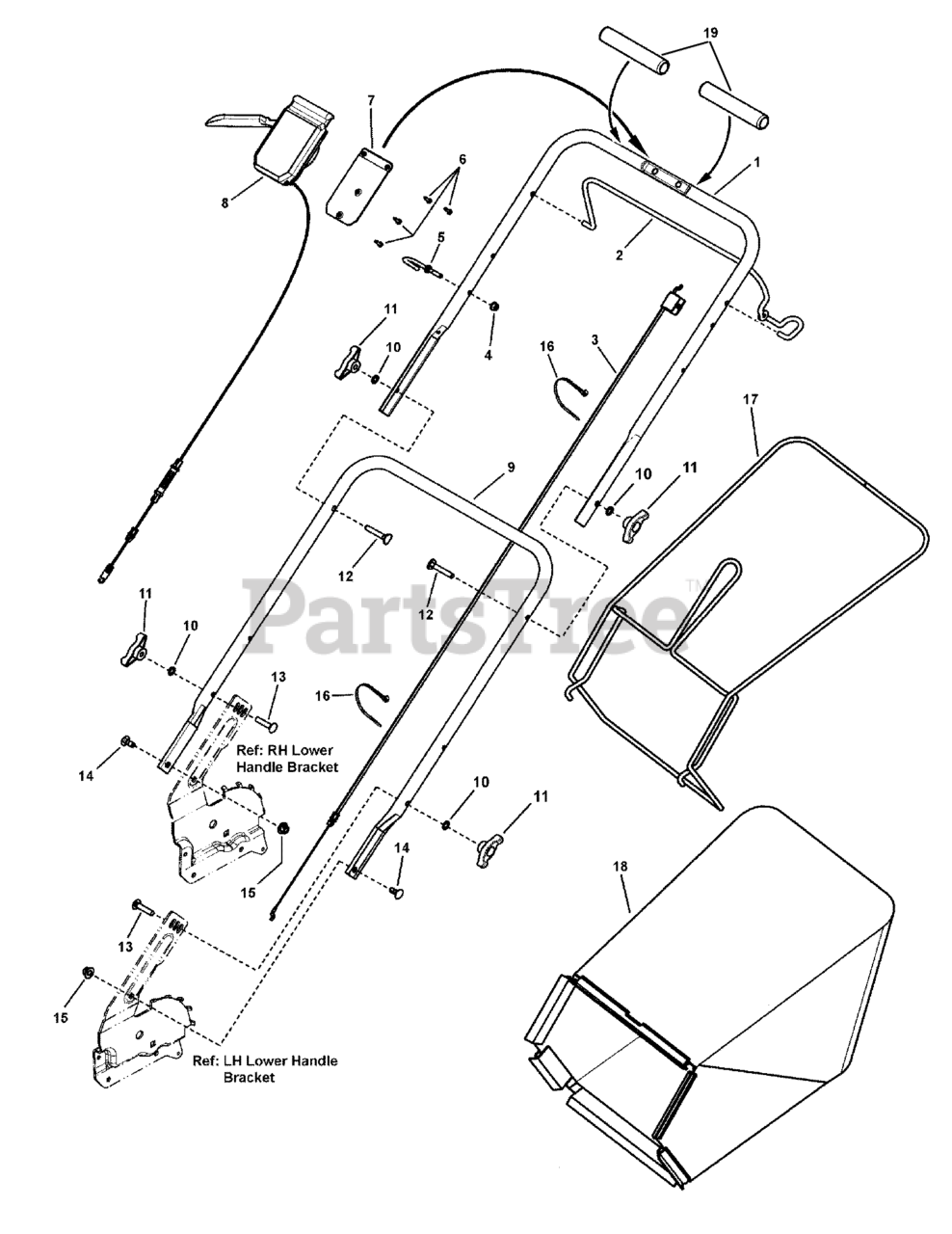

BTPV 22675 HW FC (7800806) - Brute 22" Walk-Behind Mower, Canada (2011) Handles & Controls Parts Diagram

22" Walk-Behind Mower, Canada

Handles & Controls Parts Diagram

  • Title

1

Murray 7300676AMA

HANDLE, Upper, Brute, Propelled

$

$

Not available

2

Murray 7101731AMA

BAIL, Operator Presence Control, Propelled, Brute
(Superseded to 7101731BMYP)

$69.99

$

In Stock, only 1 left!

0

3

Murray 7101395YP

CABLE, Bail, 22" WBM

$16.99

$

In Stock, only 1 left!

0

4

Murray 2860694SM

NUT, 1/4-20 Hex Flange Esna, YZ
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

5

Murray 7028488MA

ROPE GUIDE (1/4-20 thread)

$6.49

$

In Stock, only 1 left!

0

6

Murray 7100225YP

SCREW, #8-16, Pan Head Torxplus Recessed, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7300130AMA

PLATE, Control Panel

$22.99

$

Usually ships in 2-12 days

0

8

Murray 7103677YP

ASSEMBLY, Control Box, Variable Speed

$62.99

$

In Stock, only 2 left!

0

9

Murray 7300592AMA

HANDLE, Lower, 21" Rear Discharge
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

10

Murray 7090391SM

WASHER, 5/16" Internal Tooth lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7035744YP

KNOB, 5/16-18, Wing, Black
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0

13

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

14

Murray 340720MA

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, YZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

15

Murray 7090951SM

NUT, 5/16-18 Large Head Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

16

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

--

Murray 7600107YP

ASSEMBLY, 22" Grass Catcher

Note: (Includes Ref. No. 17 & 18)

$

$

Not available

17

Murray 7103305AYP

BAG FRAME, Rear Discharge

$136.99

$

Usually ships in 2-12 days

0

18

Murray 7103375YP

BAG, Grass, 22" Rear Discharge

$76.99

$

Usually ships in 2-12 days

0

19

Murray 7102999YP

FOAM GRIP

$9.49

$

Usually ships in 2-12 days
