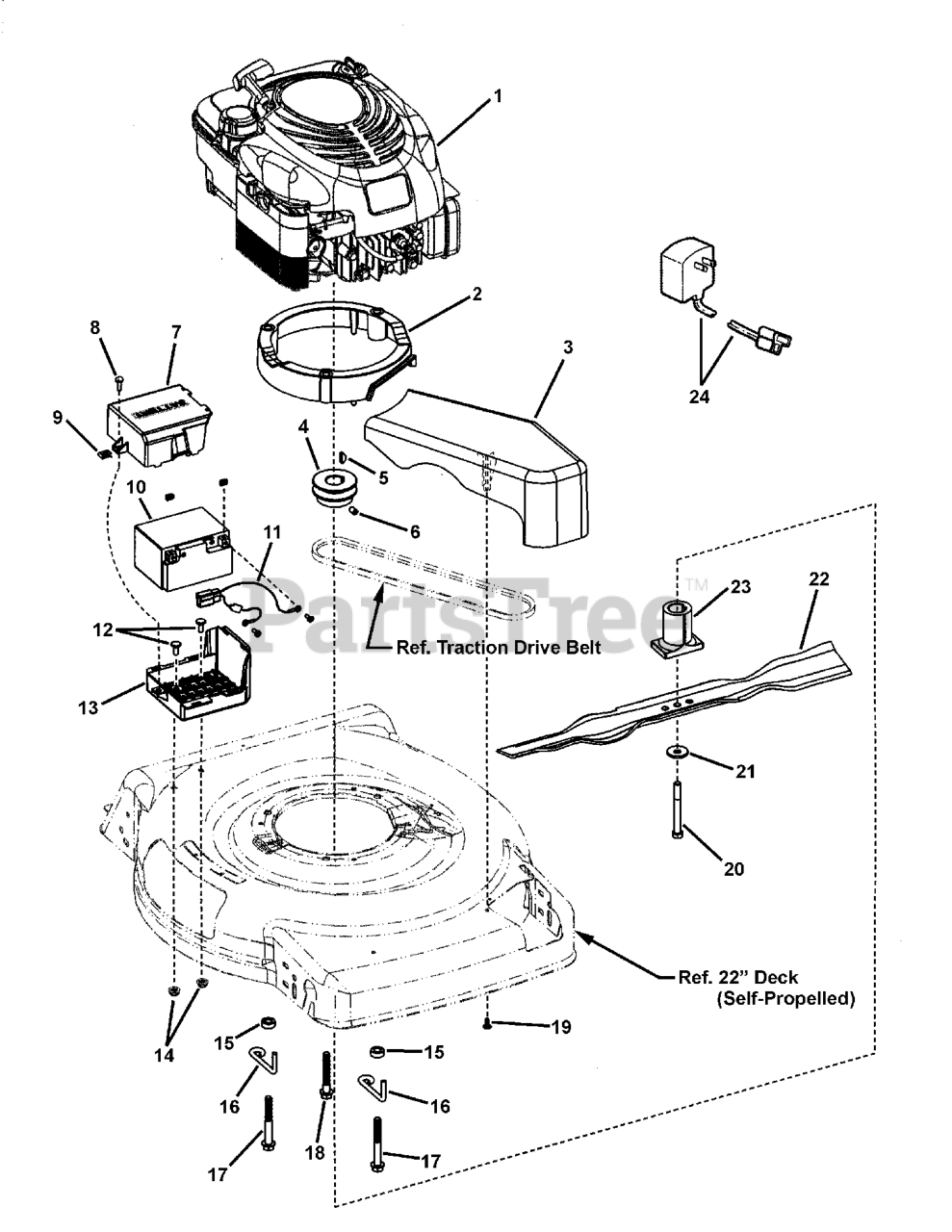

BTPV 22675 E (7800510) - Brute 22" Walk-Behind Mower (2009) Engine and Blade Assembly Parts Diagram

22" Walk-Behind Mower

Engine and Blade Assembly Parts Diagram

  • Title

1

Murray 126T05-4678-B3

ENGINE, B&S, 675 Series, ES, X, B3

$

$

Currently unavailable

2

Murray 7101449YP

ASSY, Engine Spacer (incl. 3 bushings, p/n 7101448)

$64.99

$

Usually ships in 2-12 days

0

3

Murray 1101596MA

COVER, Belt (Plastic)

$37.99

$

Usually ships in 2-12 days

0

4

Murray 7100437YP

PULLEY, Engine

$40.99

$

Usually ships in 2-12 days

0

5

Murray 7091214YP

KEY, #HP-506 Hi-Pro

$4.99

$

In Stock, only 1 left!

0

6

Murray 7092086YP

SET SCREW, 5/16-18 x 1/2" Hex Recess

$4.99

$

Usually ships in 2-12 days

0

7

Murray 7102918YP

TOP, Battery Box, WBM

$10.99

$

Usually ships in 2-12 days

0

8

Murray 7091075SM

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap, GR 5

$4.49

$

In Stock, Qty 5

0

9

Murray 1960593SM

SPEED NUT, #10-24 Retainer w/Extrusion

$4.99

$

Usually ships in 2-12 days

0

10

Murray 7101320YP

ASSY, Battery w/Harness (incl. items 10 & 11)
(Superseded to 7067012YP)

Note: also includes 2 screws (7043977) and nuts (7090932)

$93.99

$

Usually ships in 2-12 days

0

10

BATTERY, Sealed Lead Acid, 12V

$

$

Not available

11

Murray 7015488YP

HARNESS, Battery

$14.99

$

In Stock, only 1 left!

0

12

Murray 7090803YP

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

13

Murray 7102917YP

BOTTOM, Battery Box, WBM

$13.99

$

In Stock, only 1 left!

0

14

Murray 780285MA

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

15

Murray 7101302YP

SPACER, Belt Guide, 22" VS

$3.99

$

Usually ships in 2-12 days

0

16

Murray 7101024YP

BELT GUIDE, Engine, 22" VS

$5.49

$

Usually ships in 2-12 days

0

17

Murray 7101451YP

SCREW 3/8-16 x 3" Hex Washer Self-Tap

$5.49

$

Usually ships in 2-12 days

0

18

Murray 025X11MA

BOLT, 3/8-16 NS x 2-1/2" Hex Washer Face

$6.99

$

Usually ships in 2-12 days

0

19

Murray 7900018YP

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

20

Murray 01X144MA

BOLT, 3/8-24 x 3-1/4" Hex Head GR 8

$5.49

$

In Stock, only 3 left!

0

21

Murray 1101989MA

WASHER, .38" I.D. x 1.183 O.D. Bellville

$5.49

$

Usually ships in 2-12 days

0

22

Murray 7100851AYP

BLADE, 22", Walk Mower

$19.99

$

In Stock, only 1 left!

0

23

Murray 7100740YP

BLADE HUB, 22" Deck

$15.99

$

Usually ships in 2-12 days

0

24

Murray 206838YP

CHARGER, Battery
(Superseded to 770625)

$59.99

$

In Stock, only 2 left!

0
