BTPV 21675 E (7800268) - Brute 21" Walk-Behind Mower (2008) Engine and Blade Assembly (BTPV21) Parts Diagram

21" Walk-Behind Mower

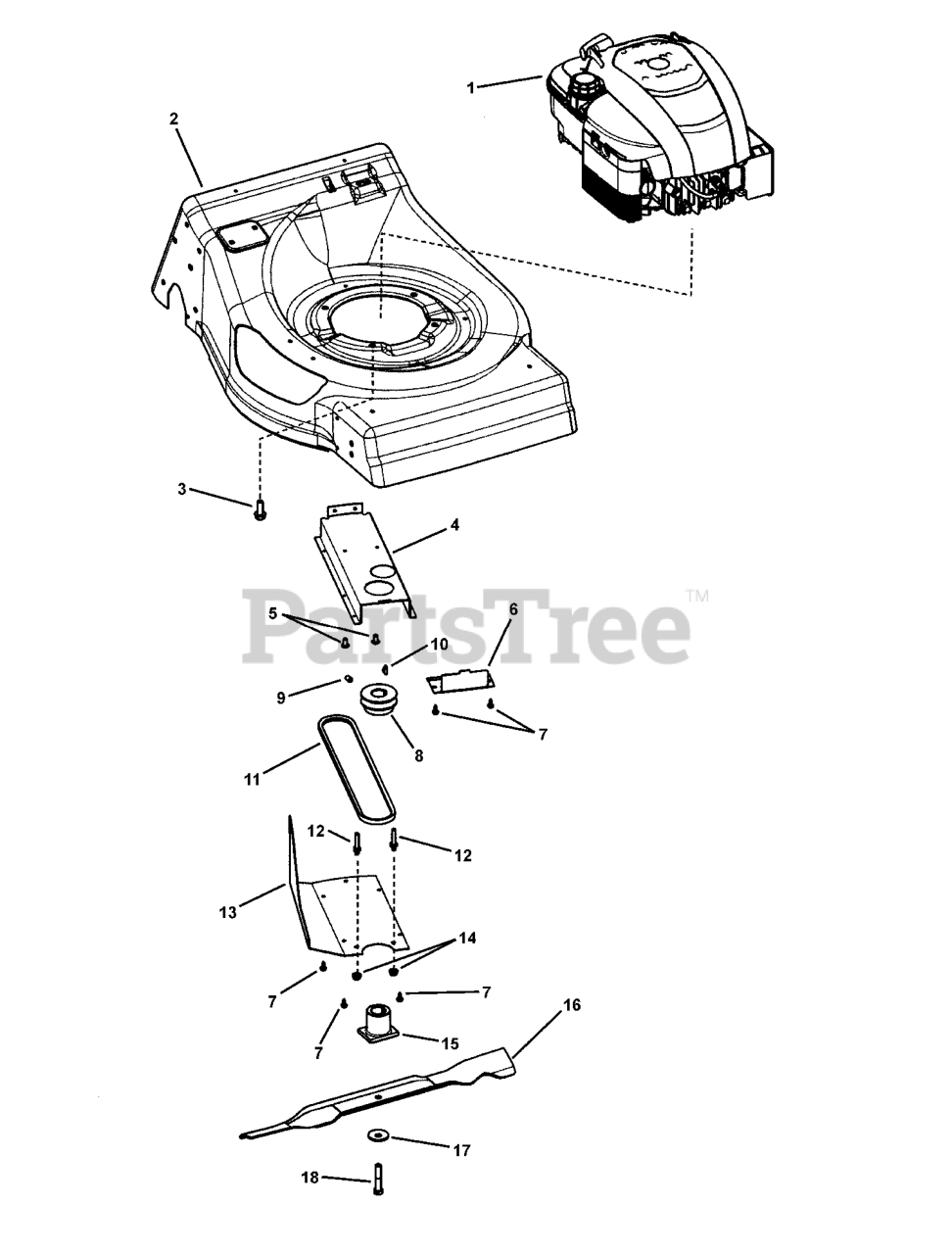

Engine and Blade Assembly (BTPV21) Parts Diagram

  • Title

1

* ENGINE, B&S, 675 SER, ES, X, B3 Mod. 126T05-0677-B3

$

$

Not available

2

Murray 7300931ZMA

DECK, 21" BRUTE, RD

$270.99

$

Usually ships in 2-12 days

0

3

Murray 7090324SM

BOLT, 3/8-16 X 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

4

Murray 7300725ZMA

BELT GUARD

$25.99

$

Usually ships in 2-12 days

0

5

Murray 7091200YP

PHST, 1/4-20 X 1/2 TORX
(Superseded to 7900067YP)

$4.49

$

In Stock, Qty 20+

0

6

Murray 7300724ZMA

COVER, BELT
(Superseded to 7300724YP)

$10.99

$

Usually ships in 2-12 days

0

7

Murray 26X259MA

SCREW, #10X1/2, AB, W/WASHER

$4.49

$

In Stock, only 4 left!

0

8

Murray 7100437YP

PULLEY, ENGINE

$40.99

$

Usually ships in 2-12 days

0

9

Murray 7092086YP

HRSS 5/16-18X1/2

$4.99

$

Usually ships in 2-12 days

0

10

Murray 7091214YP

KEY, #HP-506 HI-PRO

$4.99

$

In Stock, only 1 left!

0

11

Murray 7100883YP

BELT, 3L, TRACTION DRIVE, 21" PIVOT HANDLE

Note: 32.86" Effective Length

$20.99

$

In Stock, only 1 left!

0

12

Murray 7101313YP

BELT GUIDE, ENGINE, 21" RD (1/4-20 thread)

$3.99

$

Usually ships in 2-12 days

0

13

Murray 7300596ZMA

COVER, BELT GUARD

$33.99

$

Usually ships in 2-12 days

0

14

Murray 7091584SM

NUT, 1/4 X 20 YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

15

Murray 7101414YP

HUB, BLADE, 21" WBM, RD, 2 POSITION

$16.99

$

In Stock, only 1 left!

0

16

Murray 7100242YP

BLADE, WAVE, 21" STEEL DECK
(Superseded to 7100242AYP)

$28.99

$

In Stock, only 2 left!

0

17

Murray 7012063SM

WASHER, CONE
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

18

Murray 7090167SM

CAPSCREW, 3/8-24 X 2 GR5

$3.99

$

Usually ships in 2-12 days

0
