BTPD 22675 (7800882) - Brute 22" Walk-Behind Mower (2012) Wheels Group (7501776) Parts Diagram

22" Walk-Behind Mower

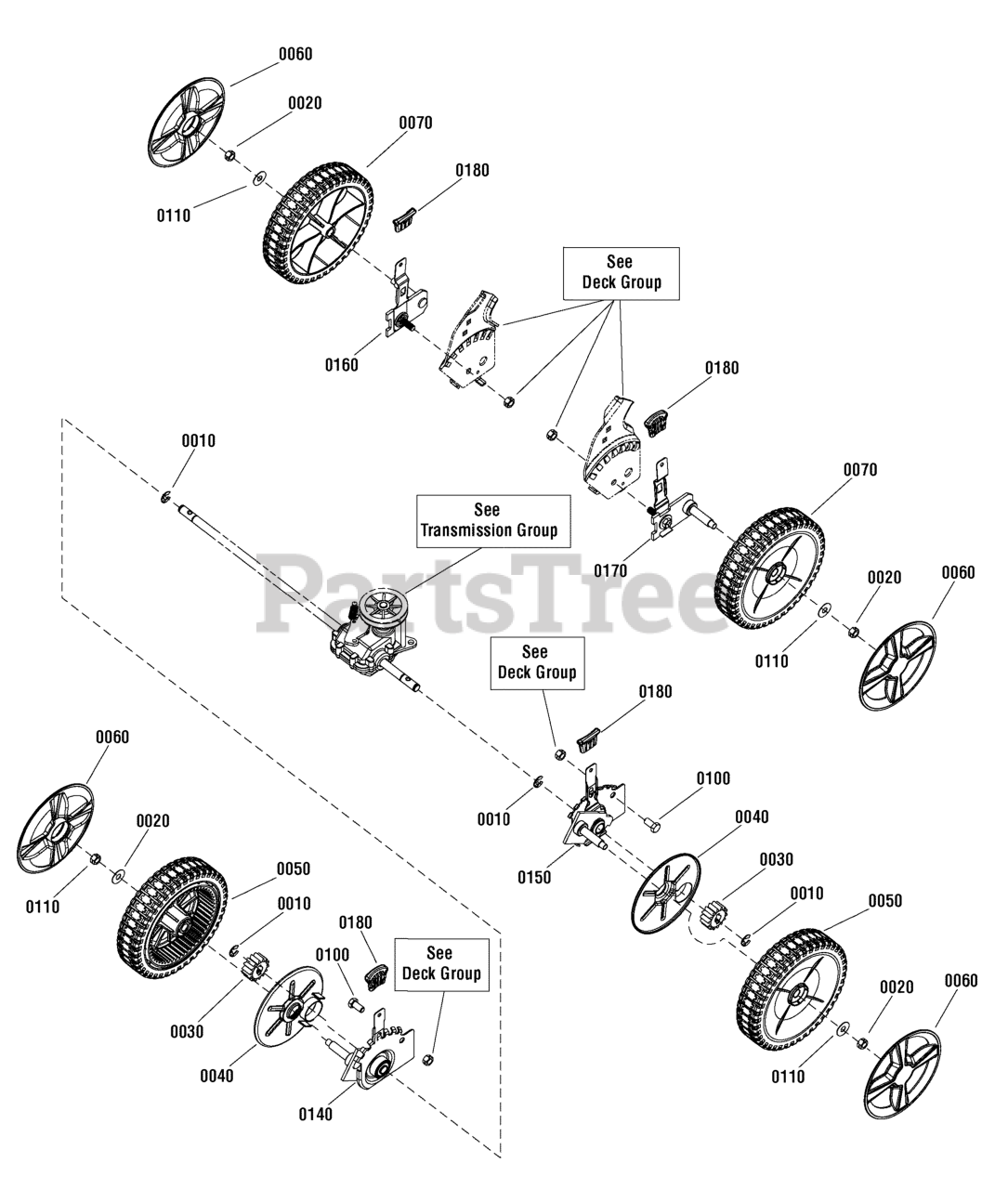

Wheels Group (7501776) Parts Diagram

  • Title

0010

Murray 7014341YP

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

0020

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0030

Murray 7101207YP

GEAR, PINION, 22 WBM, FWD

$8.49

$

In Stock, only 2 left!

0

0040

Murray 7101402YP

SHIELD, DUST, 22 WBM, FWD

$7.49

$

In Stock, only 2 left!

0

0050

Murray 7103500YP

WHEEL, 8" x 2" Drive, w/DB Tread P-290 Satin Black

$36.99

$

In Stock, Qty 8

0

0060

Murray 7103539YP

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow

$10.99

$

Usually ships in 2-12 days

0

0070

Murray 7103541YP

WHEEL, 8" X 2" Idle w/Db Tread, Brute, Satin Black

$40.99

$

Usually ships in 2-12 days

0

0100

Murray 001X85MA

BOLT, Hex, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 17X169MA

WASHER, FLAT, 1" OD X .387 ID
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0140

Murray 7600116YP

KIT, RF, Height-Of-Cut, Front Wheel Drive, 2N1

$91.99

$

Usually ships in 2-12 days

0

0150

Murray 7600115YP

KIT, LF, Height-Of-Cut, Front Wheel Drive, 2N1

$103.99

$

Usually ships in 2-12 days

0

0160

Murray 7600114YP

KIT, RR, Height-Of-Cut, 22" WBM 2N1

$48.99

$

Usually ships in 2-12 days

0

0170

Murray 7600113YP

KIT, LR, Height-Of-Cut, 22" WBM 2N1

$31.99

$

Usually ships in 2-12 days

0

0180

Murray 7103542YP

GRIP, Height Latch, P-391-St, Yellow

$4.49

$

Usually ships in 2-12 days

0
