BTPD 22625 (7800884) - Brute 22" Walk-Behind Mower (2012) Engine Group (7502733) Parts Diagram

22" Walk-Behind Mower

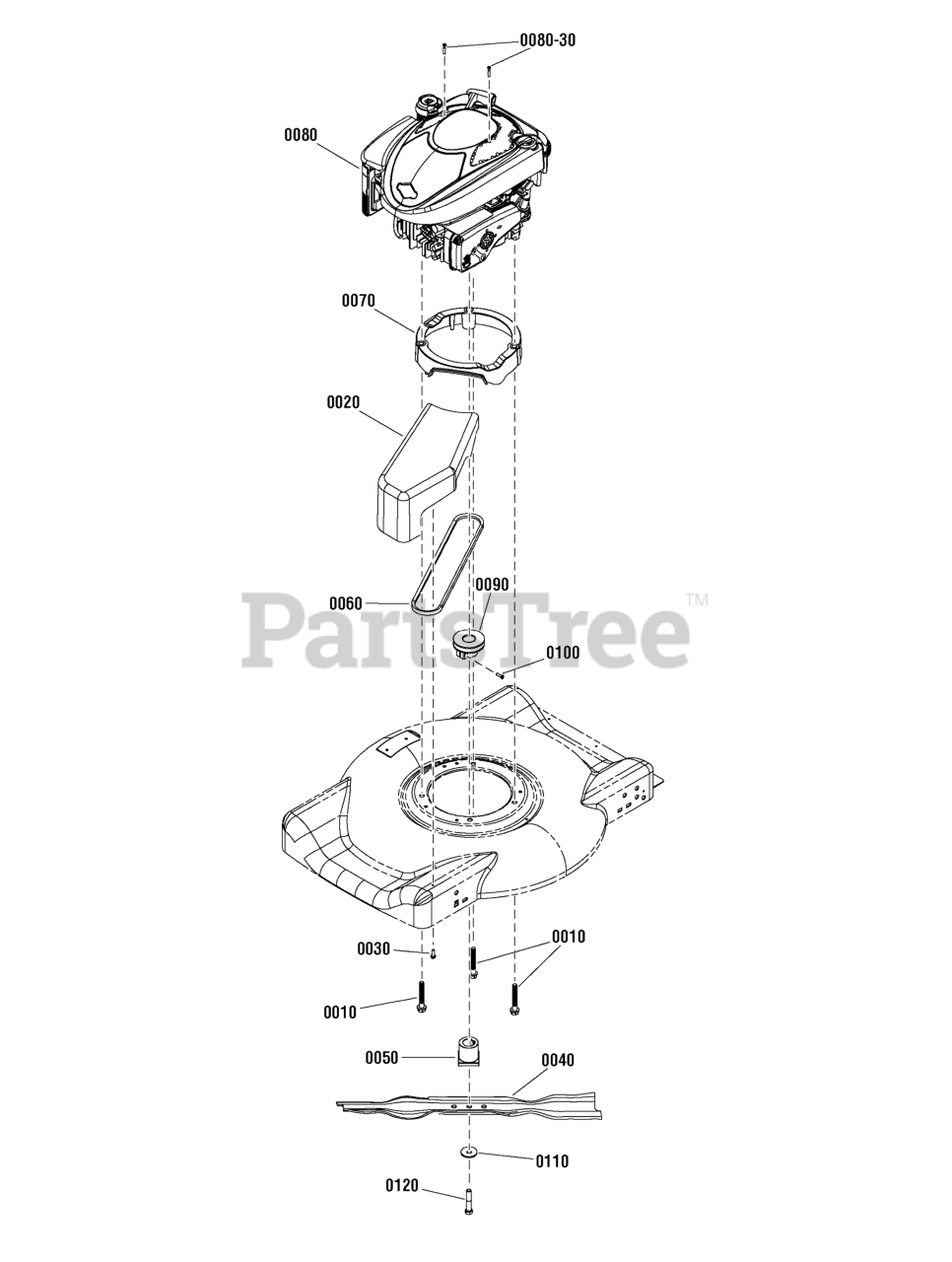

Engine Group (7502733) Parts Diagram

  • Title

0010

Murray 025X11MA

BOLT, 3/8-16 x 2-1/2" Hex Washer Face

$6.99

$

Usually ships in 2-12 days

0

0020

Murray 1101830MA

COVER, Belt, 22" Side Discharge, Front Wheel Drive

$

$

Not available

0030

Murray 26X313MA

SCREW, #10-24 x 1.38 Black

$

$

Not available

0040

Murray 7103288YP

BLADE, Wave, Steel Deck

$29.99

$

In Stock, Qty 8

0

0050

Murray 7104074YP

BLADE HUB, 22" Front Wheel Drive

$14.99

$

In Stock, only 1 left!

0

0060

Murray 7104084YP

BELT, Drive 22" WBM Single Speed

$23.99

$

Usually ships in 2-12 days

0

0070

Murray 1101786MA

ASSEMBLY, Engine Spacer, 2122FDTM
(Superseded to 1101787MA)

$26.99

$

Usually ships in 2-12 days

0

0080

Murray 122M02-0183-F1

* ENGINE, 6.25TP Briggs & Stratton

Note: (Engine Model: 122M02-0183-F1)

$

$

Currently unavailable

0080-30

Murray 691138

SCREW, Pan HD Cross Recess, Tapping

$3.99

$

In Stock, Qty 18

0

0090

Murray 7100763MA

PULLEY, Engine, 22" Deck, Single Speed

$12.99

$

Usually ships in 2-12 days

0

0100

Murray 26X303MA

SCREW, #8-11 Poly Thread x .63, Pan Head Cross Recess

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 7012063SM

WASHER, Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

0120

Murray 7090167SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR 5

$3.99

$

Usually ships in 2-12 days

0
