BTPD 22625 (7800661) - Brute 22" Walk-Behind Mower (2010) Deck Group Parts Diagram

22" Walk-Behind Mower

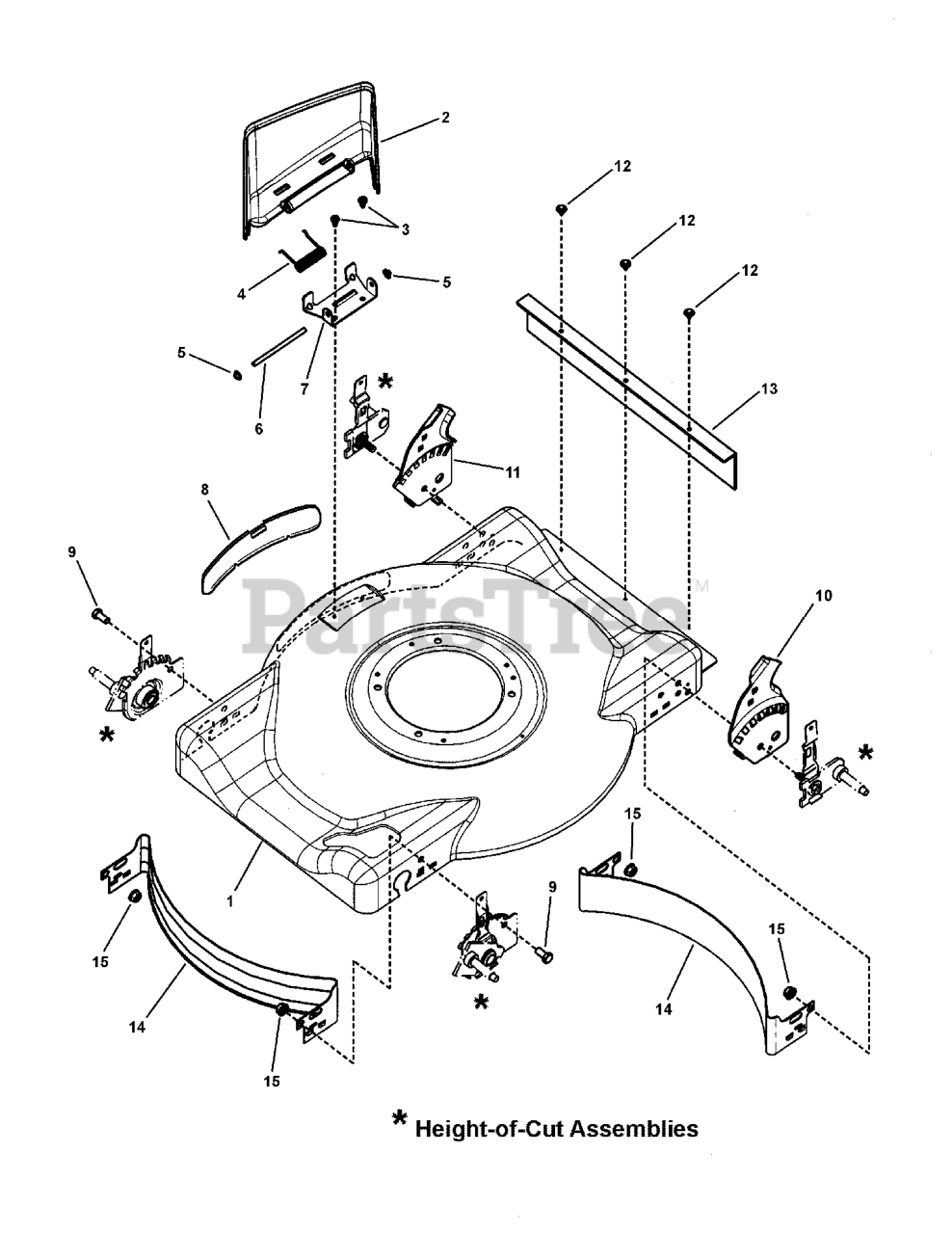

Deck Group Parts Diagram

  • Title

1

Murray 7301115ZYP

DECK, 22" WBM, Side Discharge

$225.99

$

Usually ships in 2-12 days

0

2

Murray 672421MA

CHUTE, Plastic Side Discharge

$38.99

$

Usually ships in 2-12 days

0

3

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)

$4.49

$

In Stock, Qty 20+

0

4

Murray 0166X5MA

SPRING, Torsion, Chute

$3.99

$

Usually ships in 2-12 days

0

5

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

6

Murray 215X11ZMA

ROD, Pivot, Mulch Cover

$4.49

$

Usually ships in 2-12 days

0

7

Murray 7300852ZYP

BRACKET, Chute Low Cost

$8.99

$

Usually ships in 2-12 days

0

8

Murray 672422ZMA

MULCH PLATE

$41.99

$

Usually ships in 2-12 days

0

9

Murray 001X85MA

BOLT, 3/8-16 x 3/4" Hex Head, GR 5

$3.99

$

Usually ships in 2-12 days

0

10

Murray 7300851AYP

BRACKET, Handle, LH Low Cost

$15.99

$

Usually ships in 2-12 days

0

11

Murray 7300850AYP

BRACKET, Handle, RH Low Cost

$15.99

$

Usually ships in 2-12 days

0

12

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap - Sems

$4.99

$

In Stock, Qty 12

0

13

Murray 672738MA

REAR GUARD

$32.99

$

Usually ships in 2-12 days

0

14

Murray 7300853ZYP

BAFFLE, 22" Side Discharge

$51.99

$

Usually ships in 2-12 days

0

15

Murray 7900053MA

NUT, 3/8-16, Hex Flange Lock GR 5

$3.99

$

Usually ships in 2-12 days

0
