BTP 22675 HW FC (7800324) - Brute 22" Walk-Behind Mower, 6.75hp, Canada (2008) Wheels & Covers Group Parts Diagram

22" Walk-Behind Mower, 6.75hp, Canada

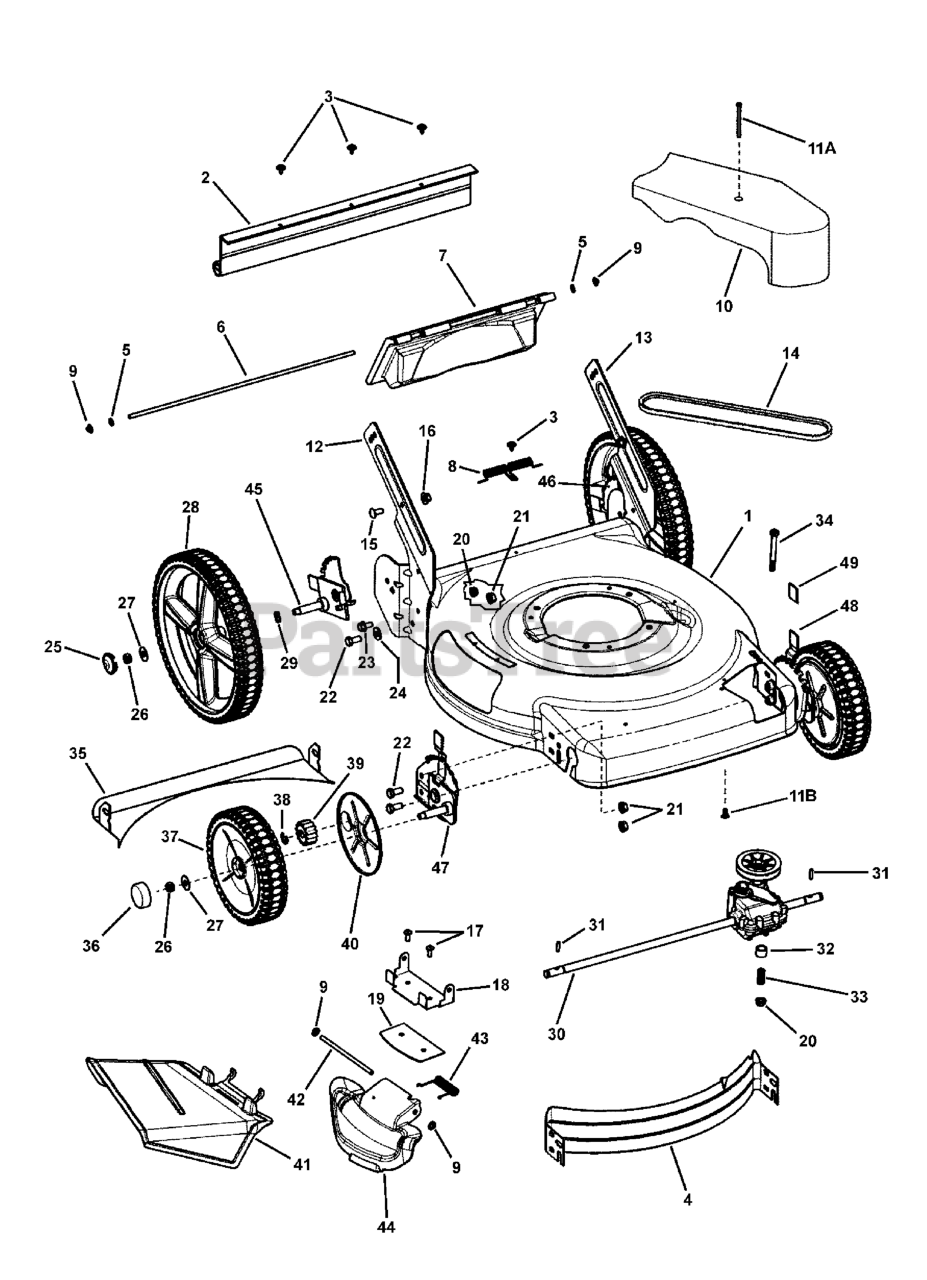

Wheels & Covers Group Parts Diagram

  • Title

1

Murray 7300400ZMA

DECK, 22" Walk, 3-N-1

$

$

Not available

2

Murray 1101105MA

GUARD, Rear 22" HW (19-1/2" long)
(Superseded to 7103347YP)

Note: (was 721685 18-1/4") (Use with Model 7800324)

$

$

Not available

2

Murray 7102422YP

GUARD, Rear

Note: (Use with Model 7800471)

$18.99

$

Usually ships in 2-12 days

0

3

Murray 7091286YP

SCREW, Self Tap, Sems, 10-24 x 1/2

$4.99

$

In Stock, Qty 14

0

4

Murray 7300440ZMA

BAFFLE, Front
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

CAP, Retainer

$3.99

$

In Stock, Qty 13

0

6

Murray 215X21MA

ROD, Pivot, Rear Door

Note: (Use with Model 7800324)

$7.99

$

Usually ships in 2-12 days

0

6

Murray 7101070YP

ROD, Pivot, Rear Door

Note: (Use with Model 7800471)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 1101070MA

DOOR, Rear Discharge

Note: (Use with Model 7800324)

$

$

Not available

7

Murray 7101243YP

DOOR, Rear Discharge

Note: (Use with Model 7800471)

$51.99

$

Usually ships in 2-12 days

0

8

Murray 7101461YP

SPRING, Torsion

$6.99

$

Usually ships in 2-12 days

0

9

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

10

Murray 1101596MA

COVER, Belt

$37.99

$

Usually ships in 2-12 days

0

11A

Murray 26X304MA

SCREW, #10-24 X 2-1/2

Note: (Early models)

$4.49

$

Usually ships in 2-12 days

0

11B

Murray 7900018YP

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

Note: (Late models and replacement covers)

$4.49

$

In Stock, only 4 left!

0

12

Murray 7300582ZMA

BRACKET, Lower Handle, Right
(Superseded to 7300582BHYP)

Note: (not shown detached)

$51.99

$

Usually ships in 2-12 days

0

13

Murray 7300583ZMA

BRACKET, Lower Handle, Left

Note: (not shown detached)

$47.99

$

Usually ships in 2-12 days

0

14

Murray 7101193MA

BELT, Drive, (3L Section; 33.75" effective length)

$22.99

$

In Stock, only 2 left!

0

15

Murray 7091508SM

BOLT, Carriage, 5/16-18 x 3/4 GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

16

Murray 7090951SM

NUT, Hex Flange, Centerlock, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

17

Murray 26X217MA

SCREW, Torx, 1/4-20 x 11/16
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

18

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

19

Murray 7300856ZMA

PLATE, Mulch

$6.49

$

Usually ships in 2-12 days

0

20

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 7900053MA

NUT, Hex Flange, 3/8-16

$3.99

$

Usually ships in 2-12 days

0

22

Murray 7091086YP

CAPSCREW, Hex Head, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

23

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

24

Murray 7091528SM

WASHER, Flat, 3/8 ID, 7/8 OD

$3.99

$

Usually ships in 2-12 days

0

25

Murray 7101931MA

HUBCAP, 12" Wheel

$4.49

$

Usually ships in 2-12 days

0

26

Murray 7091585SM

NUT, Center Lock, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

27

Murray 17X169MA

WASHER, Flat, 3/8 ID, 1" OD
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

28

Murray 7101708MA

WHEEL, 12"X 2" Idle
(Superseded to 7105711YP)

$54.99

$

In Stock, Qty 5

0

29

Murray 7026257MA

WASHER, Wave

$4.49

$

In Stock, Qty 11

0

30

Murray 7101206MA

TRANSMISSION

$137.99

$

Usually ships in 2-12 days

0

31

Murray 7101270YP

PIN, Drive

$5.49

$

In Stock, only 2 left!

0

32

Murray 043844MA

SPACER, Engine

Note: (Use with Model 7800324)

$12.99

$

Usually ships in 2-12 days

0

32

Murray 7102671YP

SPACER, Engine

Note: (Use with Model 7800471)

$3.99

$

Usually ships in 2-12 days

0

33

Murray 164X27MA

SPRING, Compression

$3.99

$

Usually ships in 2-12 days

0

34

Murray 01X156MA

BOLT, Hex-Head 5/16-18 x 3
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

35

Murray 7300854ZMA

BAFFLE, Rear
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

36

Murray 7101351MA

HUBCAP, Round

$4.99

$

Usually ships in 2-12 days

0

37

Murray 7101710MA

WHEEL, 8"X 2" Drive

$39.99

$

In Stock, Qty 6

0

38

Murray 7014341YP

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

39

Murray 7101207YP

GEAR, Pinion

$8.49

$

In Stock, only 2 left!

0

40

Murray 7101402YP

SHIELD, Dust

$7.49

$

In Stock, only 2 left!

0

41

Murray 1101097MA

CHUTE, Side

$39.99

$

Usually ships in 2-12 days

0

42

Murray 215X19ZMA

ROD, Pivot, Chute
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

44

Murray 1101098MA

COVER, Mulch

$33.99

$

In Stock, only 1 left!

0

45

Murray 7501065YP

ASSY, Height-Of-Cut, RR, 22", 7 Position (shown detached)

Note: (Use with Model 7800324)

$60.99

$

Usually ships in 2-12 days

0

45

Murray 7501056YP

ASSY, Height-Of-Cut, RR, 22", 9 Position (shown detached)

Note: (Use with Model 7800471)

$

$

Not available

46

Murray 7501066YP

ASSY, Height-Of-Cut, RR, 22", 7 Position (shown attached)

Note: (Use with Model 7800324)

$21.99

$

Usually ships in 2-12 days

0

46

Murray 7501055YP

ASSY, Height-Of-Cut, LR, 22", 9 Position (shown attached)

Note: (Use with Model 7800471)

$

$

Not available

47

Murray 7501062YP

ASSY, Height-Of-Cut, RF, 22", Propelled, 7 Position (shown detached)

Note: (Use with Model 7800324)

$49.99

$

Usually ships in 2-12 days

0

47

Murray 7501057YP

ASSY, Height-Of-Cut, RF, 22", Propelled, 9 Position (shown detached)

Note: (Use with Model 7800471)

$74.99

$

Usually ships in 2-12 days

0

48

Murray 7501061YP

ASSY, Height-Of-Cut, LF, 22", Propelled, 7 Position (shown attached)

Note: (Use with Model 7800324)

$

$

Not available

48

Murray 7501058YP

ASSY, Height-Of-Cut, LF, 22", Propelled, 9 Position (shown attached)

Note: (Use with Model 7800471)

$86.99

$

In Stock, only 1 left!

0

49

Murray 7100633YP

GRIP, Height Latch
(Superseded to 7103793YP)

Note: (Use with Model 7800471)

$4.49

$

In Stock, Qty 9

0
