BTP 2265 HW (7800267) - Brute 22" Walk-Behind Mower (2008) Wheels & Covers Group Parts Diagram

22" Walk-Behind Mower

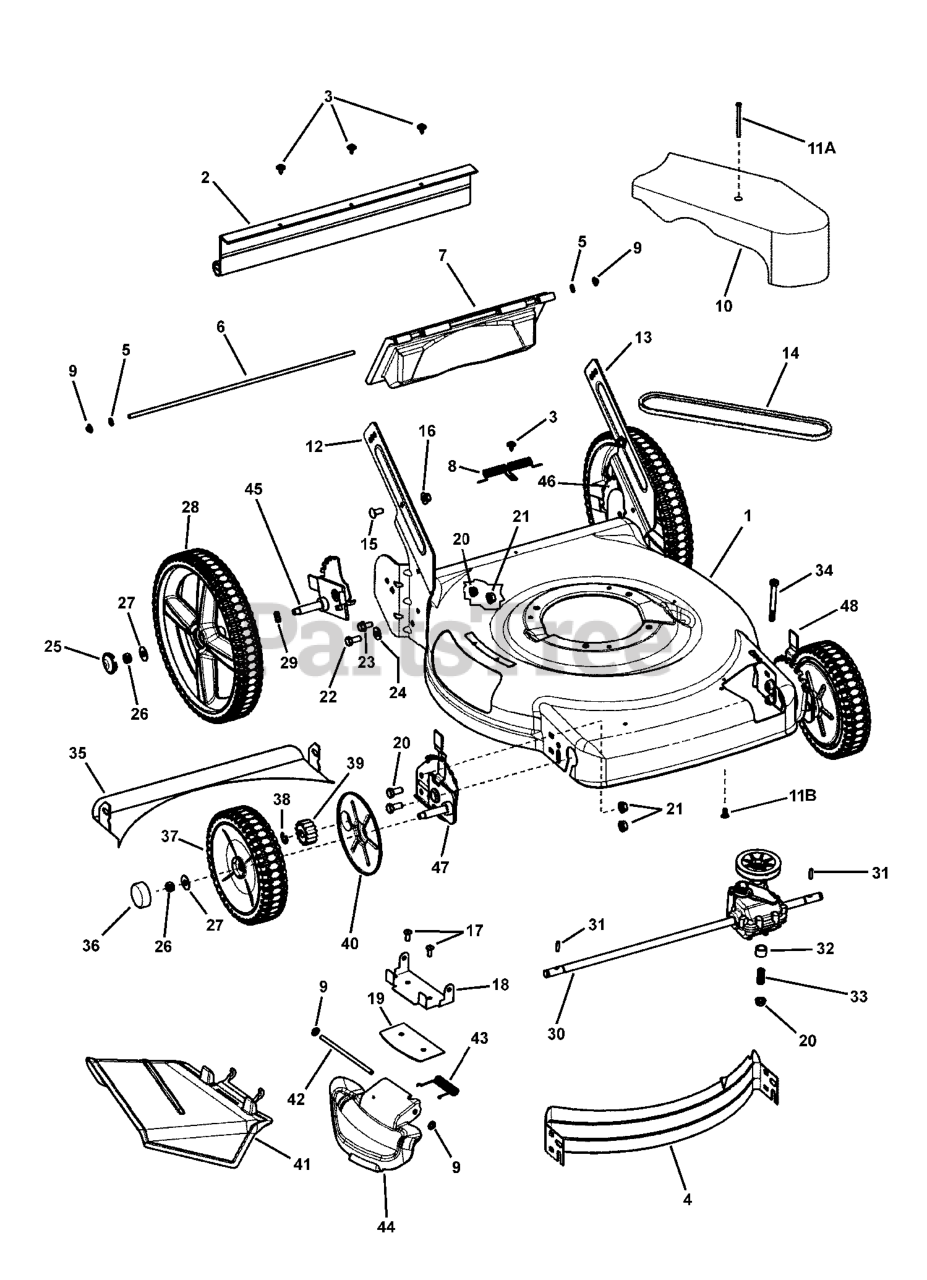

Wheels & Covers Group Parts Diagram

  • Title

1

Murray 7300400ZMA

DECK, 22 WALK, 3-N-1

$

$

Not available

2

Murray 1101105MA

GUARD, REAR 22 HW (19-1/2 long)
(Superseded to 7103347YP)

Note: was 721685 (18-1/4 long)

$

$

Not available

3

Murray 7091286YP

HWST, 10-24X.50 SEMS

$4.99

$

In Stock, Qty 14

0

4

Murray 7300440ZMA

BAFFLE, FRONT, 22 WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

CAP, RETAINER

$3.99

$

In Stock, Qty 13

0

6

Murray 215X21MA

ROD, PIVOT, REAR DOOR

$7.99

$

Usually ships in 2-12 days

0

7

Murray 1101070MA

DOOR, REAR DISCHARGE, 22 WALK MOWER

Note: Used on early models

$

$

Not available

8

Murray 7101461YP

SPRING, TORSION, REAR DOOR, 22 WBM

$6.99

$

Usually ships in 2-12 days

0

9

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

10

Murray 1101596MA

COVER, BELT 22" (shown)

$37.99

$

Usually ships in 2-12 days

0

11A

Murray 26X304MA

SCREW, #10-24 X 2-1/2

Note: Used on early models

$4.49

$

Usually ships in 2-12 days

0

11B

Murray 7900018YP

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

Note: Used on late models & replacement covers

$4.49

$

In Stock, only 4 left!

0

12

Murray 7300582ZMA

BRACKET, LOWER HANDLE, RH, 22 WBM, HW
(Superseded to 7300582BHYP)

Note: (not shown detached)

$51.99

$

Usually ships in 2-12 days

0

13

Murray 7300583ZMA

BRACKET, LOWER HANDLE, LH, 22 WBM, HW

Note: (not shown detached)

$47.99

$

Usually ships in 2-12 days

0

14

Murray 7101193MA

BELT, DRIVE 22 (3L Section;33.75 effective length)

$22.99

$

In Stock, only 2 left!

0

15

Murray 7091508SM

RHSSNB, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

16

Murray 7090951SM

LHCLN, 5/16-18 BLACK
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

17

Murray 26X217MA

TORX ST, 1/4-20 X 11/16
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

18

Murray 7300855ZMA

BRACKET, CHUTE

$

$

Not available

19

Murray 7300856ZMA

PLATE-MULCH, 22 RB SCOTT'S

$6.49

$

Usually ships in 2-12 days

0

20

Murray 015X88MA

NUT, HEX FLANGE LOCK, 5/16-18 NC
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 7900053MA

HFLN, 3/8-16, BRIGHT ZINC

$3.99

$

Usually ships in 2-12 days

0

22

Murray 7091086YP

HHCS, 3/8-16 X 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

23

Murray 7090606SM

HFLB, 5/16-18 X 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

24

Murray 7091528SM

FLW, .375 X .875 X .083 YZ

$3.99

$

Usually ships in 2-12 days

0

25

Murray 7101931MA

HUBCAP, 12 WHEEL, BLACK

$4.49

$

Usually ships in 2-12 days

0

26

Murray 7091585SM

HCLN, 3/8-16 YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

27

Murray 17X169MA

WASHER, FLAT, 1 OD X .387 ID
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

28

Murray 7101708MA

WHEEL, 12X 2 IDLE, W/DB TRD, BRUTE YELLOW
(Superseded to 7105711YP)

$54.99

$

In Stock, Qty 5

0

29

Murray 7026257MA

WASHER, .531 X .781 3-WAVE

$4.49

$

In Stock, Qty 11

0

30

Murray 7101206MA

TRANSMISSION, 22 WBM SS, FWD

$137.99

$

Usually ships in 2-12 days

0

31

Murray 7101270YP

PIN, DRIVE, 22 WBM, FWD

$5.49

$

In Stock, only 2 left!

0

32

Murray 043844MA

SPACER, ENGINE

$12.99

$

Usually ships in 2-12 days

0

33

Murray 164X27MA

SPRING, COMPRESSION

$3.99

$

Usually ships in 2-12 days

0

34

Murray 01X156MA

BOLT, Hex-Head 5/16-18 X 3.00 P&OIL
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

35

Murray 7300854ZMA

BAFFLE, REAR, 22 DECK
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

36

Murray 7101351MA

HUBCAP, ROUND, BLACK

$4.99

$

Usually ships in 2-12 days

0

37

Murray 7101710MA

WHEEL, 8X 2 DRIVE, W/DB TRD, BRUTE YELLOW

$39.99

$

In Stock, Qty 6

0

38

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

39

Murray 7101207YP

GEAR, PINION, 22 WBM, FWD

$8.49

$

In Stock, only 2 left!

0

40

Murray 7101402YP

SHIELD, DUST, 22 WBM, FWD

$7.49

$

In Stock, only 2 left!

0

41

Murray 1101097MA

CHUTE, SIDE, PLASTIC, BLACK

$39.99

$

Usually ships in 2-12 days

0

42

Murray 215X19ZMA

ROD, PIVOT, CHUTE
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 166X38MA

SPRING, TORSION, CHUTE

$4.99

$

In Stock, only 2 left!

0

44

Murray 1101098MA

COVER, MULCH, PLASTIC, BLACK

$33.99

$

In Stock, only 1 left!

0

45

Murray 7501065YP

ASSY, Height-Of-Cut, RR, 22", 7 Position (shown detached)

$60.99

$

Usually ships in 2-12 days

0

46

Murray 7501066YP

ASSY, Height-Of-Cut, LR, 22", 7 Position (shown attached)

$21.99

$

Usually ships in 2-12 days

0

47

Murray 7501062YP

ASSY, Height-Of-Cut, RF, 22", Propelled, 7 Position (shown detached)

$49.99

$

Usually ships in 2-12 days

0

48

Murray 7501061YP

ASSY, Height-Of-Cut, LF, 22", Propelled, 7 Position (shown attached)

$

$

Not available
