BTP 2265 HW (7800267) - Brute 22" Walk-Behind Mower (2008) Engine, Blade & Deck Group Parts Diagram

22" Walk-Behind Mower

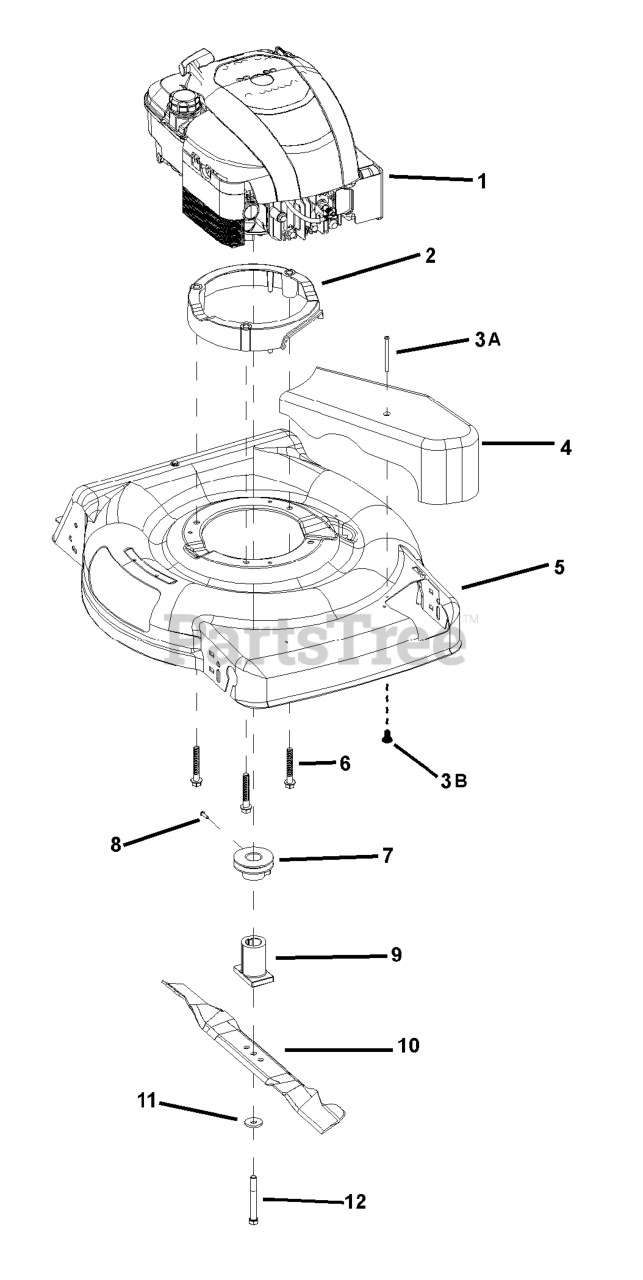

Engine, Blade & Deck Group Parts Diagram

  • Title

1

* ENGINE, B&S, 6.5GT Mod. 124T02-0650-B3

$

$

Not available

2

Murray 7101449YP

ASSY, ENGINE SPACER , 22 WBM, PROPELLED

Note: (incl. 3 bushings, p/n 7101448)

$64.99

$

Usually ships in 2-12 days

0

3A

Murray 26X304MA

SCREW, #10-24 X 2-1/2

Note: Used on early models

$4.49

$

Usually ships in 2-12 days

0

3B

Murray 7900018YP

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

Note: Used on late models & replacement covers

$4.49

$

In Stock, only 4 left!

0

4

Murray 1101596MA

COVER, BELT, PLASTIC (shown)

$37.99

$

Usually ships in 2-12 days

0

5

Murray 7300400ZMA

DECK, 22 WALK, 3-N-1

$

$

Not available

6

Murray 025X11MA

BOLT, 3/8-16 NS X 2.50"

$6.99

$

Usually ships in 2-12 days

0

7

Murray 7100763MA

PULLEY, ENGINE, 22 DECK, SS

$12.99

$

Usually ships in 2-12 days

0

8

Murray 26X303MA

SCREW, #8-11 X .63 POLY

$3.99

$

Usually ships in 2-12 days

0

9

Murray 7100740YP

HUB, BLADE, 22 DECK

$15.99

$

Usually ships in 2-12 days

0

10

Murray 7100851AYP

BLADE, 22, WALK MOWER

$19.99

$

In Stock, only 1 left!

0

11

Murray 1101989MA

WASHER, BELLVILLE, .38 ID X 1.183 OD

$5.49

$

Usually ships in 2-12 days

0

12

Murray 01X144MA

BOLT, HEX HEAD, 3/8-24 NF X 3.25

$5.49

$

In Stock, only 3 left!

0
