BT 22675 FC (7800684) - Brute 22" Walk-Behind Mower, Canada (2011) Deck Group Parts Diagram

22" Walk-Behind Mower, Canada

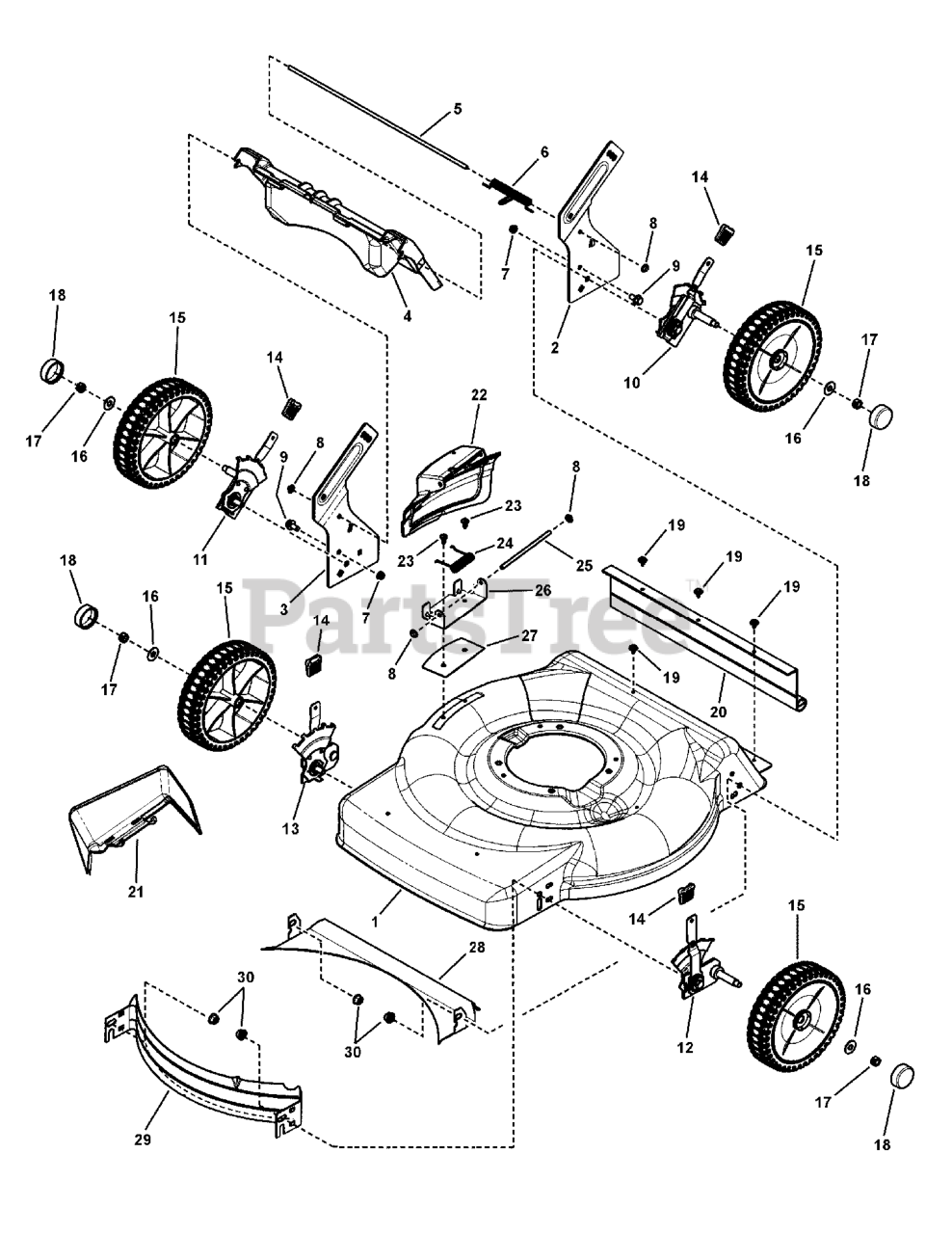

Deck Group Parts Diagram

  • Title

1

Murray 7300401ZYP

DECK, 22" Walk, Push 3-N-1

$259.99

$

In Stock, only 1 left!

0

2

Murray 7300668ZYP

BRACKET, Lower Handle, LH

$33.99

$

In Stock, only 1 left!

0

3

Murray 7300669ZYP

BRACKET, Lower Handle, RH,

$32.99

$

Usually ships in 2-12 days

0

4

Murray 7101243YP

DOOR, Rear, 22"

$51.99

$

Usually ships in 2-12 days

0

5

Murray 7101070YP

ROD, Pivot, Rear Door (1/4"x17.5")

$6.49

$

Usually ships in 2-12 days

0

6

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

$6.99

$

Usually ships in 2-12 days

0

7

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock BZ

$3.99

$

In Stock, Qty 7

0

8

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

9

Murray 7090606SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

10

Murray 7501055YP

ASSY, Height-of-Cut, 22" WBM, Push, Left Rear (9 Position)

$

$

Not available

11

Murray 7501056YP

ASSY, Height-of-Cut, 22" WBM, Push, Right Rear (9 Position)

$

$

Not available

12

Murray 7501293YP

ASSY, Height-of-Cut, 22" WBM, Push, Right Front (9 Position)

$38.99

$

Usually ships in 2-12 days

0

13

Murray 7501294YP

ASSY, Height-of-Cut, 22" WBM, Push, Left Front (9 Position)

$36.99

$

Usually ships in 2-12 days

0

14

Murray 7100633YP

GRIP, Height Latch, Black (Early Models)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

14

Murray 7103542YP

GRIP, Height Latch, P-391-ST, Yellow

$4.49

$

Usually ships in 2-12 days

0

15

Murray 7101712MA

WHEEL, 8" x 2" Idle, w/Db Tread, Brute Yellow

$39.99

$

Usually ships in 2-12 days

0

16

Murray 17X169MA

WASHER, Flat, 1" O.D. x .387 I.D.
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

17

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

18

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

19

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap - Sems

$4.99

$

In Stock, Qty 12

0

20

Murray 7103347YP

GUARD, Rear, 22" Deck Mower

$

$

Not available

21

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

Usually ships in 2-12 days

0

22

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

23

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap (Torx)

$4.49

$

In Stock, Qty 20+

0

24

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

25

Murray 7101067YP

ROD, Chute Pivot - 1/4" dia. x 5.55"

$6.99

$

Usually ships in 2-12 days

0

26

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

27

Murray 7300856ZMA

PLATE, Mulch 22" RB Scotts

$6.49

$

Usually ships in 2-12 days

0

28

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

29

Murray 7300440ZMA

BAFFLE, Front, 22" Walk Mower
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

30

Murray 7900053MA

NUT, 3/8-16, Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0
