BT 22675 (7800881) - Brute 22" Walk-Behind Mower (2012) Engine Group (7502907) Parts Diagram

22" Walk-Behind Mower

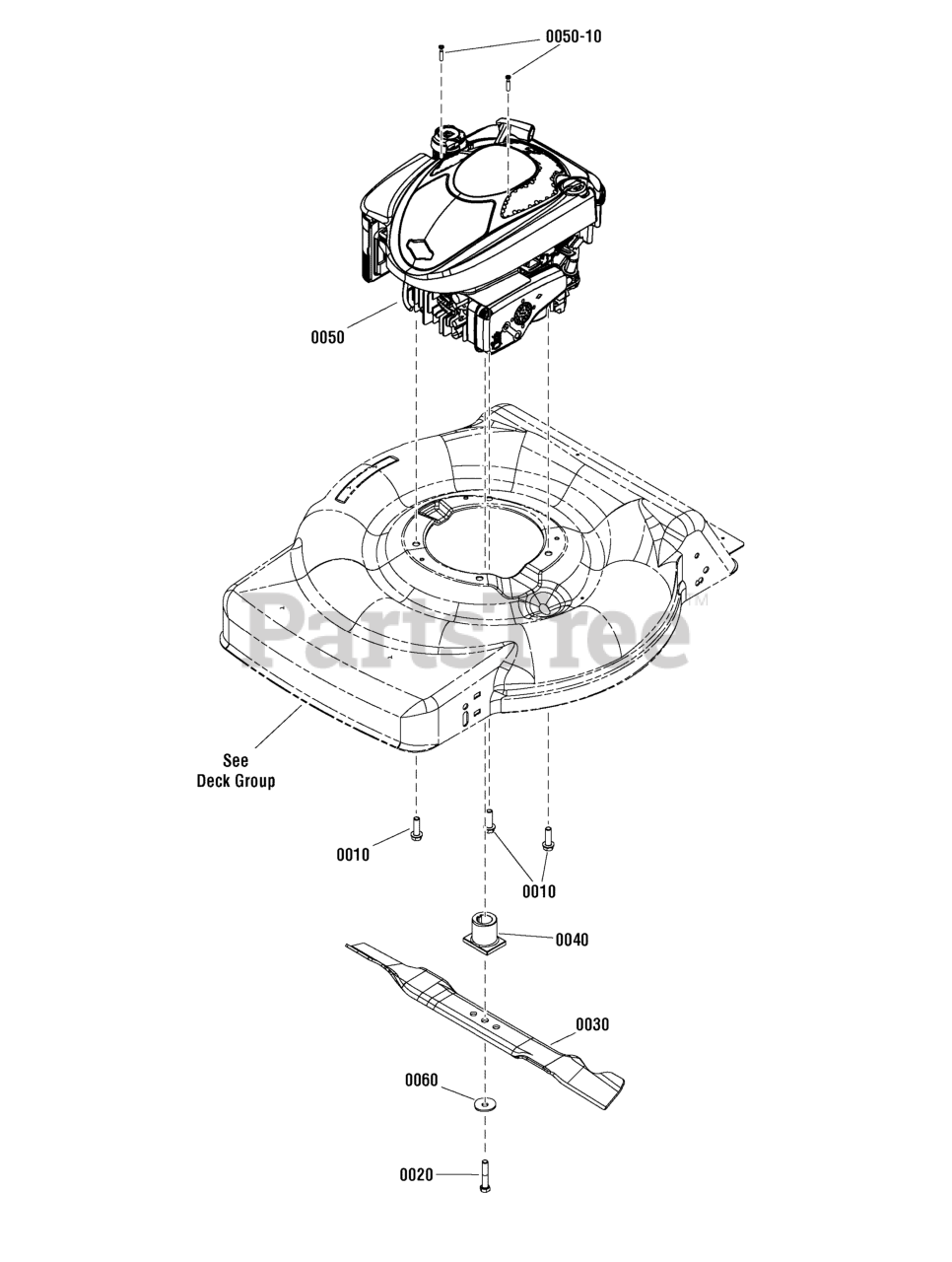

Engine Group (7502907) Parts Diagram

  • Title
0010

Murray 7090324SM

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0020

Murray 7090824YP

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5

$4.99

$

In Stock, Qty 9

0

0030

Murray 7100851AYP

BLADE, 22", Walk Mower

$19.99

$

In Stock, only 1 left!

0

0040

Murray 7100862YP

HUB, Blade, 22" Push

$8.49

$

Usually ships in 2-12 days

0

0050

Murray 126L02-4675-F3

* ENGINE, 6.75TP Briggs & Stratton

Note: (Engine Model: 126L02-4675-F3)

$

$

Currently unavailable

0050-20

Murray 691138

SCREW, Pan HD Cross Recess, Tapping

$3.99

$

In Stock, Qty 18

0

0060

Murray 1101989MA

WASHER, .38" ID x 1.183 OD Bellville

$5.49

$

Usually ships in 2-12 days

0
