BT 22675 (7800881) - Brute 22" Walk-Behind Mower (2012) Deck Group (7502451) Parts Diagram

22" Walk-Behind Mower

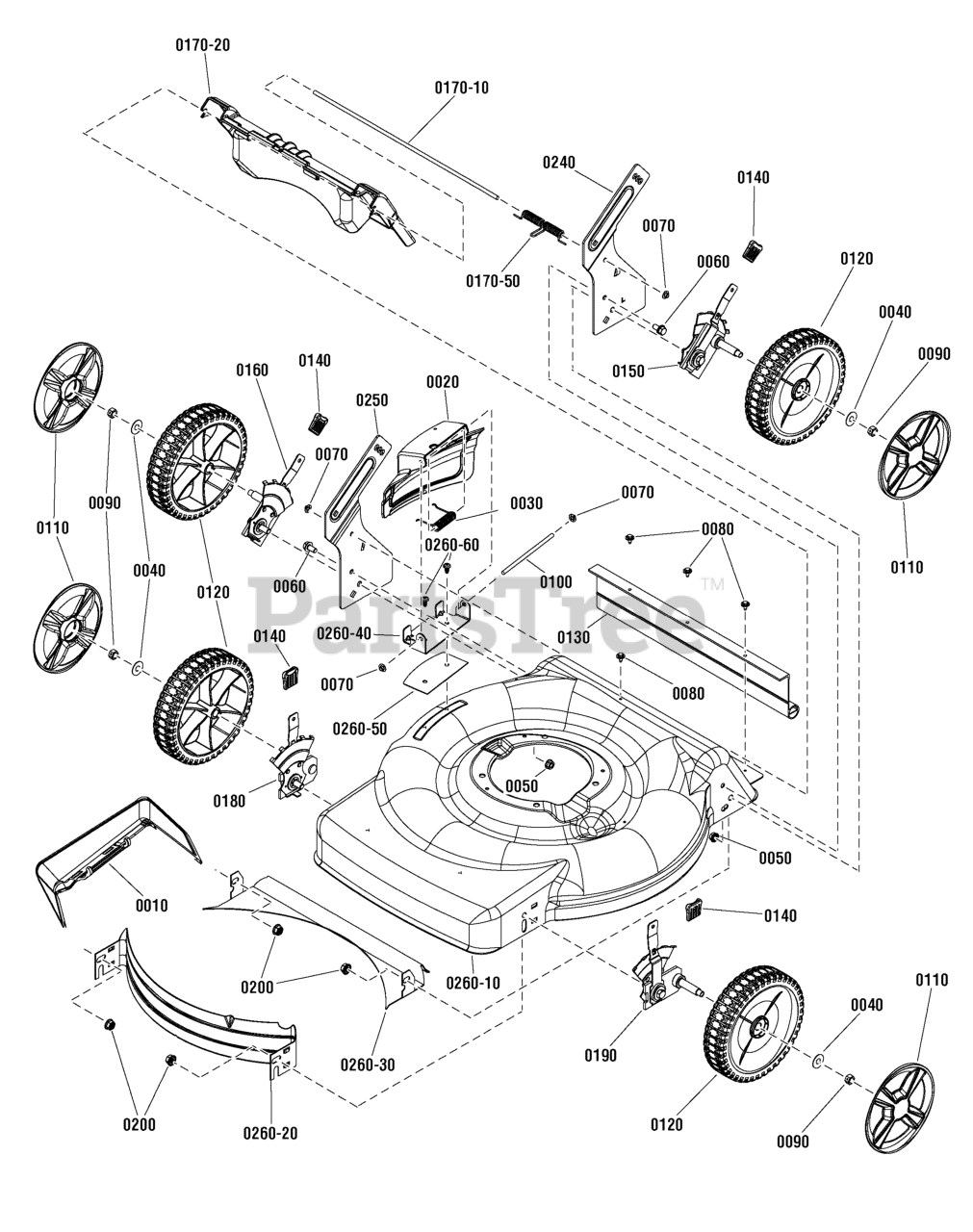

Deck Group (7502451) Parts Diagram

  • Title

0010

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

Usually ships in 2-12 days

0

0020

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

0030

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

0040

Murray 17X169MA

WASHER, Flat, 3/8
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

0050

Murray 7090585MA

NUT, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 7

0

0060

Murray 7090606SM

BOLT, Hex Flange, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

0070

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

0090

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0100

Murray 7101067YP

ROD, Pivot

$6.99

$

Usually ships in 2-12 days

0

0110

Murray 7101351MA

HUBCAP

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 7101712MA

WHEEL, 8" x 2" Idle, w/Db Tread, Brute Yellow

$39.99

$

Usually ships in 2-12 days

0

0130

Murray 7103347YP

GUARD, Rear, 22" Deck Mower

$

$

Not available

0140

Murray 7103542YP

GRIP, Height Latch, P-391-St, Yellow

$4.49

$

Usually ships in 2-12 days

0

0150

Murray 7501055YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Left Rear

$

$

Not available

0160

Murray 7501056YP

ASSEMBLY, Height-Of-Cut, 22", 7 Position, Right Rear

$

$

Not available

0170-10

Murray 7101070YP

ROD, Pivot, Rear Door

$6.49

$

Usually ships in 2-12 days

0

0170-20

Murray 7101243YP

DOOR, Rear Discharge

$51.99

$

Usually ships in 2-12 days

0

0170-50

Murray 7101461YP

SPRING, Torsion, Rear Door

$6.99

$

Usually ships in 2-12 days

0

0180

Murray 7501293YP

ASSEMBLY, Height-of-Cut, 22" WBM, Right Front

$38.99

$

Usually ships in 2-12 days

0

0190

Murray 7501294YP

ASSEMBLY, Height-of-Cut, 22" WBM, Left Front

$36.99

$

Usually ships in 2-12 days

0

0200

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock

$3.99

$

Usually ships in 2-12 days

0

0240

Murray 7300668ZYP

BRACKET, Lower Handle, LH

$33.99

$

In Stock, only 1 left!

0

0250

Murray 7300669ZYP

BRACKET, Lower Handle, RH

$32.99

$

Usually ships in 2-12 days

0

0260-10

Murray 7300401ZYP

DECK, 22" Walk, Push 3-N-1

$259.99

$

In Stock, only 1 left!

0

0260-20

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

0260-30.

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

Usually ships in 2-12 days

0

0260-40

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

0260-50

Murray 7300856ZMA

PLATE, Mulch

$6.49

$

Usually ships in 2-12 days

0

0260-60

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0
