BT 2265 FC (7800470) - Brute 22" Walk-Behind Mower, Canada (2009) Handles & Controls Parts Diagram

22" Walk-Behind Mower, Canada

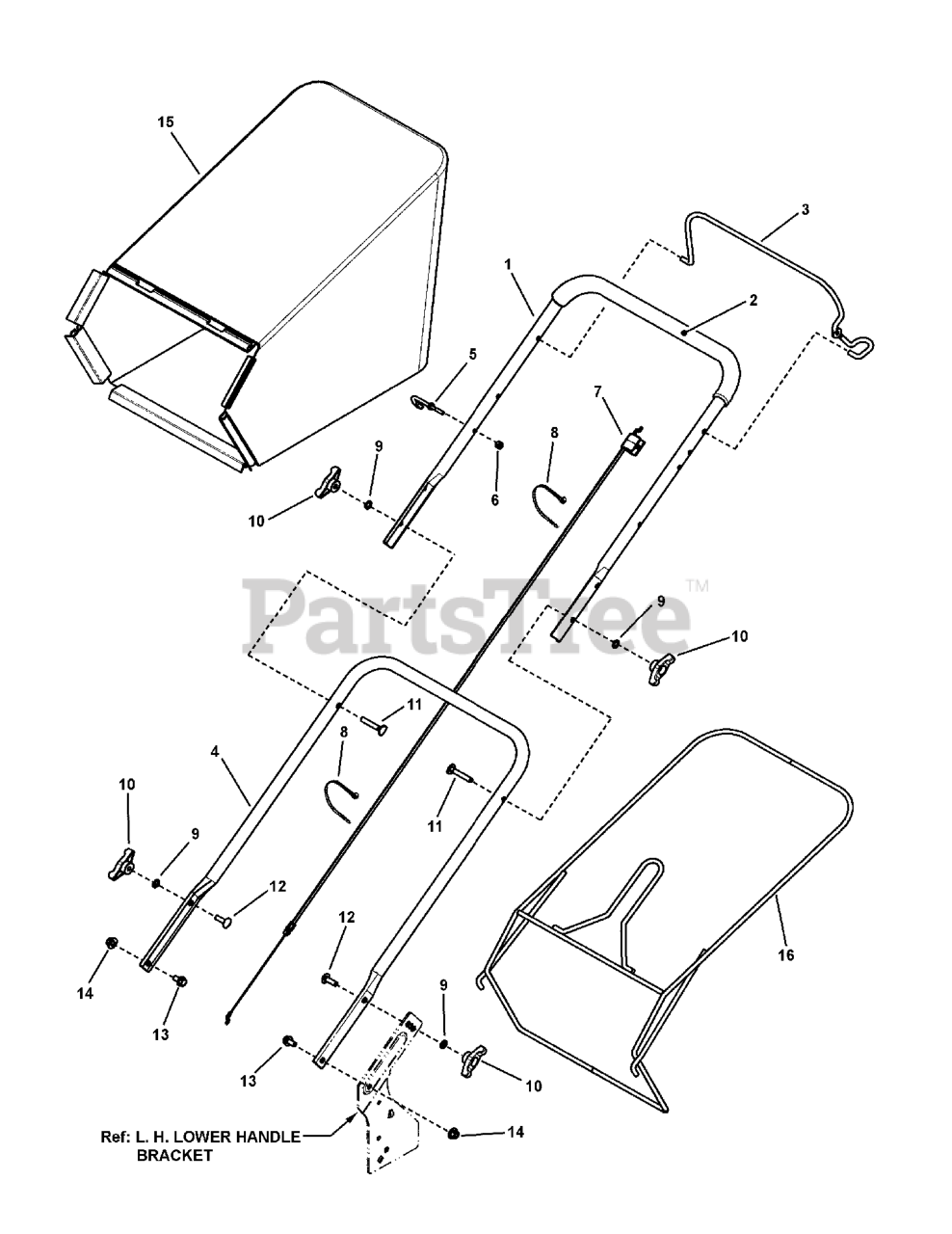

Handles & Controls Parts Diagram

  • Title

1

Murray 7300705AMA

HANDLE, Upper

$51.99

$

Usually ships in 2-12 days

0

2

Murray 7023810YP

FOAM GRIP, 18.75" (on upper handle)

$8.49

$

Usually ships in 2-12 days

0

3

Murray 7101675AYP

BAIL, OPC Push

$46.99

$

Usually ships in 2-12 days

0

4

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

5

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

6

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 7103030YP

CABLE, Bail (48.38" overall length)

$31.99

$

Usually ships in 2-12 days

0

8

Murray 7024649YP

WIRE TIE, 11" Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

9

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

10

Murray 071294MA

KNOB, 5/16-18 Wing (Black)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

11

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

12

Murray 7091714YP

BOLT, 5/16-18 x 1" Round Head Square Neck Carriage, GR 5 YZ
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

13

Murray 7091811SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

14

Murray 7090951SM

NUT, 5/16-18 Large Head Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

15

Murray 7102573YP

GRASS BAG, 22" Rear Discharge

$128.99

$

Usually ships in 2-12 days

0

16

Murray 7101230AYP

FRAME, Bag, 22" WBM

$222.99

$

Usually ships in 2-12 days

0
